| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |

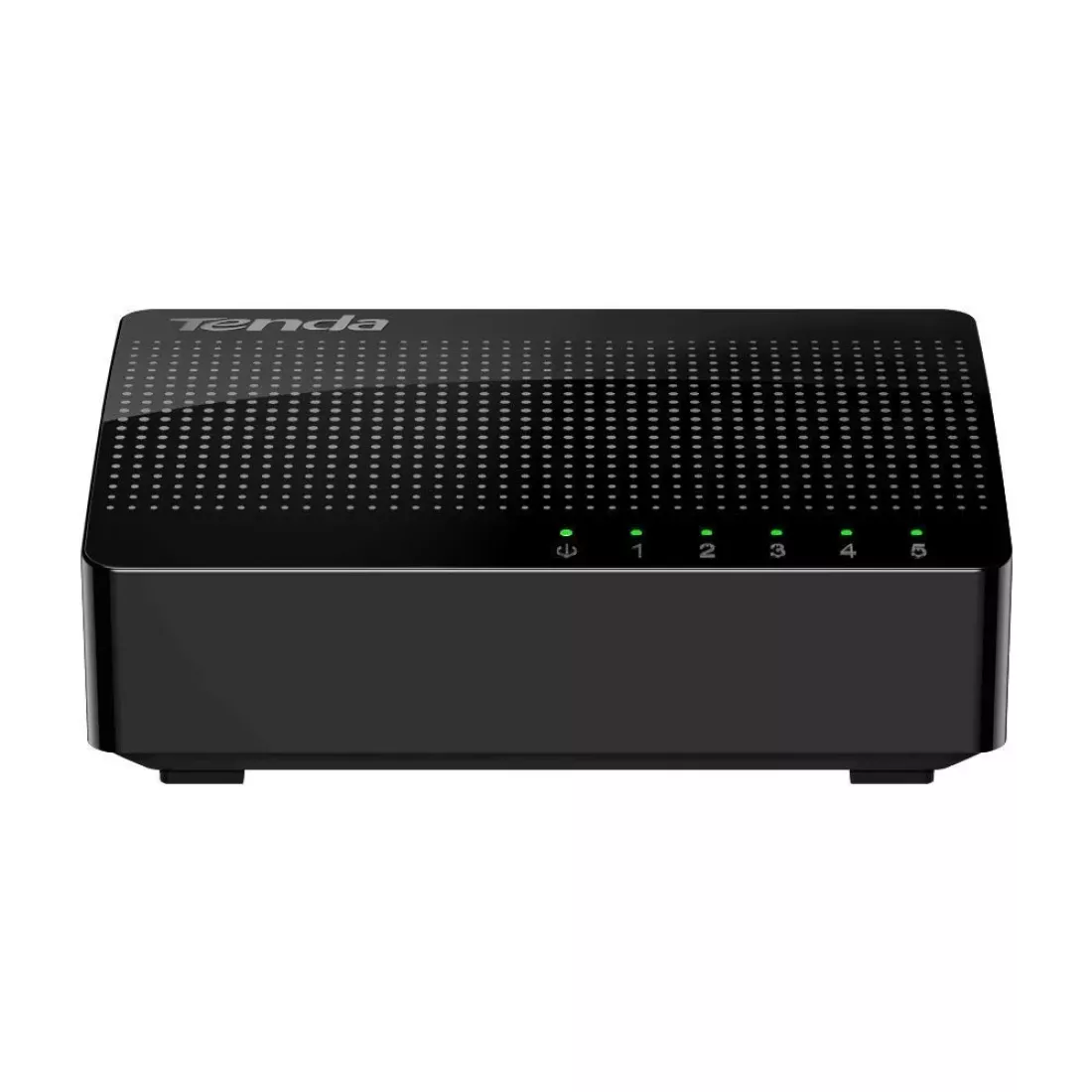

| LED Indicator | One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device |

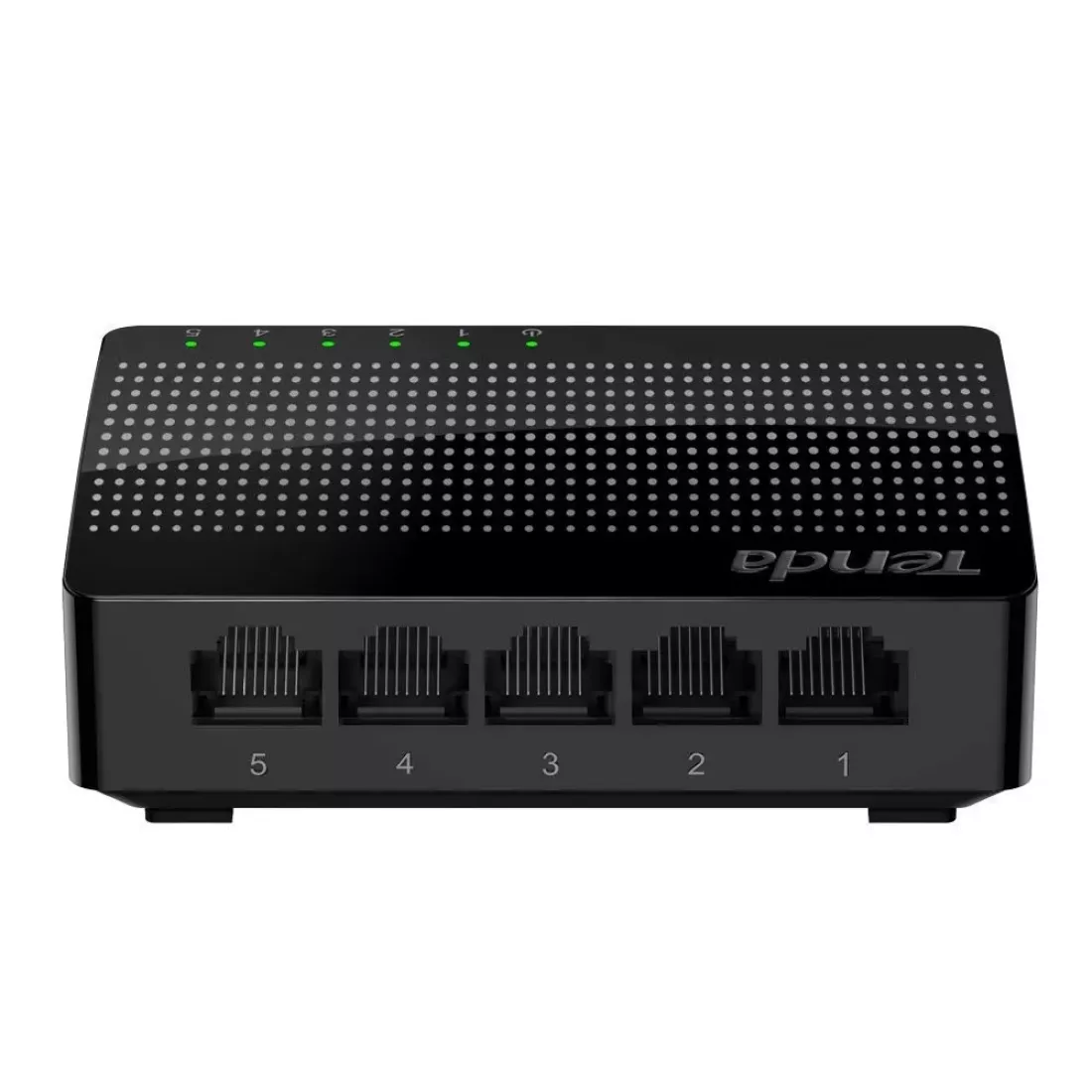

| Interfaces | 5*10/100/1000Base-T Ethernet ports |
| Transmission Media | Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better |
| Dimensions | 82mm x 52mm x 22mm (L x W x H) |
| Material | Plastic |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Buffer | 1 Mb |
| MAC Address Table | 2K |
| Jumbo Frame | 15K |
| Power | Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A (External Power Adapter) |
| Power Consumption | Max: |
| Mounting | Desktop mounting: support
Wall mounting: support
Rack mounting: non-support |
| Environment | Operating temperature: 0°C - 45°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing |
| MAC Address Learning | Auto-learning and Auto-Updating |
| Functions | Plug-and-play |
