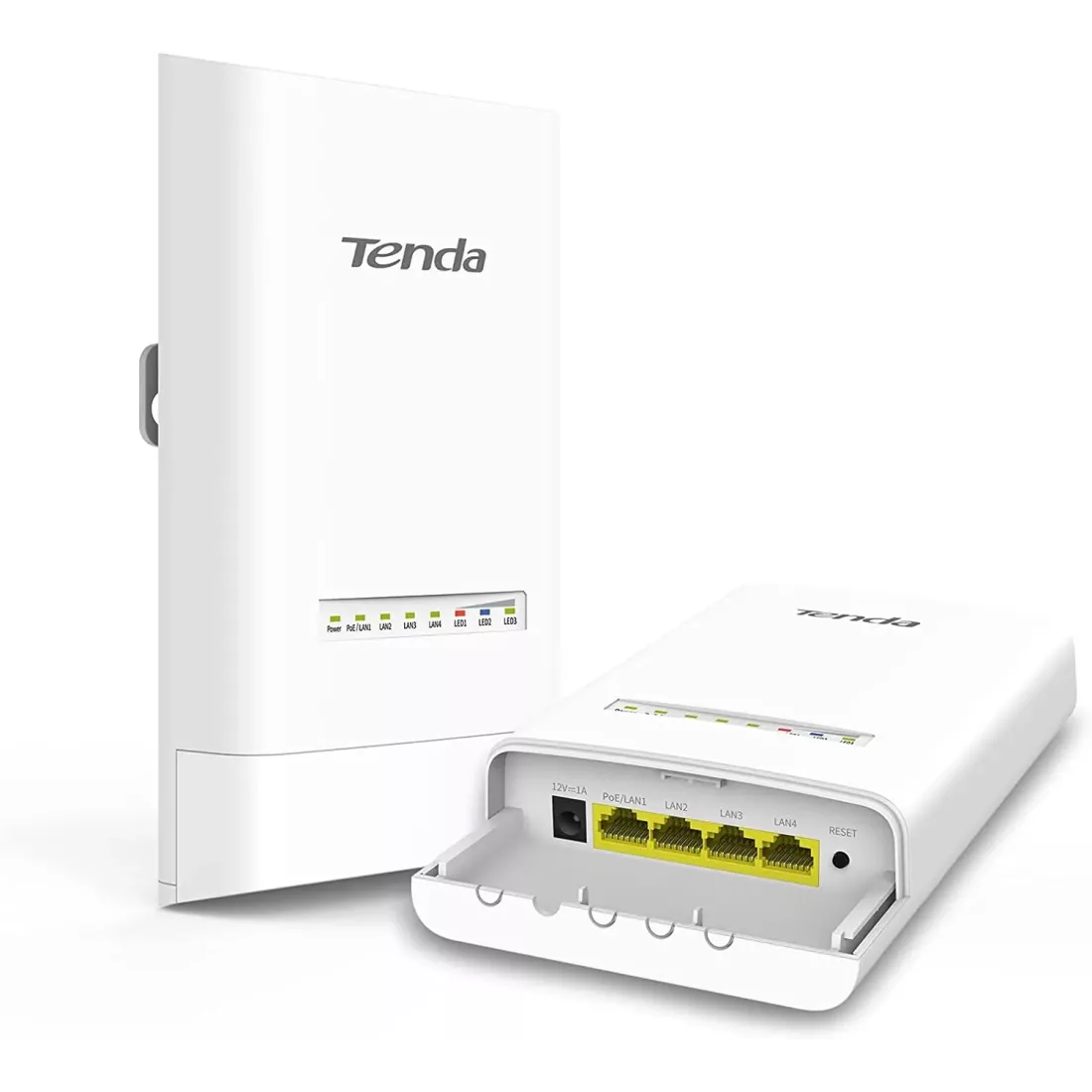

| Model | OS3 |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Private ISP access or CCTV Surveillance |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | TD-MAX |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 4 × 10/100 LAN Port |
| Antenna Gain | 12dBi |
| Antenna Beamwidth | Horizontal: 30°Vertical: 30°Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED Indicator | Power, PoE/LAN1, LAN2, LAN3, LAN4, LED1, LED2, LED3 |
| Power Method | 12V 1A Passive PoE12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over Ethernet via PoE/LAN (+4,5 pins, -7,8 pins) up to 60 metersVoltage range: 9-13V DC |
| Reception Sensitivity | 11a 6Mbps: -90dBm ±1.5dBm11n MCS0 HT20: -70dBm ±1.5dBm11n MCS7 HT20: -70dBm ±1.5dBm11ac MCS9 HT80: -59dBm ±1.5dBm |
| Operating Mode | AP/Station/WISP/Repeater/Router |
