| Model | O3 |
| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Private ISP access or CCTV Surveillance |
| Frequency Range | 2.4GHz |
| Compliant Standards | IEEE 802.11b/g/n |
| Maximum Wireless Rate | 150Mbps |

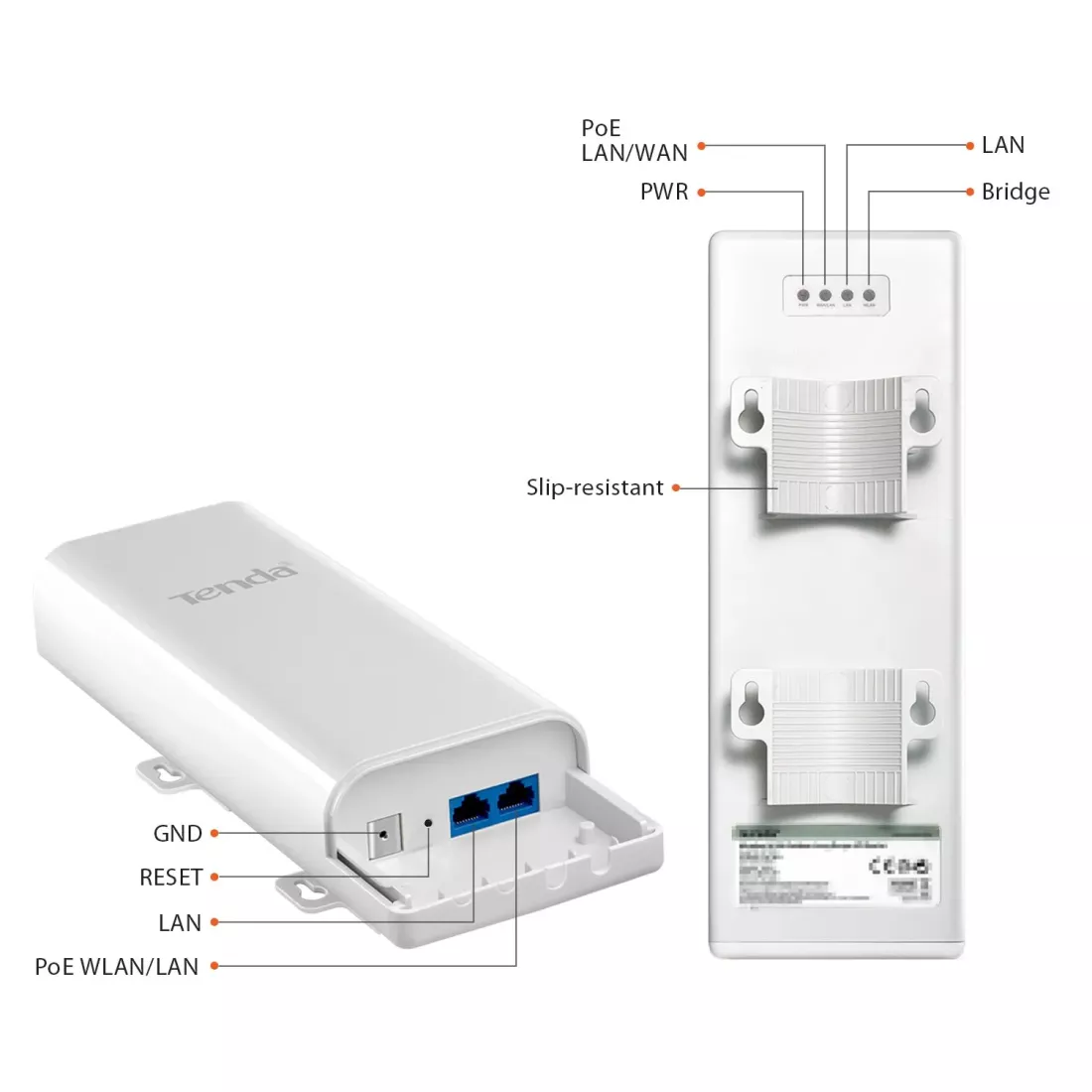

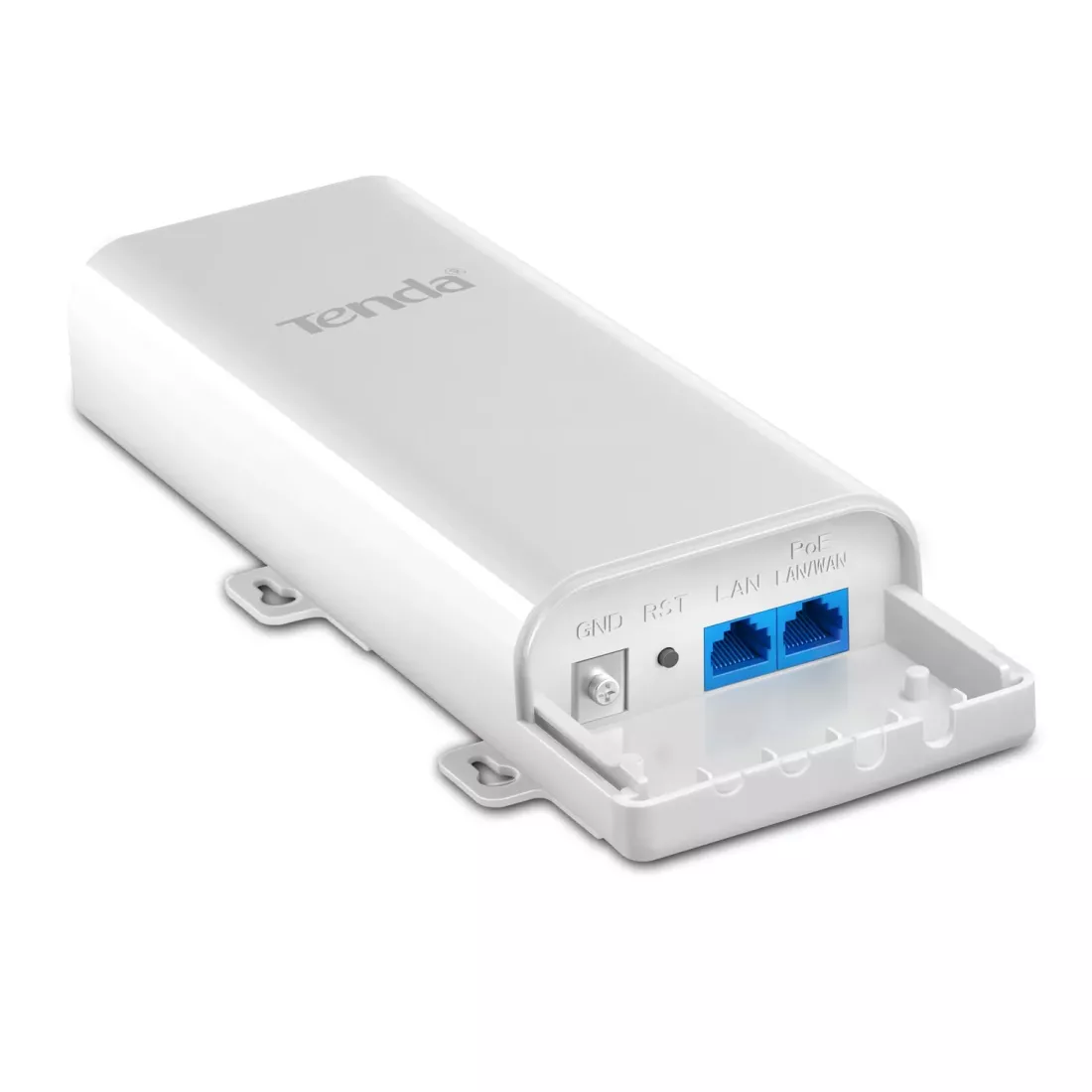

| Interfaces | 2 × 10/100Mbps Ethernet Ports |
| Antenna Polarization | Horizontal Polarization |
| Antenna Gain | 12dBi |
| Antenna Beamwidth | Horizontal: 60°Vertical: 30° |
| GND | 1 × GND |
| Reset Button | 1 × Reset Button |
| Power Consumption | 4.3W |
| Waterproof Level | IP65 |
| LED Indicator | PoE/LAN, LED1, LED2, LED3 |
| Power Method | 12V 1A Passive PoE |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over Ethernet via PoE/LAN (+4,5 pins, -7,8 pins)Voltage range: 9-13.8V DC |
| Reception Sensitivity | 11b 1Mbps: -92dBm ±1.5dBm11n MCS0: -92dBm ±1.5dBm11n MCS7: -72dBm ±1.5dBm |
| TDMA | / |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
