| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| LED Indicator | Power, Link/Act |

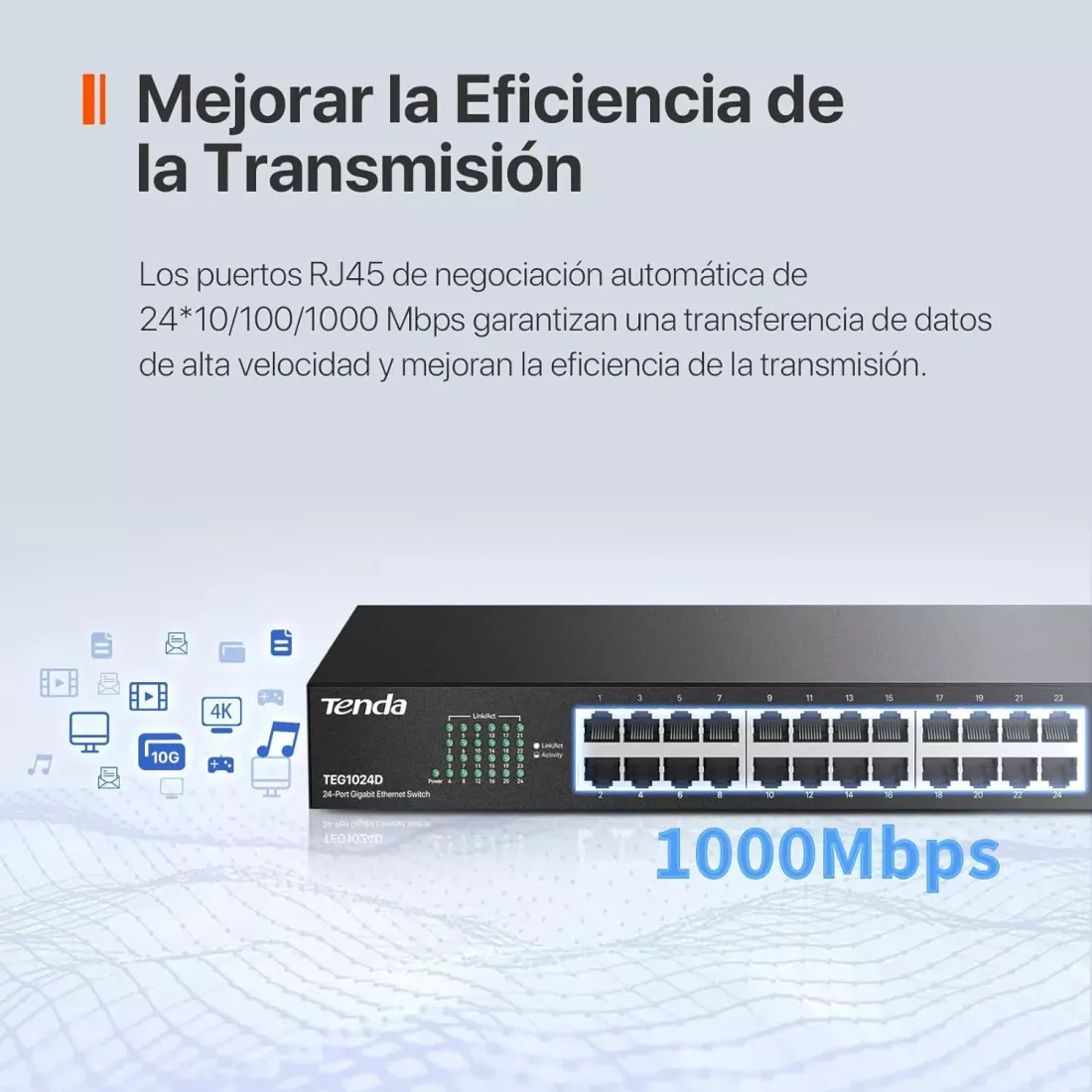

| Interfaces | (24) 1GE RJ45 ports |
| Transmission Media | Recommended: CAT5/5e UTP or better |
| Dimensions | 440mm x 120mm x 44mm |
| Material | Metal |
| Level of Protection | Port: 6 KVPower: 4 KV |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 48 Gbps |
| Forwarding Rate | 35.7 Mpps |
| Buffer | 4 Mb |
| MAC Address Table | 8K |
| Power Method | 100-240V AC 50/60Hz |
| Power Consumption | Max: |
| Mounting | Rack mountingDesktop mountingWall mounting |
| Environment | Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-learning and Auto-Updating |
