| CPU | AMD Socket AM4: Supports Ryzen™ 5000, 4000G, 3000, 2000, 1000 Series, and Athlon™ with Radeon™ Vega Graphics |
| Chipset | AMD B450 |
| Memory | - 4 x DDR4 DIMM sockets, up to 128 GB
- DDR4 2933/2667/2400/2133 MT/s
- Dual channel, ECC/non-ECC, XMP supported |
| Graphics | Integrated Graphics (CPU dependent)
- 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.2)
- Max shared memory: 16 GB |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio
Support for S/PDIF Out |
| LAN | Realtek® GbE LAN (1 Gbps) |
| PCIe Slots | - 1 x PCIe x16 (Gen 3.0)
- 1 x PCIe x16 (x1 mode)
- 1 x PCIe x1 (Gen 2.0) |
| Storage | - 1 x M.2 (SATA/PCIe 3.0 x4/x2, 22110/2280/2260/2242)
- 4 x SATA 6Gb/s
- RAID 0, 1, 10 support |
| USB Ports | - 4 x USB 3.1 Gen 1 (rear)
- 2 x USB 3.1 Gen 1 (internal header)
- 4 x USB 2.0 (rear)
- 2 x USB 2.0 (internal header) |
| Internal Connectors | ATX power (24-pin, 8-pin), CPU/system fan headers,
RGB/Addressable LED headers, M.2, SATA,
front panel/audio, S/PDIF, USB 3.1/2.0 headers,
TPM, serial, Clear CMOS jumper |

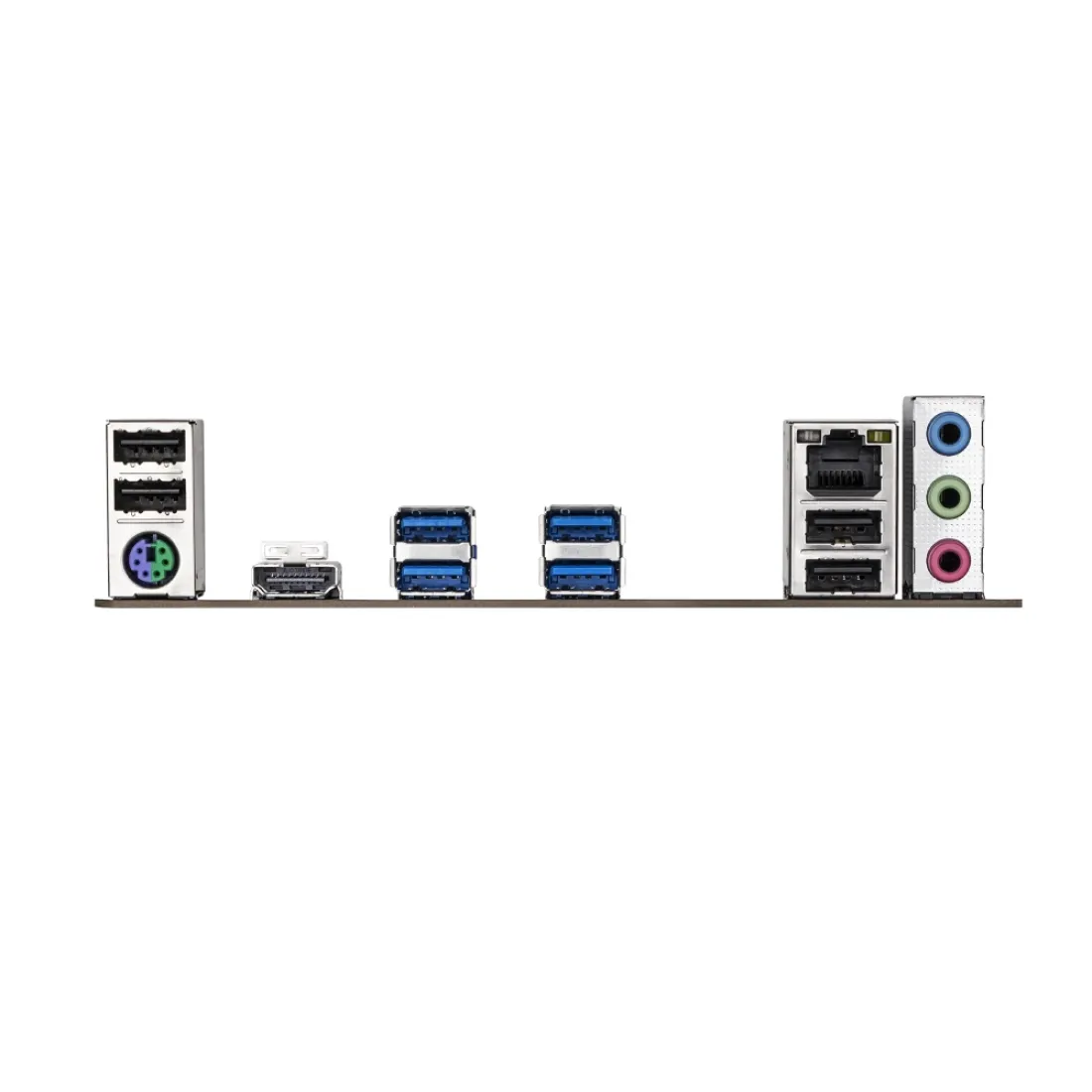

| Back Panel | PS/2, HDMI, 4 x USB 3.1 Gen 1,
4 x USB 2.0, RJ-45, 3 x Audio jacks |
