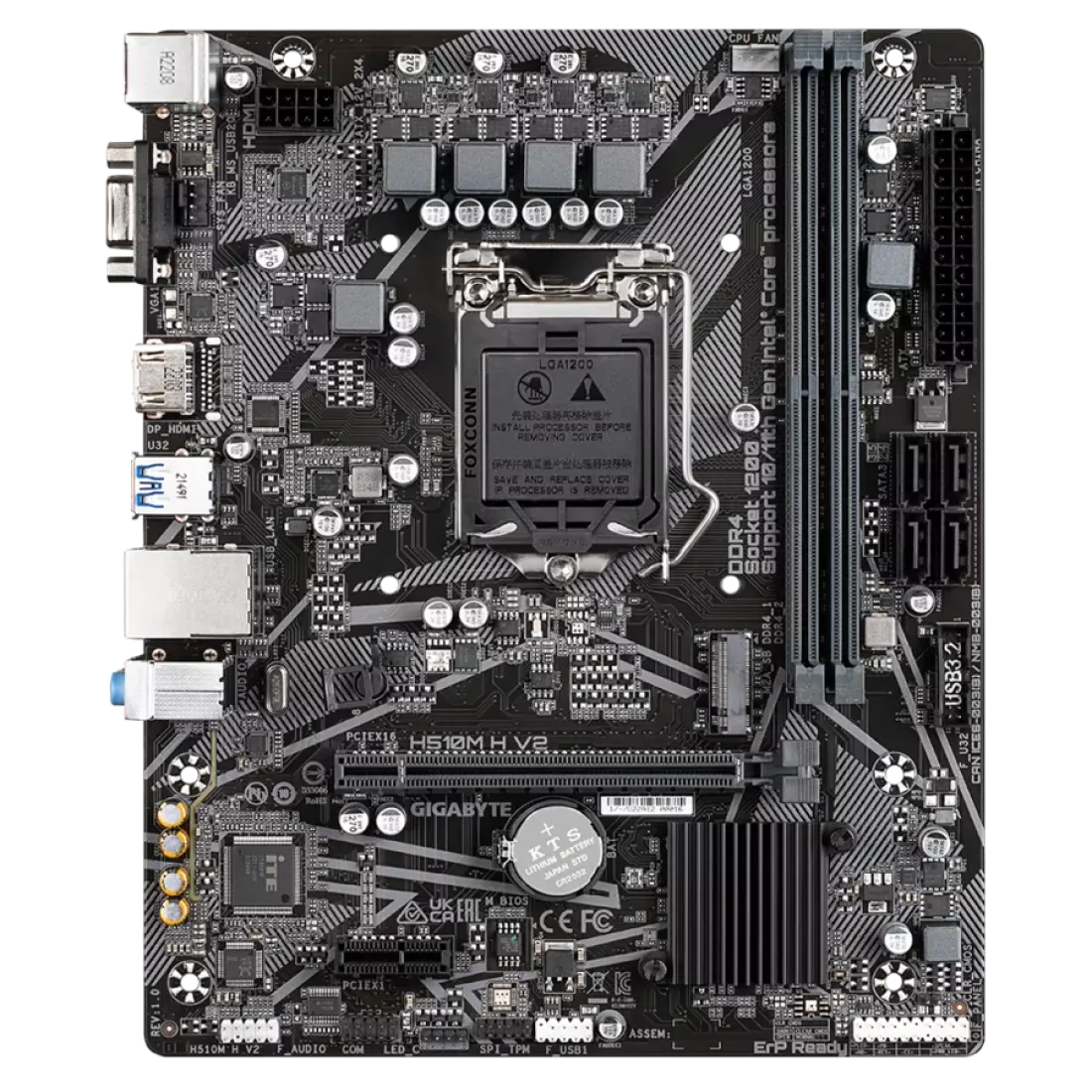

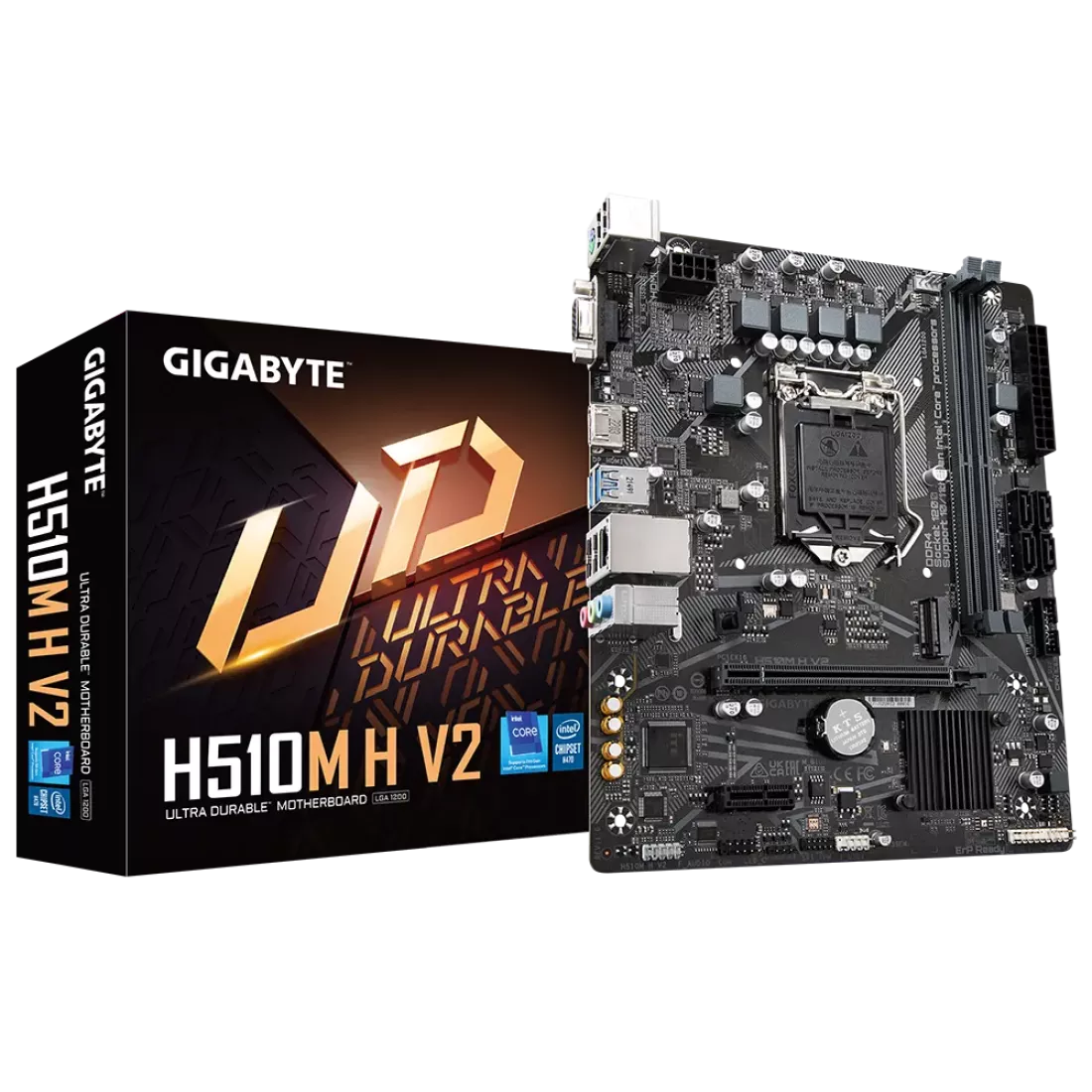

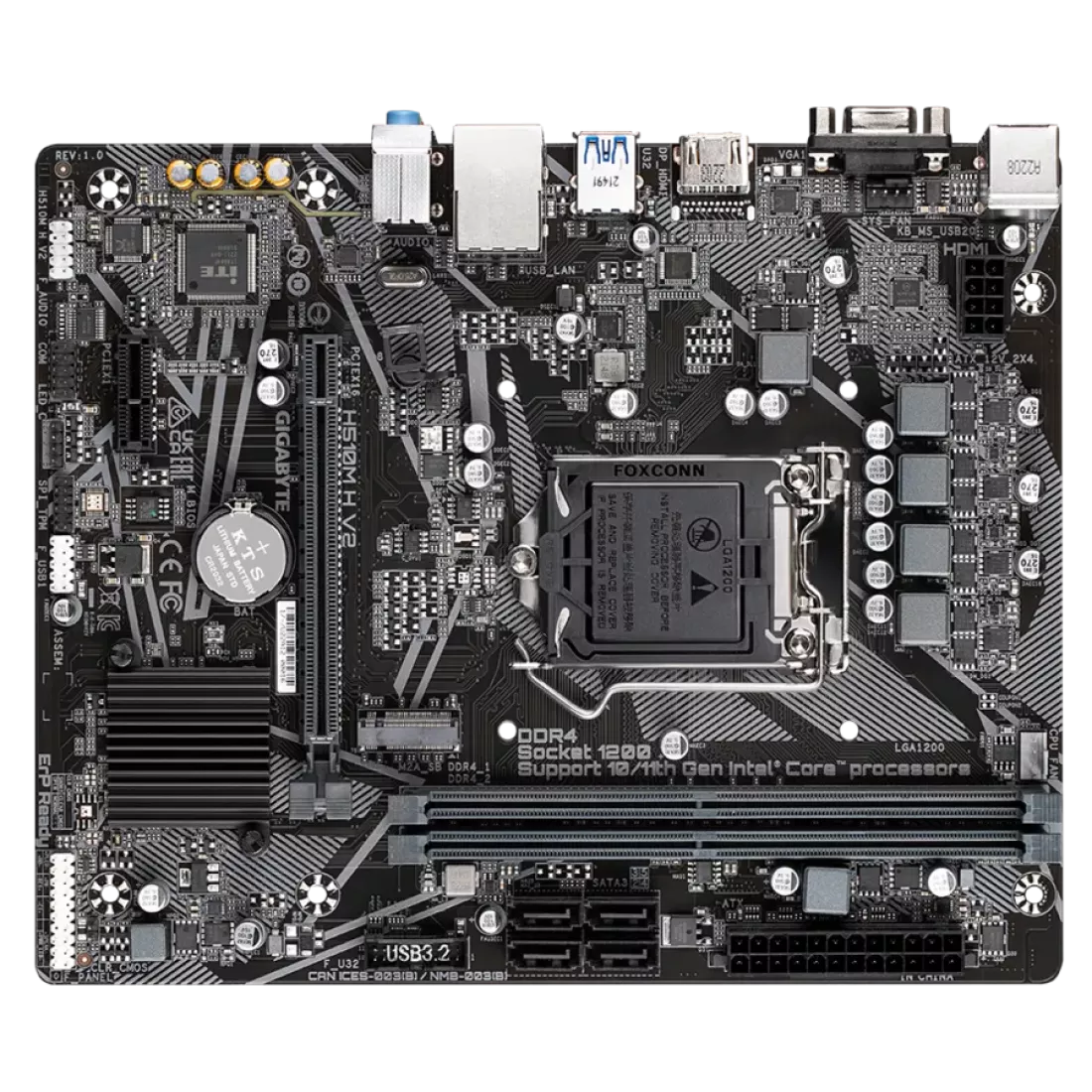

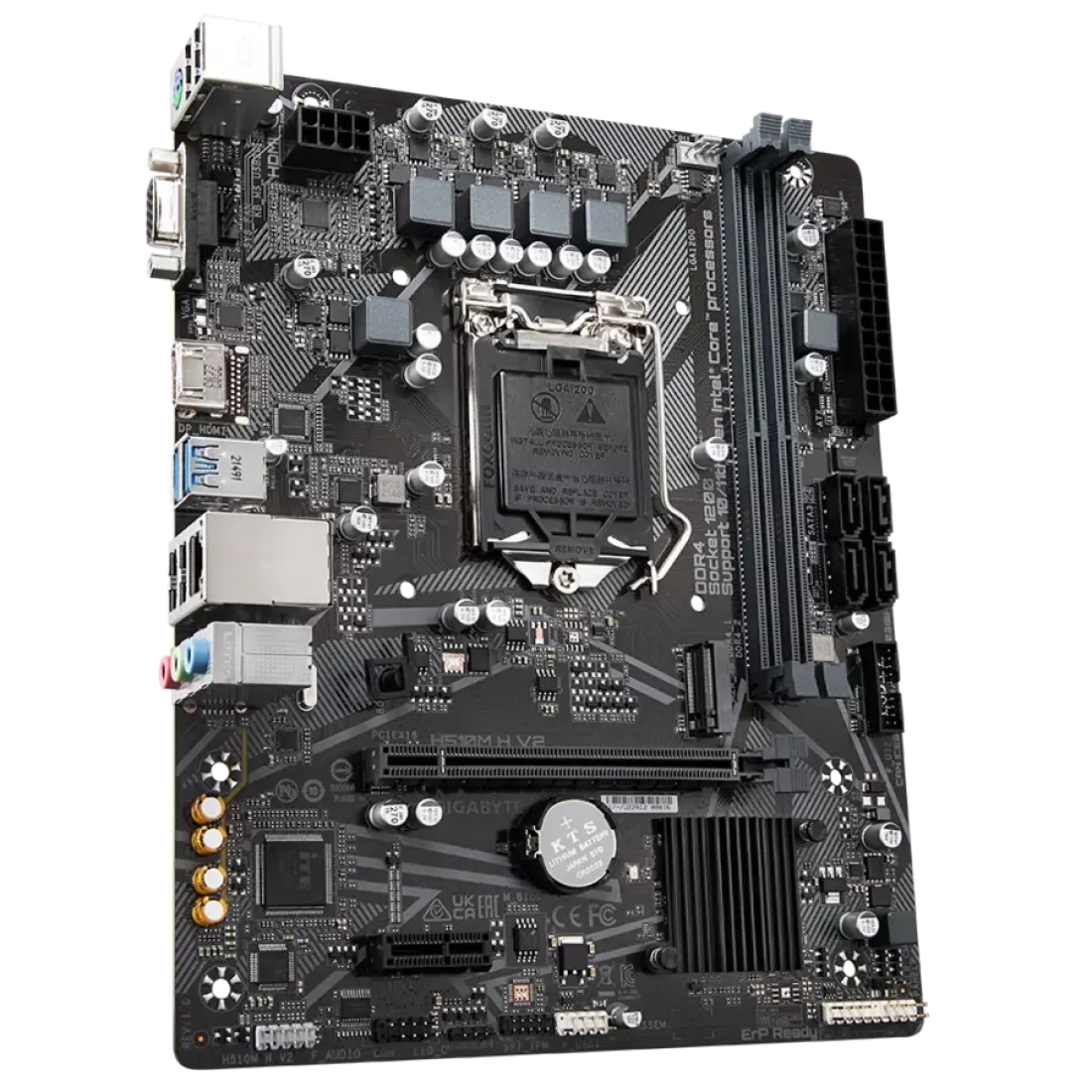

| Model | Gigabyte H510M H V2 |
| CPU Support | 10th and 11th Gen Intel® Core™ i9/i7/i5/i3, Pentium® Gold, Celeron® Processors |
| Socket | LGA 1200 |
| Chipset | Intel H510 Express |
| Memory Support | 2 x DDR4 DIMM slots, up to 64 GB, DDR4 3200/2933/2666/2400/2133 MHz (11th Gen supports up to 3200 MHz) |

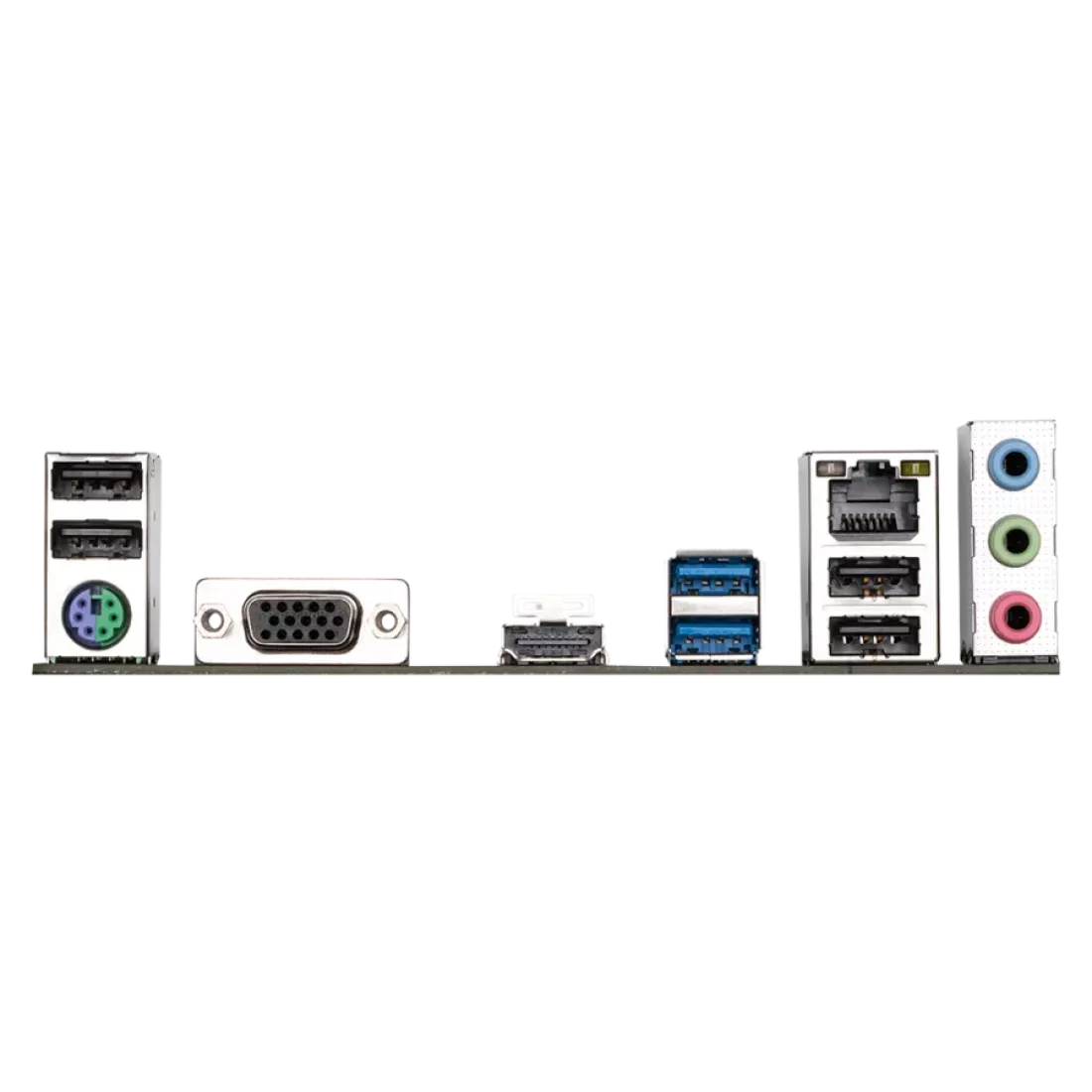

| Graphics Interface | 1 x HDMI, 1 x D-Sub (Graphics output depends on CPU) |
| Expansion Slots | 1 x PCIe x16, 2 x PCIe x1 |
| Storage | 1 x M.2 slot (PCIe/SATA), 4 x SATA 6Gb/s |
| Audio | Realtek ALC887, 7.1-Channel High Definition Audio |
| LAN | Realtek GbE LAN |
| USB Ports | 6 x USB 2.0, 4 x USB 3.2 Gen 1 |
| Form Factor | Micro-ATX |
