| CPU | AMD Socket AM4, support for:
- AMD Ryzen™ 5000 G-Series Processors
- AMD Ryzen™ 5000 Series Processors
- AMD Ryzen™ 4000 G-Series Processors
- AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| Memory | 2 x DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM)
Supports DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Dual channel architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Support for Extreme Memory Profile (XMP) |
| Onboard Graphics | Integrated Graphics Processor:
- 1 x D-Sub port (max resolution 1920x1200@60 Hz)
- 1 x HDMI port (max resolution 4096x2160@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio
2/4/5.1/7.1-channel support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Storage Interface | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280, supports SATA & PCIe 3.0 x4/x2 SSDs)
Chipset:
- 4 x SATA 6Gb/s connectors |

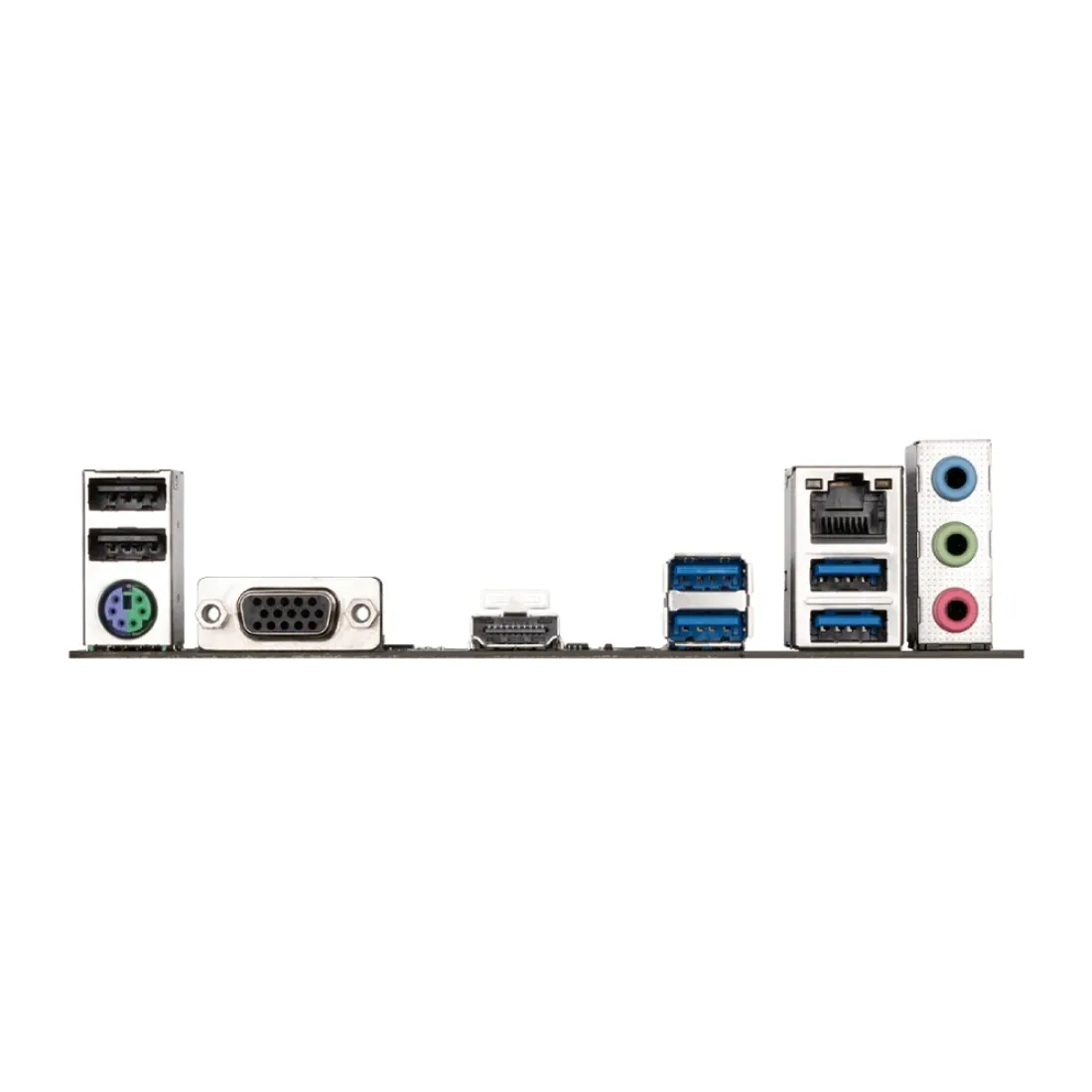

| USB | CPU:
- 4 x USB 3.2 Gen 1 ports (back panel)
Chipset:
- 2 x USB 3.2 Gen 1 ports (internal header)
- 6 x USB 2.0/1.1 ports (2 back panel, 4 internal headers) |

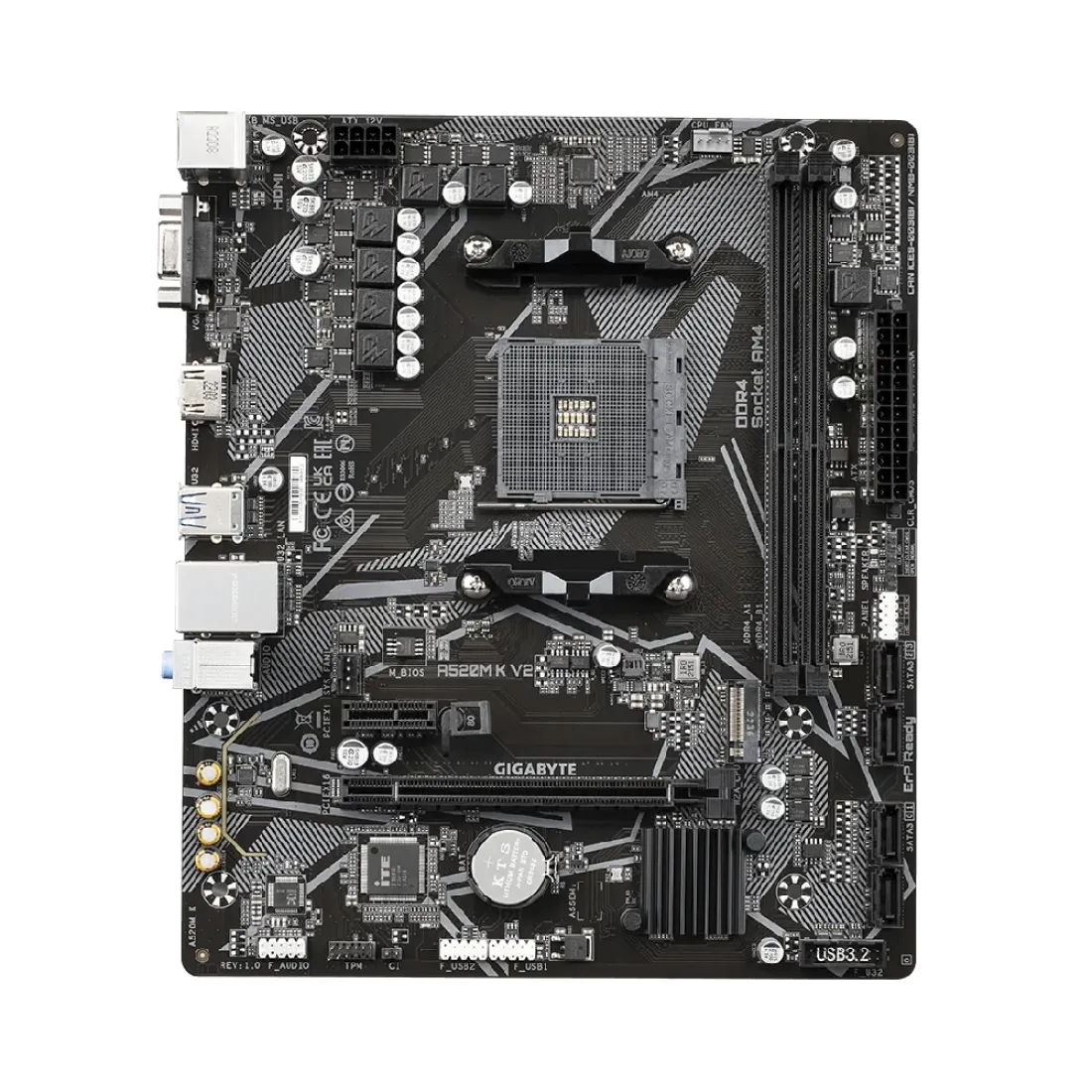

| Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header |
