| Chipset | INTEL H470 |
| CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support | 2933/2666/2400/2133 MHz
Supports 1R 2133/2666/2933 MHz for Intel® Core™ i9/Core™ i7 CPU
Supports 1R 2133/2666 MHz for Intel® Core™ i5/Core™ i3/Pentium® Gold and Celeron® CPU |
| Onboard Graphics | 1x HDMI™ (HDMI™ 1.4, max resolution 4K 30Hz)
1x VGA (max resolution 2048x1536 @50Hz, 1920x1200 @60Hz) |
| Slots | 1x PCI-E x16 slot
1x PCI-E x1 slot |
| Storage | 1x M.2 (PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices)
4x SATA 6G |

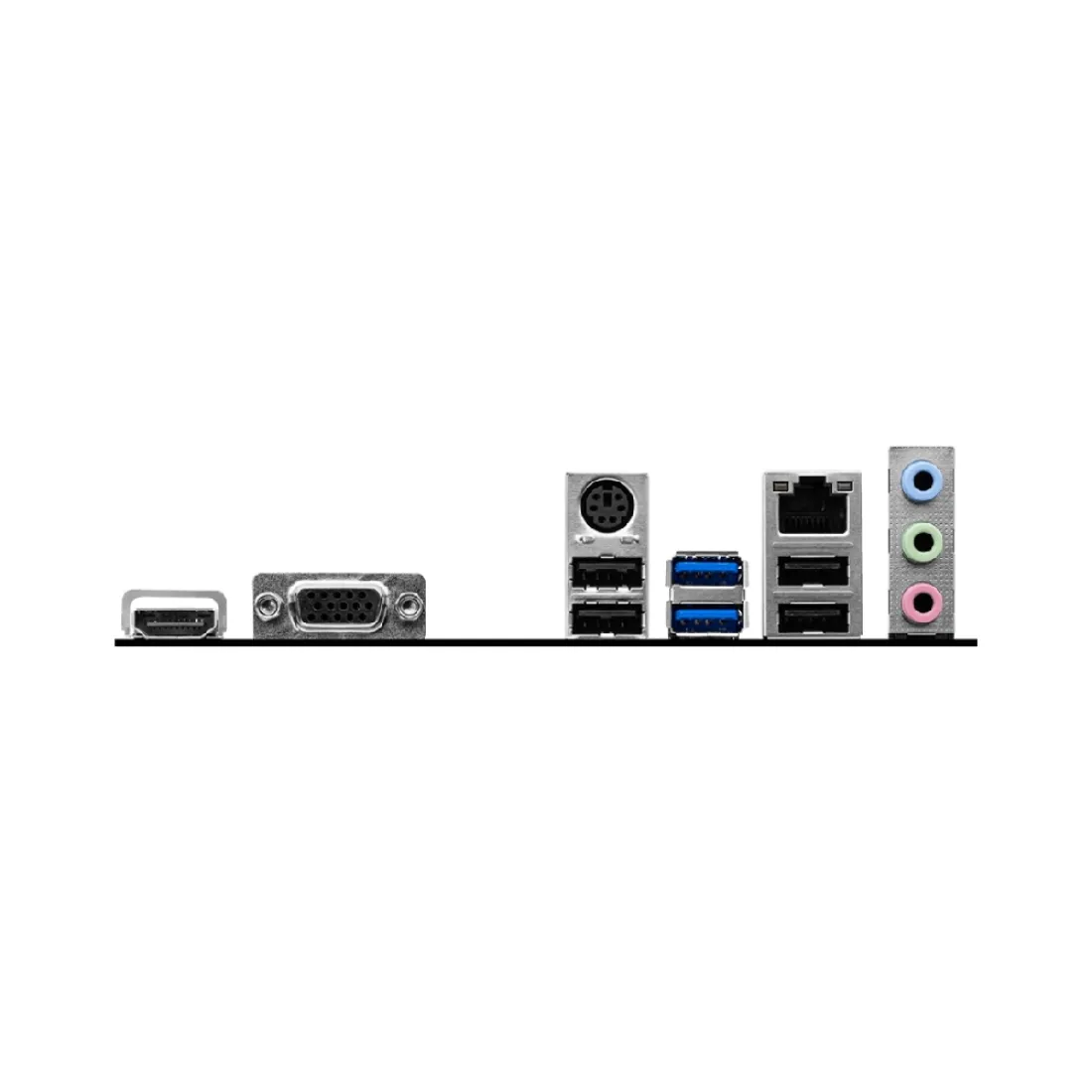

| USB | 4x USB 2.0 (Rear)
4x USB 2.0 (Front) |
| LAN | Realtek® 8111H Gigabit LAN |
| Internal IO | 1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan |
