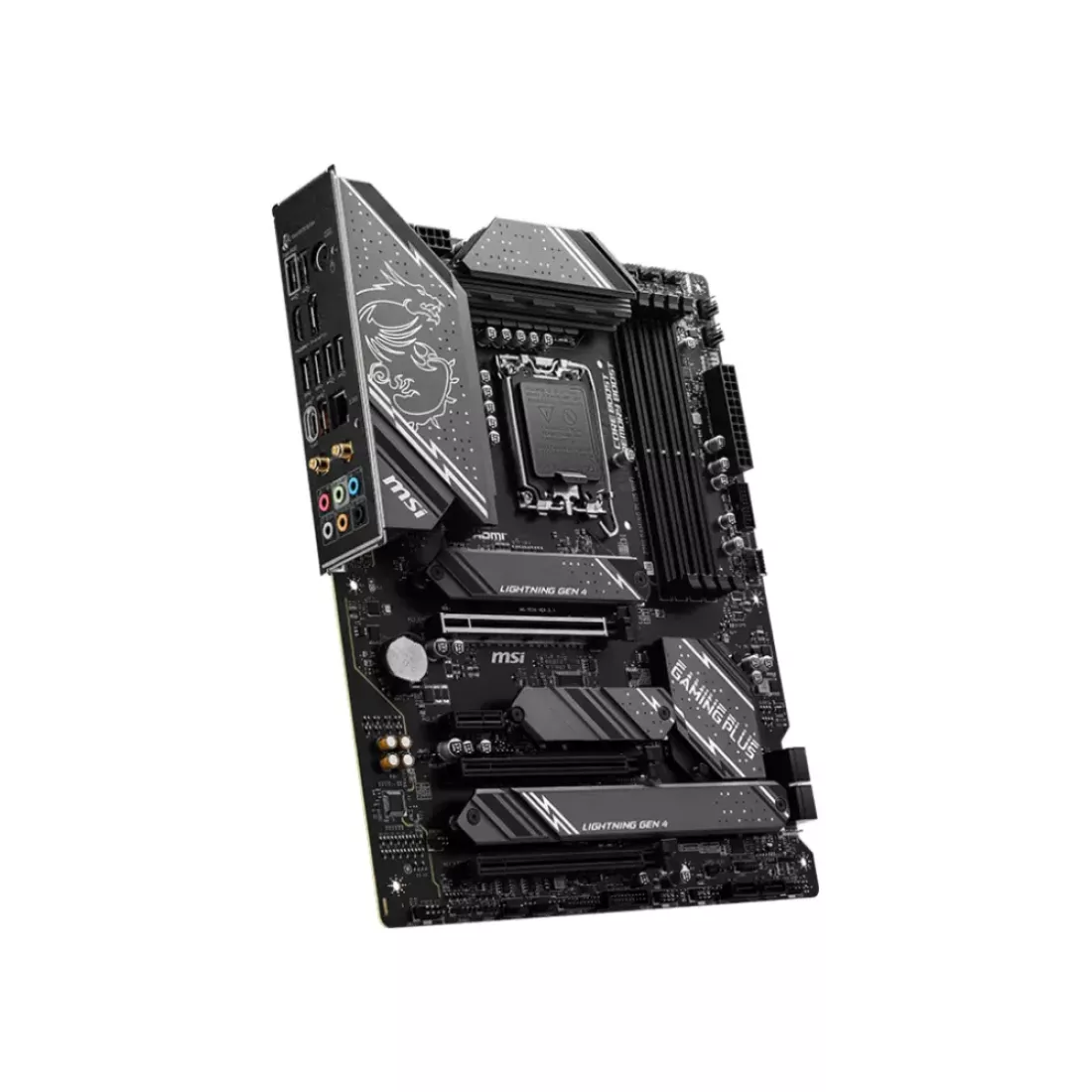

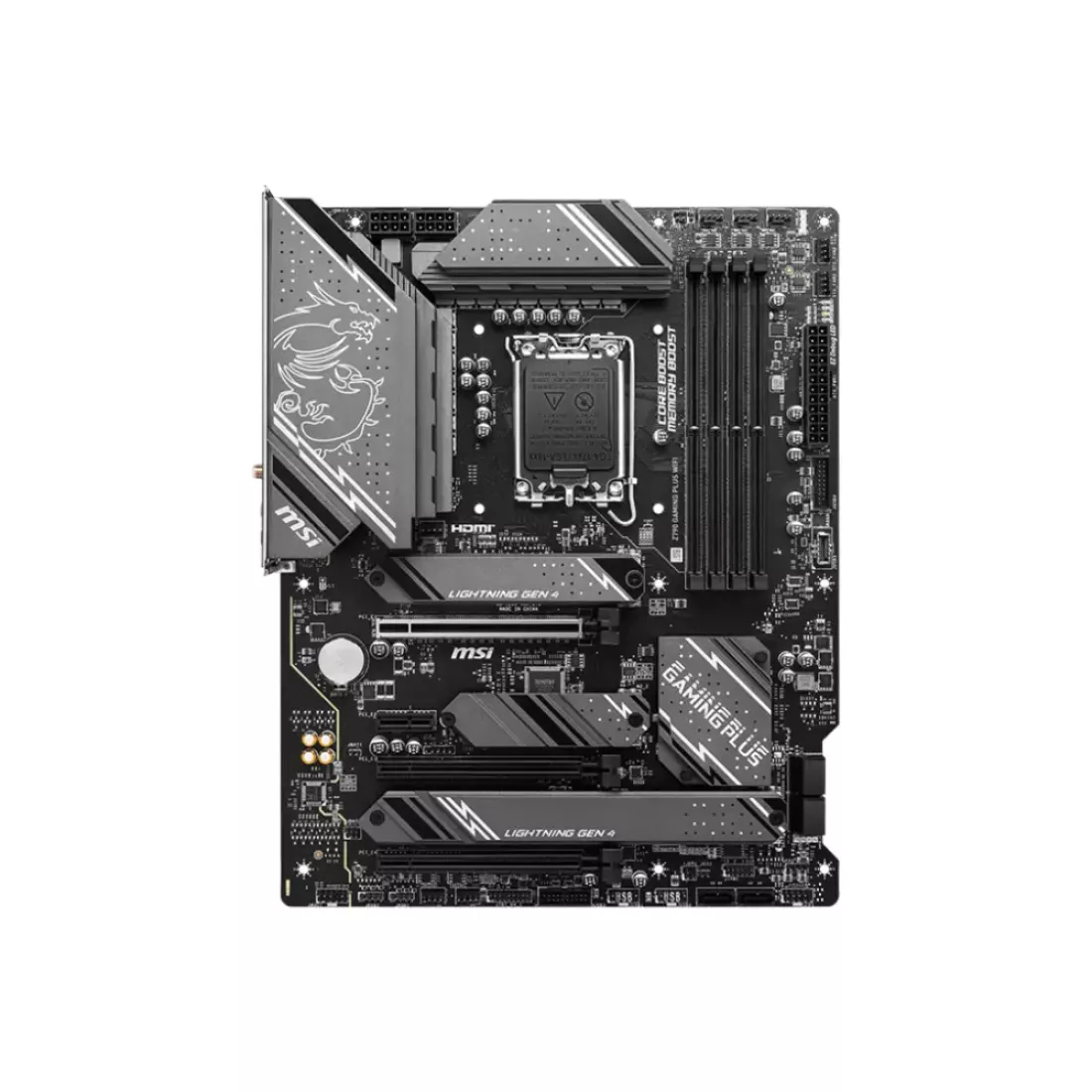

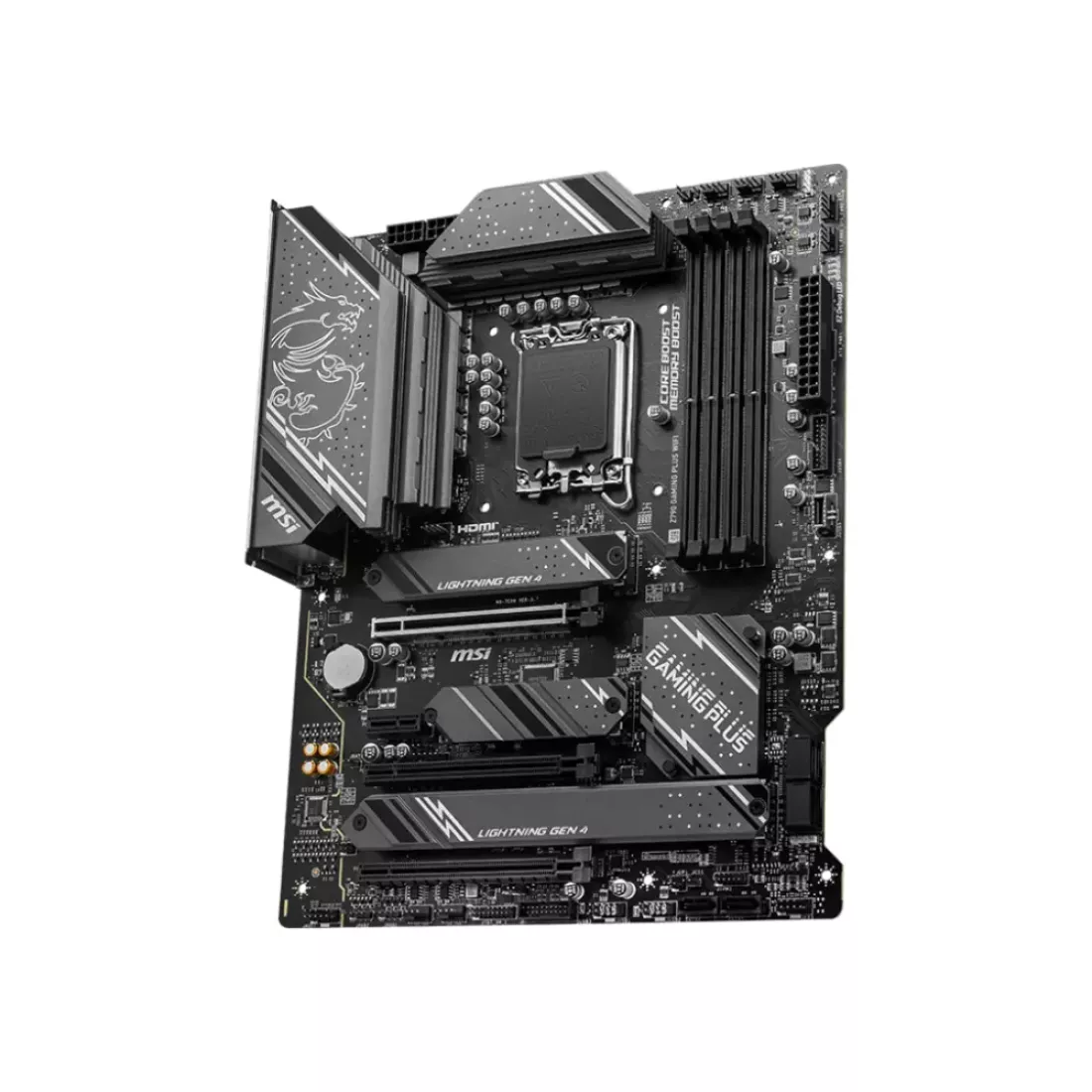

| Model | MSI Z790 Gaming Plus WIFI |
| Form Factor | ATX |
| CPU Support | Intel 12th / 13th / 14th Gen (LGA 1700) |
| Chipset | Intel Z790 |
| Memory Support | DDR5, Dual Channel |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 128GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 3 x M.2 Gen4 x4 |

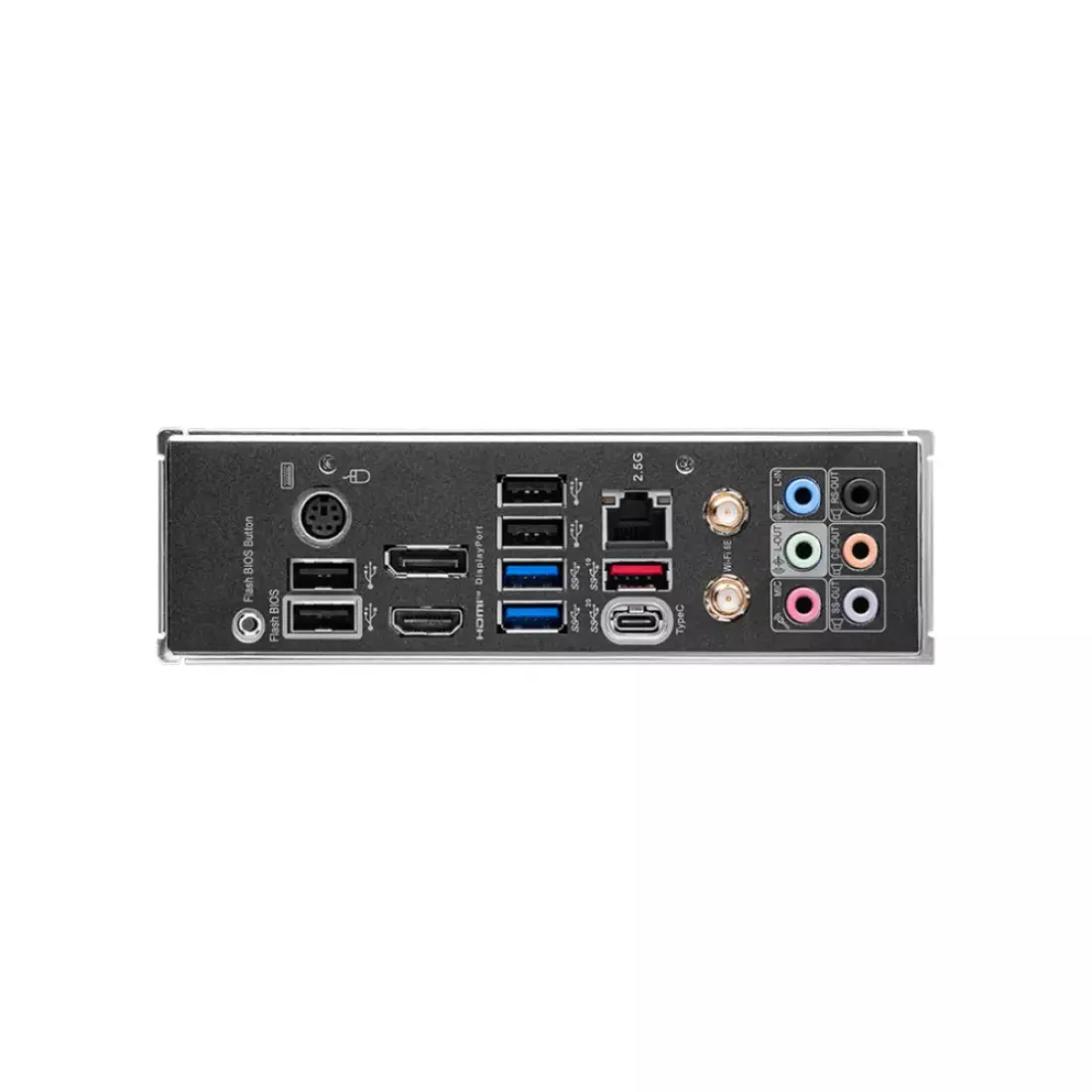

| Graphics Output | 1 x HDMI, 1 x DisplayPort |
| USB Ports | USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1/2, USB 2.0 |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| LAN | 1 x 2.5G LAN |
| Wireless | Intel Wi-Fi 6E + Bluetooth 5.3 |
| BIOS | UEFI AMI BIOS |
| Operating System | Windows 11 / 10 64-bit |
| Special Features | EZ Debug LED, TPM 2.0, Lightning Gen 5 PCIe |
