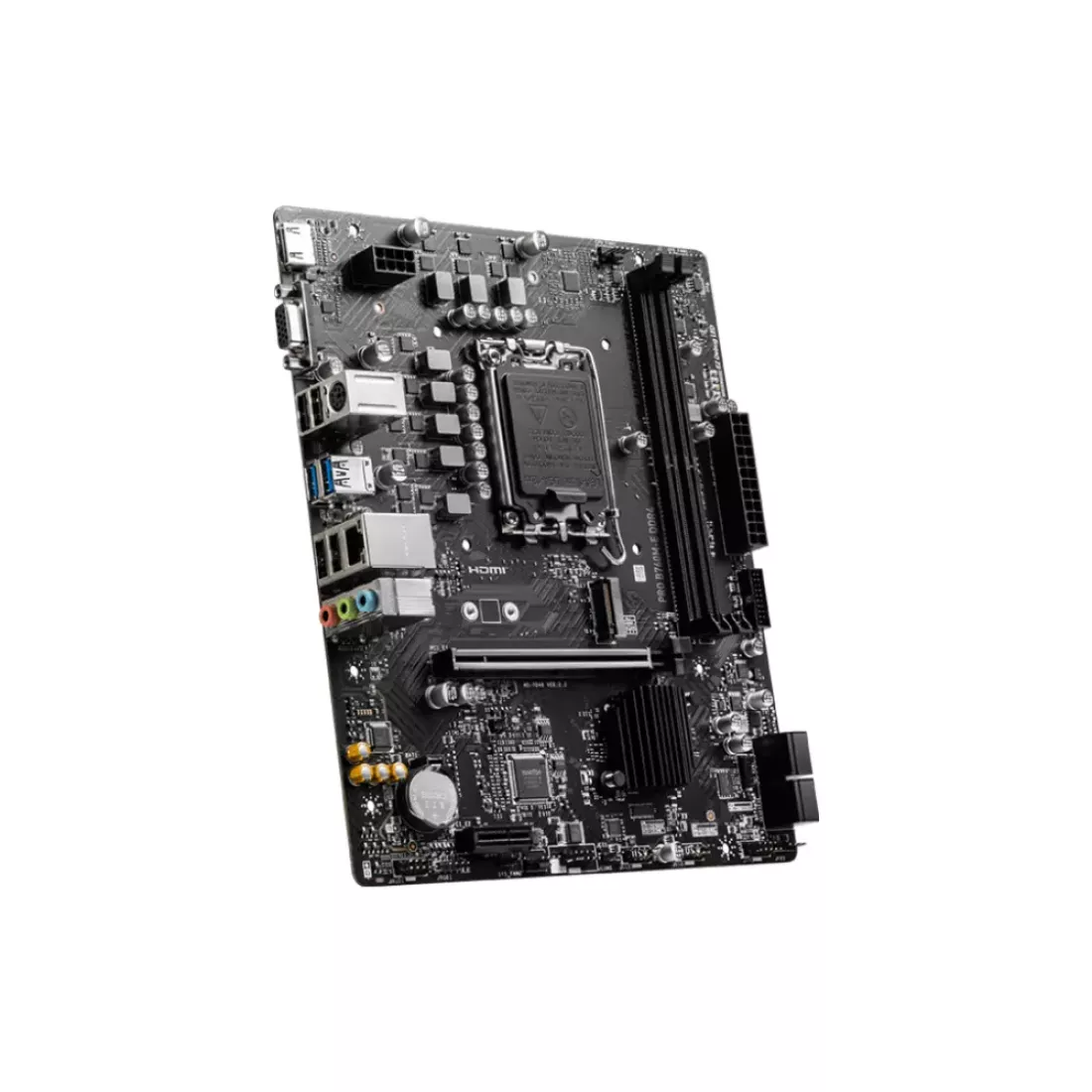

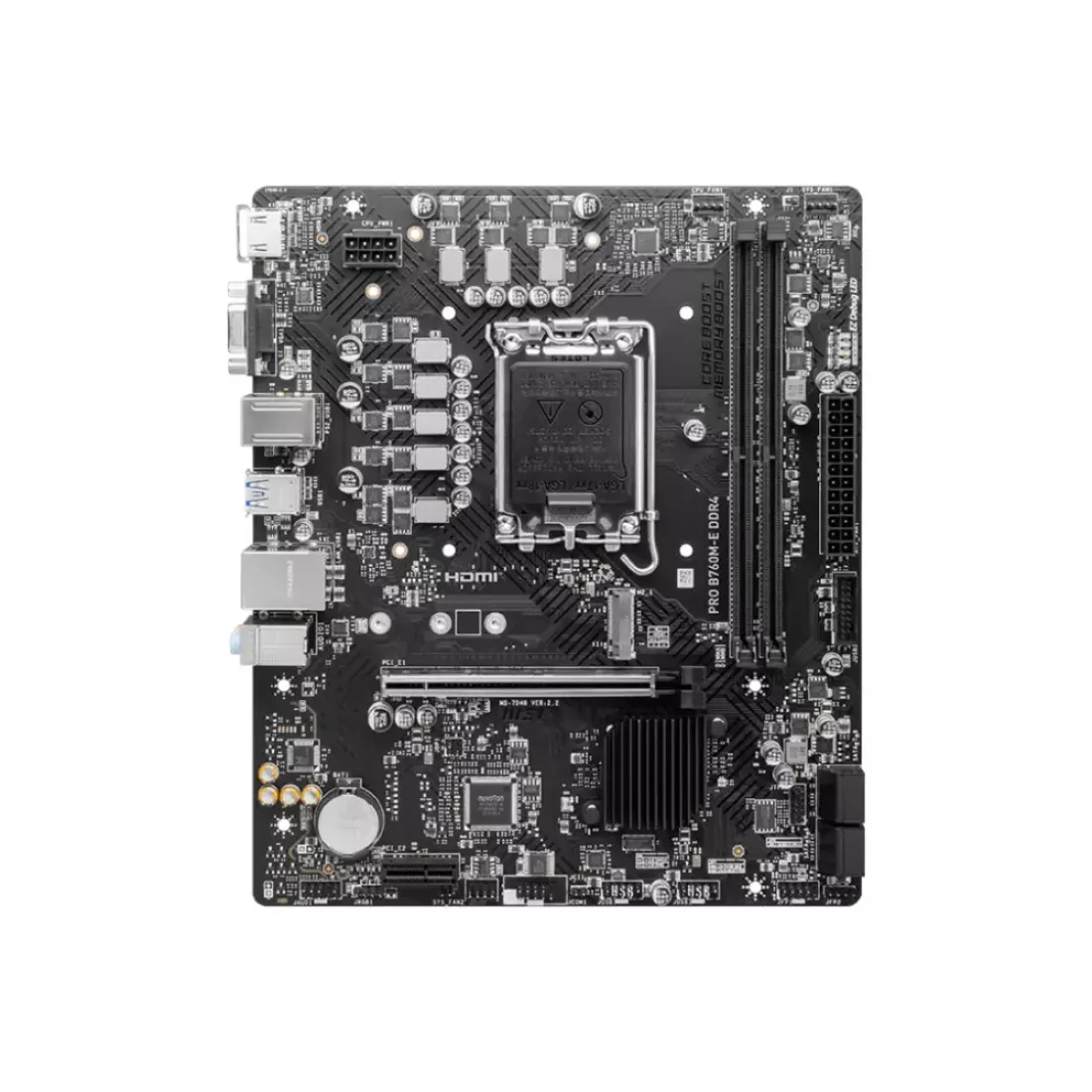

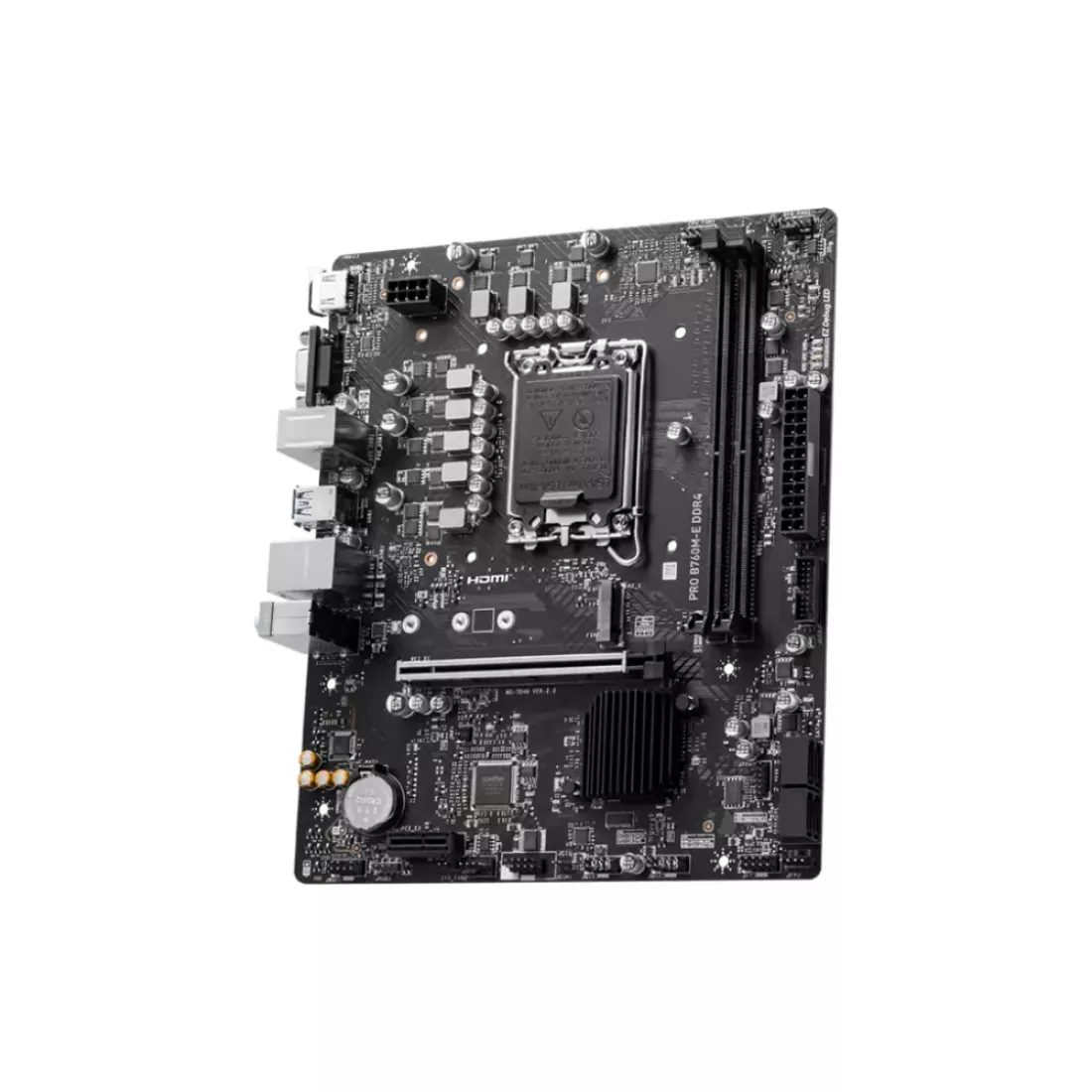

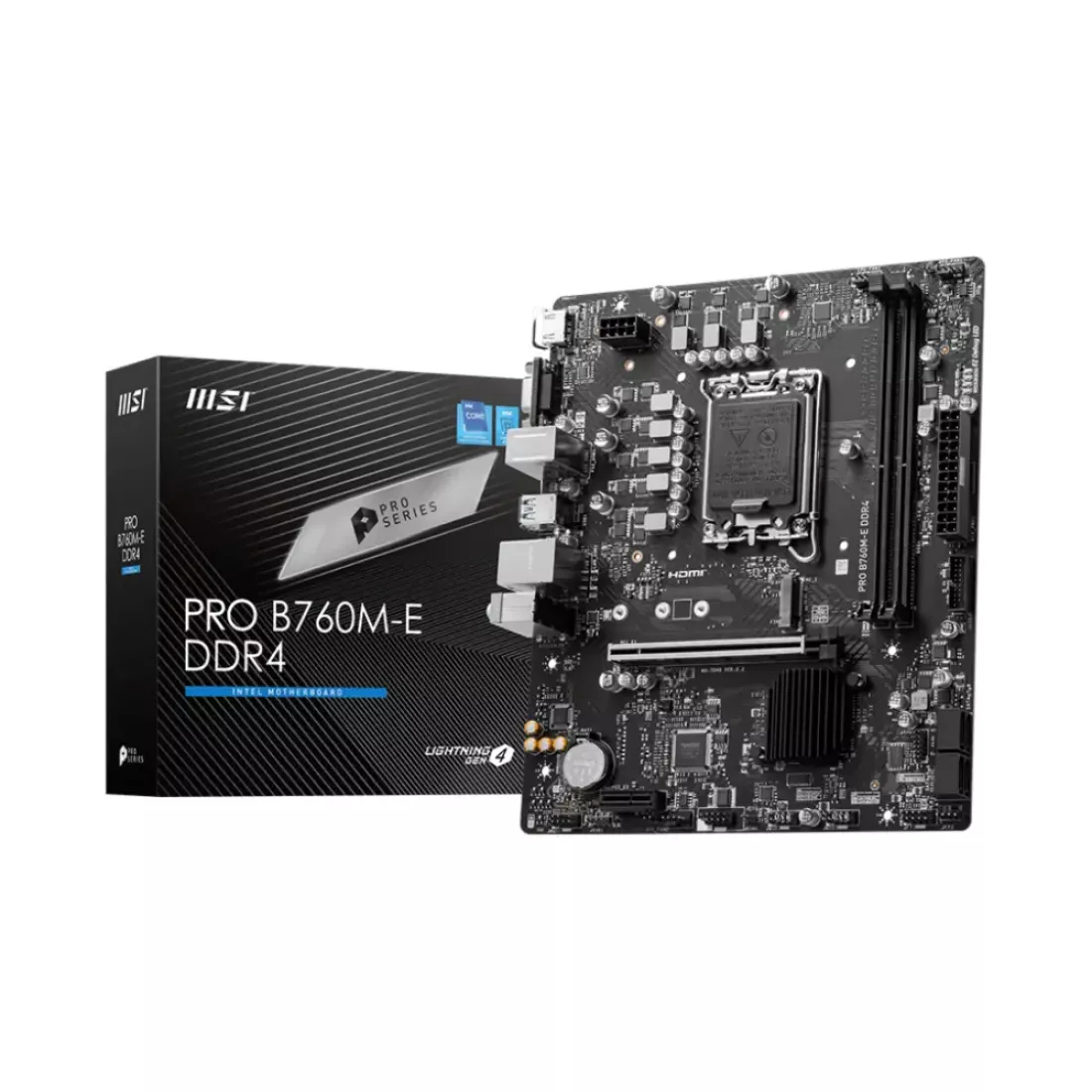

| Model | MSI PRO B760M-E DDR4 |
| Form Factor | Micro-ATX |
| CPU Support | Intel 12th / 13th / 14th Gen (LGA1700) |
| Chipset | Intel B760 |
| Memory Support | DDR4, up to 5333+ MHz (OC) |
| Memory Slots | 2 x DDR4 DIMM, Dual Channel |
| Maximum Memory | 64GB |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 Gen4 x4, 4 x SATA III |

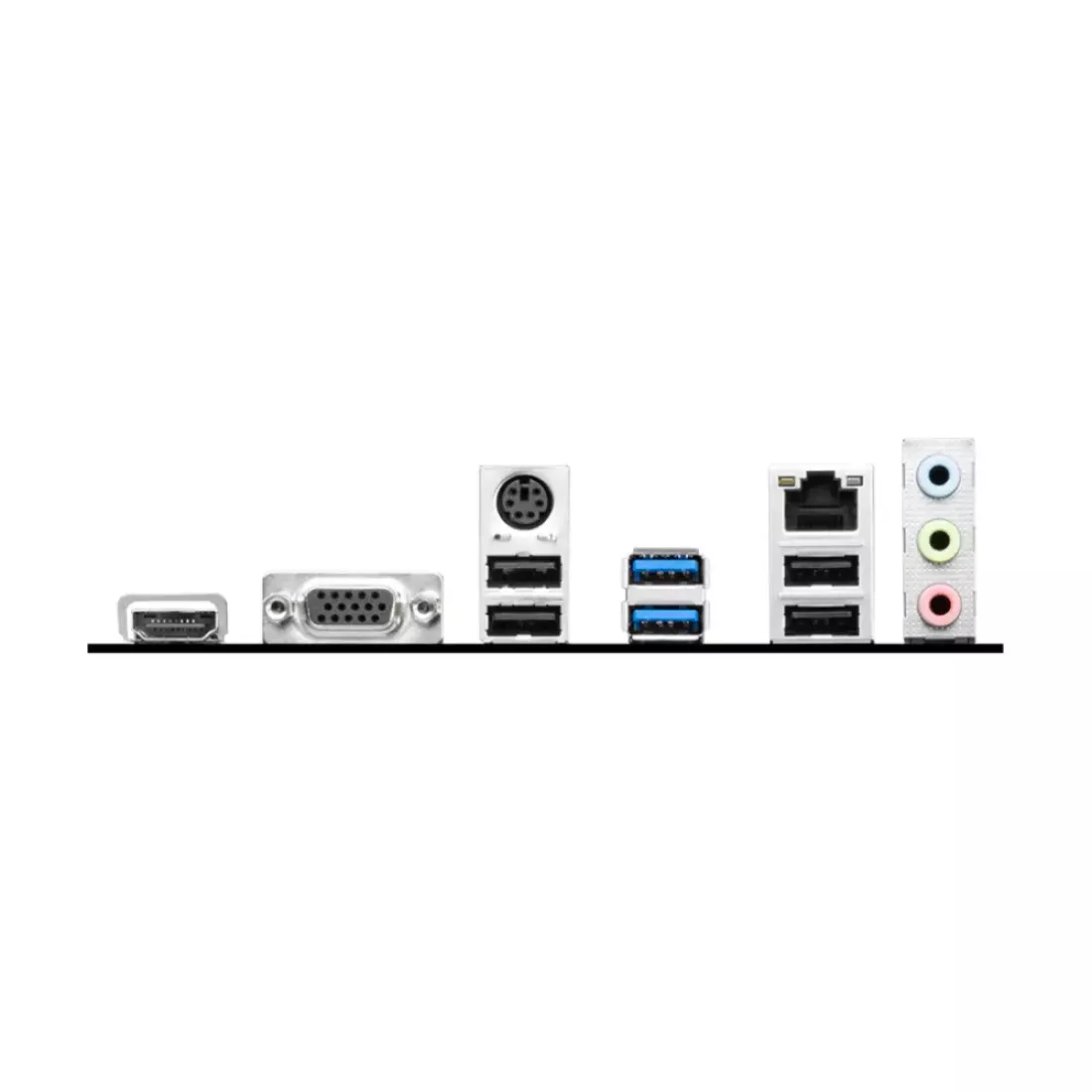

| Graphics Outputs | 1 x HDMI, 1 x VGA |
| USB Ports | USB 3.2 Gen 1, USB 2.0 |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| LAN | 1 x Realtek 1G LAN |
| BIOS | UEFI AMI BIOS |
| Operating System | Windows 11 / 10 64-bit |
| Other Features | TPM Support, EZ Debug LED |
