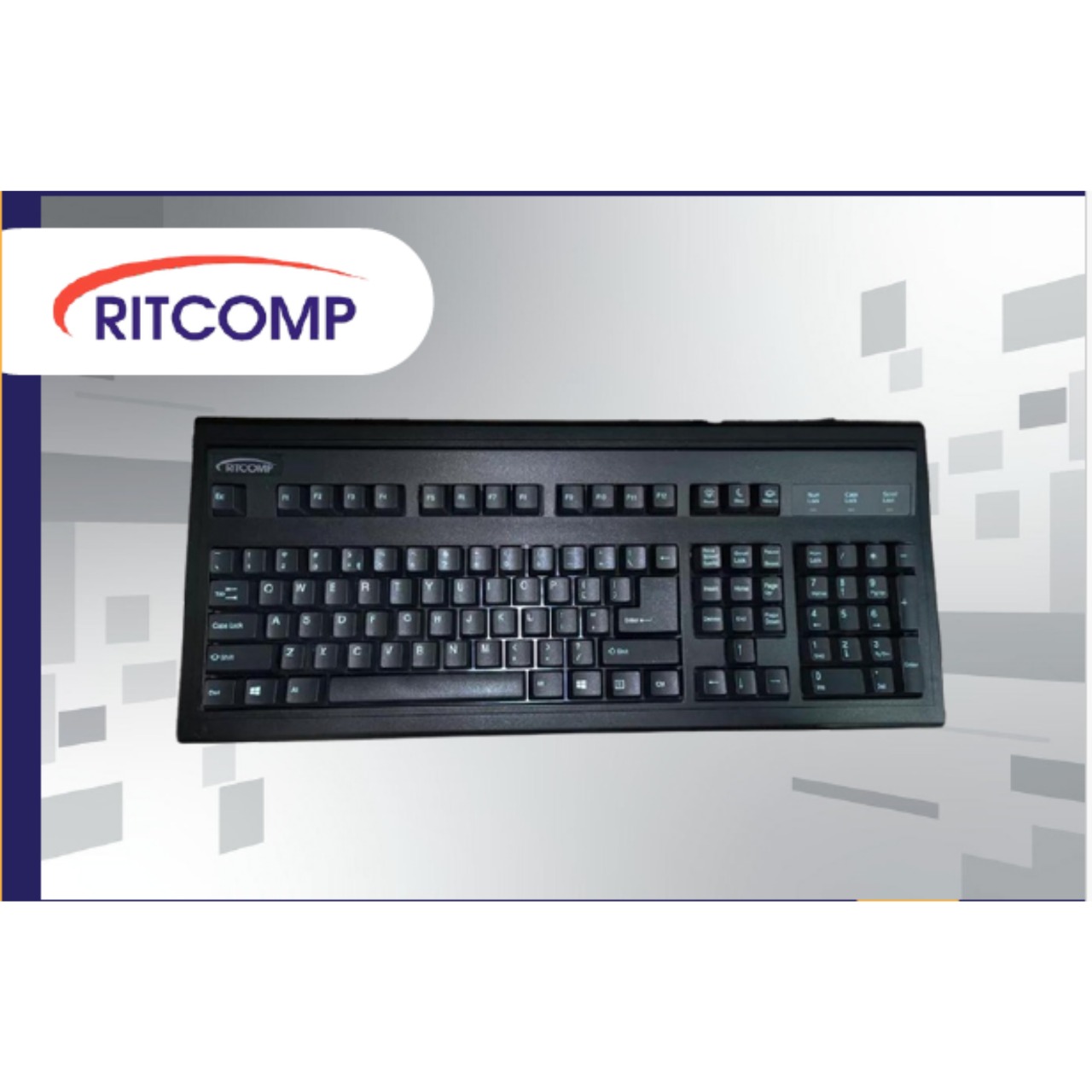

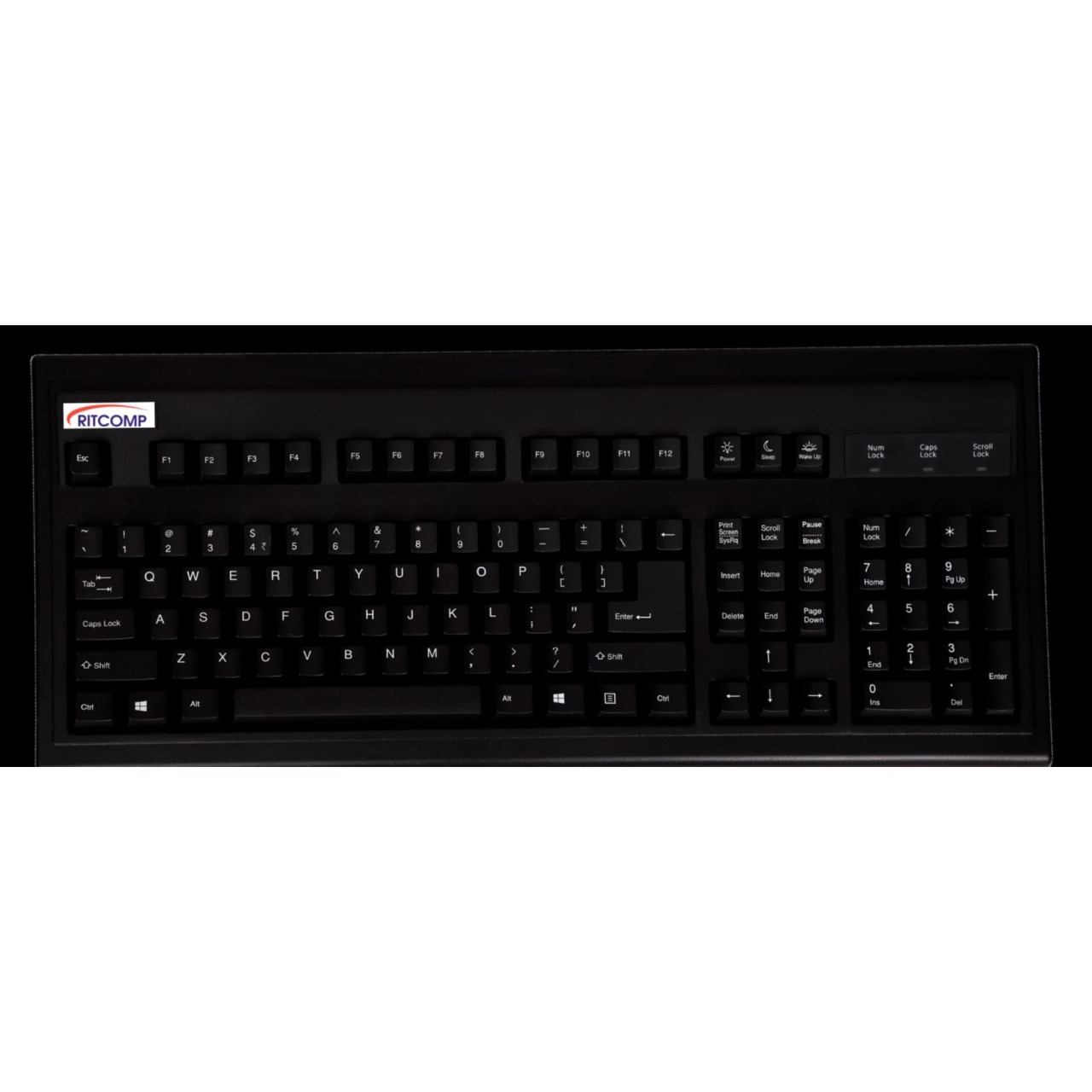

RITCOMP MECHANICAL USB KEYBOARD 2299

Product Dispatch within 24-96 Hours

₹2400.00

(All Inclusive Taxes)

Product CodeGPR0211
BrandRITCOMP
Cash on Delivery (COD) facility is now available.

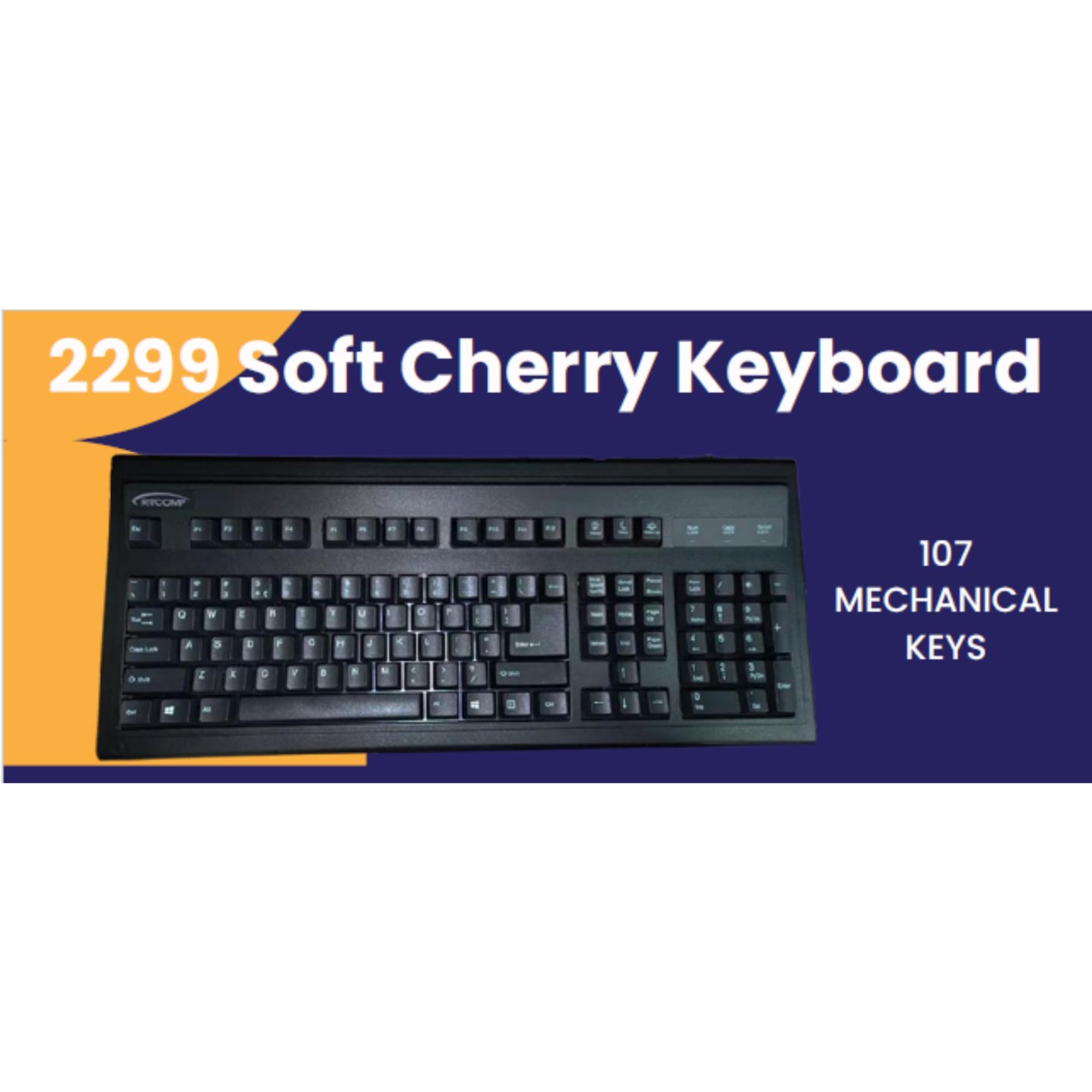

🧩 Specification of Keyboard Interface Connector - Model 2299 Soft Cherry Keyboard

Features

  • Enhanced 107 keys
  • Additional (WIN 98) three keys: Power, Sleep & Wake-up
  • Compatible with Windows 95/98, XP, Windows 7, Windows 8
  • Mechanical switches (Cherry Germany)
  • Softtouch feeling
  • Operation life more than 50 million keystrokes
  • PC/AT/PS2/USB fully compatible, Separate Numeric keypad and cursor control keypad
  • Adjustable tilt angle with three positions (3°, 8°, 11°)
  • Large size shift and return keys
  • Num Lock, Caps Lock, Scroll Lock with LED indicators
  • Accommodates multifunctional single chip CPU
  • One Year Warranty
  • FCC Class B Complied

Electrical Specifications

Input Power Rating +5VDC ±10%, 25 mA max
Interface Bi-Directional
Insulation Resistance 50 MΩ 100VDC min.
Safety FCC Class B (Complied)
Data Format Data transfer to and from the keyboard in IBM PC compatible format
Connector Type USB Pin, 6 PIN mini DIN connector for IBM PS/2
Dimension 468(L) x 196(W) x 29(H) mm
Tilt Angle 3°, 8°, & 11°

Mechanical & General Specifications

Switch Type Mechanical (Cherry Germany)
Switch Feeling Soft (Non-Tactile)
Life Cycle More than 50 Million operations
Total Travel 4.0 - 0.4 mm
Pre Travel 2 ± 0.6 mm
Number of Keys 107
Operating Force 60 ± 20 CN
Contact Type Normally Open

Environment

Operating Temperature 5°C to 40°C
Storage Temperature -40°C to 70°C
Relative Humidity 5% to 90%

Packing Details

PCS/CTN 10
Gross Weight/CTN (Kg) 15 KG
CFT/CTN 532 x 405 x 470 mm

Pin Number & Color Code

Pin No. Color Code USB 6 Pin DIN (PS/2)
1 Yellow Power Date
2 Red Clock Not used
3 Data Ground Power
4 Natural Ground Clock
5 Black Clock Not used
6 Not used - -

✅ This 2299 Soft Cherry Keyboard offers a durable and comfortable typing experience with mechanical switches and extensive compatibility for multiple Windows versions.

📞 For inquiries or bulk orders, contact: +91-8385030152 (Call or WhatsApp)

⚠ कृपया ध्यान दें | Please Note:
इस उत्पाद की कीमत बिना पूर्व सूचना के बदल सकती है। आपकी ओर से किया गया ऑर्डर तब तक वैध नहीं माना जाएगा जब तक हमारी टीम द्वारा कॉल या मैसेज के माध्यम से पुष्टि नहीं की जाती। कृपया पुष्टि से पहले भुगतान न करें।

The price of this product is subject to change without prior notice. Any order will only be considered confirmed once our team validates it via call or WhatsApp. Do not make payment until confirmation is received.
🚚 Courier Charges:
कूरियर शुल्क उत्पाद की पैकिंग के बाद निर्धारित किया जाता है और यह ऑर्डर अमाउंट में शामिल नहीं होता।
हम मुख्यतः भारतीय डाक (पोस्ट ऑफिस पार्सल सेवा) के माध्यम से डिलीवरी करते हैं, जिसमें सामान्यतः 1 किलोग्राम के लिए ₹100 चार्ज होता है।
इसके अतिरिक्त, ग्राहक की सुविधा अनुसार हम बस के द्वारा और प्रतिष्ठित कूरियर कंपनियों जैसे Skyking, Pushpak, Shekhawati, Maruti, Tirupati, DTDC, Blue Dart और अन्य विश्वसनीय माध्यमों से भी डिलीवरी की सुविधा प्रदान करते हैं।
Courier charges depend on packing and are not included in order total. We primarily ship via India Post (₹100/kg), but can also use reliable couriers like Skyking, Pushpak, Shekhawati, Maruti, Tirupati, DTDC, Blue Dart, and others upon customer request.
