| Chipset | Intel H81 |
| CPU SUPPORT | Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt |
| MEMORY | Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory |
| INTEGRATED VIDEO | By CPU model
Supports DX11.1 |
| STORAGE | 2 x SATA III Connectors (6Gb/s)
* Specifications vary by CPU types
2 x SATA II Connectors (3Gb/s)
* Specifications vary by CPU types |
| LAN | Realtek RTL8111G - 10/100/1000Mb/s Controller |
| AUDIO CODEC | Realtek ALC662 6-Channel HD Audio |
| USB | 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header |
| EXPANSION SLOT | 1 x PCI-E 2.0 x16 Slot
* Specifications vary by CPU types
1 x PCI-E 2.0 x1 Slot
* Specifications vary by CPU types |

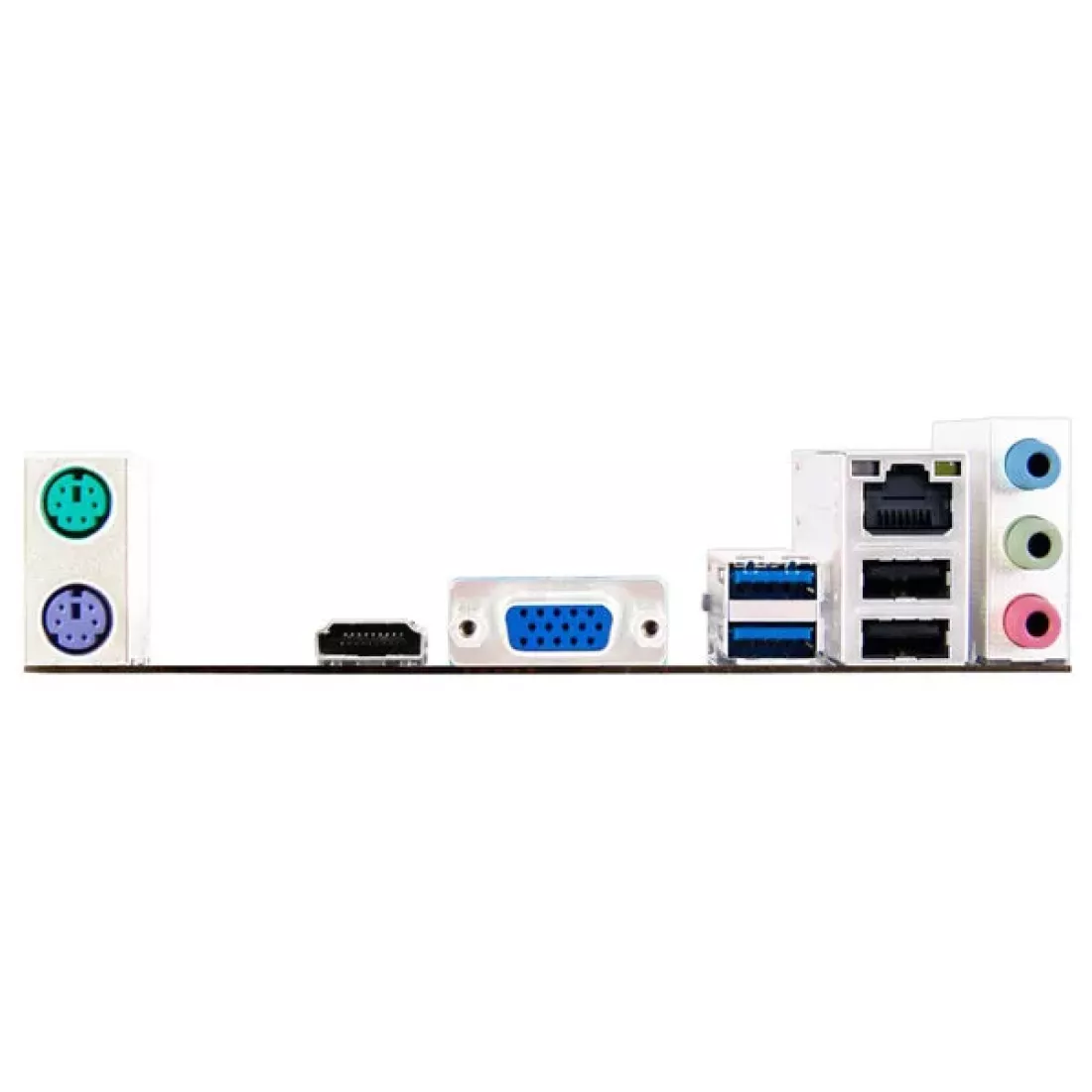

| REAR I/O | 1 x PS/2 Mouse1 x PS/2 Keyboard2 x USB 3.0 Port2 x USB 2.0 Port1 x HDMI Connector1 x VGA Port1 x LAN Port3 x Audio Jacks |
| INTERNAL I/O | 2 x USB 2.0 Header2 x SATA III Connector (6Gb/s)2 x SATA II Connector (3Gb/s)1 x Front Audio Header1 x Front Panel Header1 x CPU Fan Connector1 x System Fan Connector1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 19cm x 17cm (W x L) |
| OS SUPPORT | Supports Windows 7 / 8 / 8.1 / 10(x64) |
| BUNDLE SOFTWARE | BIO-Remote2Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x Quick Guide |
| FEATURES | Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update |
