| Chipset | Intel H610 |
| CPU SUPPORT | Support for 12th/ 13th/ 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | Supports DX12
Supports HDCP |
| STORAGE | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD
4 x SATA III Connector (6Gb/s)
* Specifications vary by CPU types |
| LAN | Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897
7.1 Channels, High Definition Audio |
| USB | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
Intel H610 Chipset
1 x PCIe 3.0 x1 Slot
* Specifications vary by CPU types |

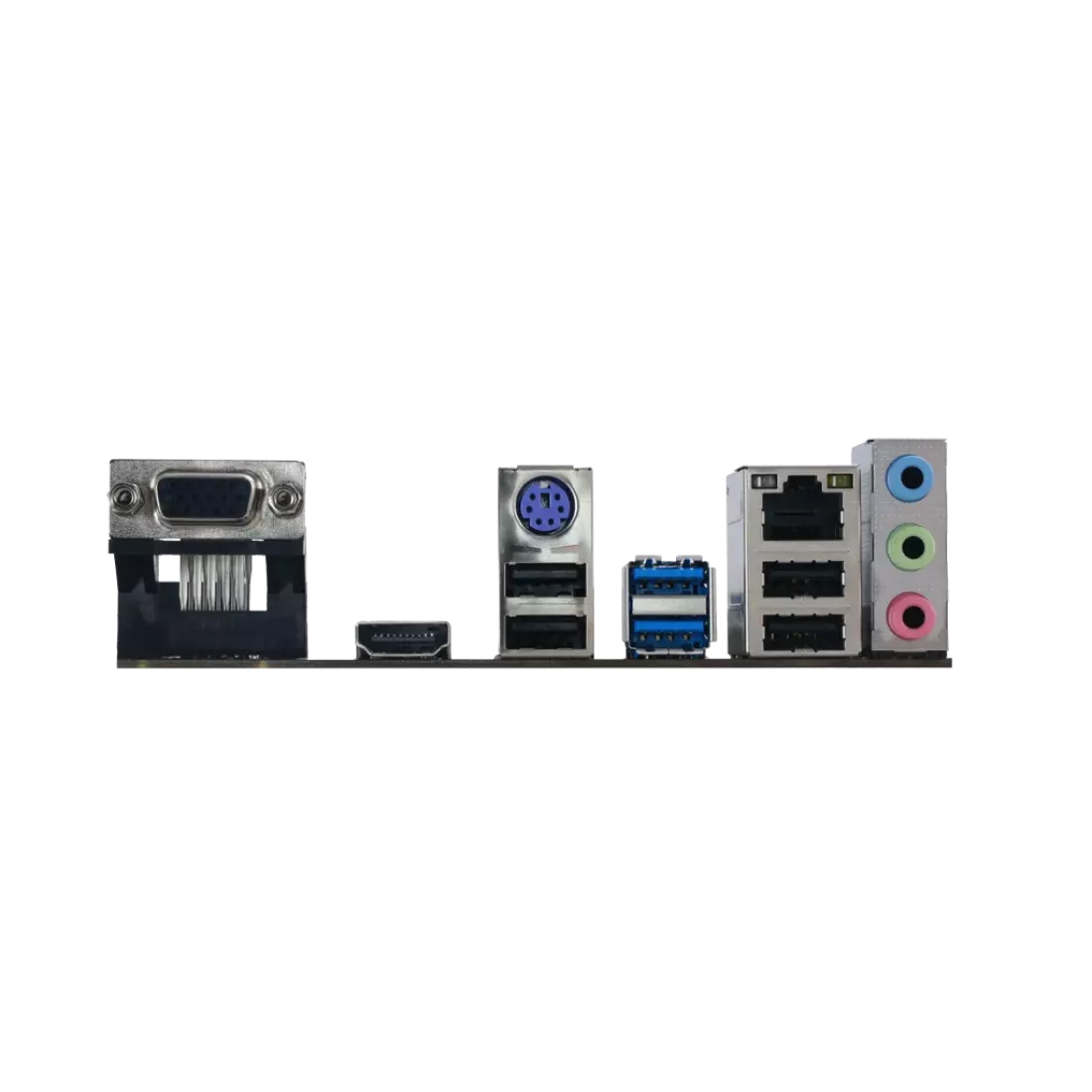

| REAR I/O | 1 x PS/2 Keyboard/Mouse Port1 x HDMI1 x VGA Port2 x USB 3.2 (Gen1) ports4 x USB 2.0 ports1 x LAN port3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s)2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Header1 x COM Port Header1 x TPM Header |
| H/W MONITORING | CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm (W x L) |
| OS SUPPORT | Supports Windows 10 (64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x Quick Guide |
