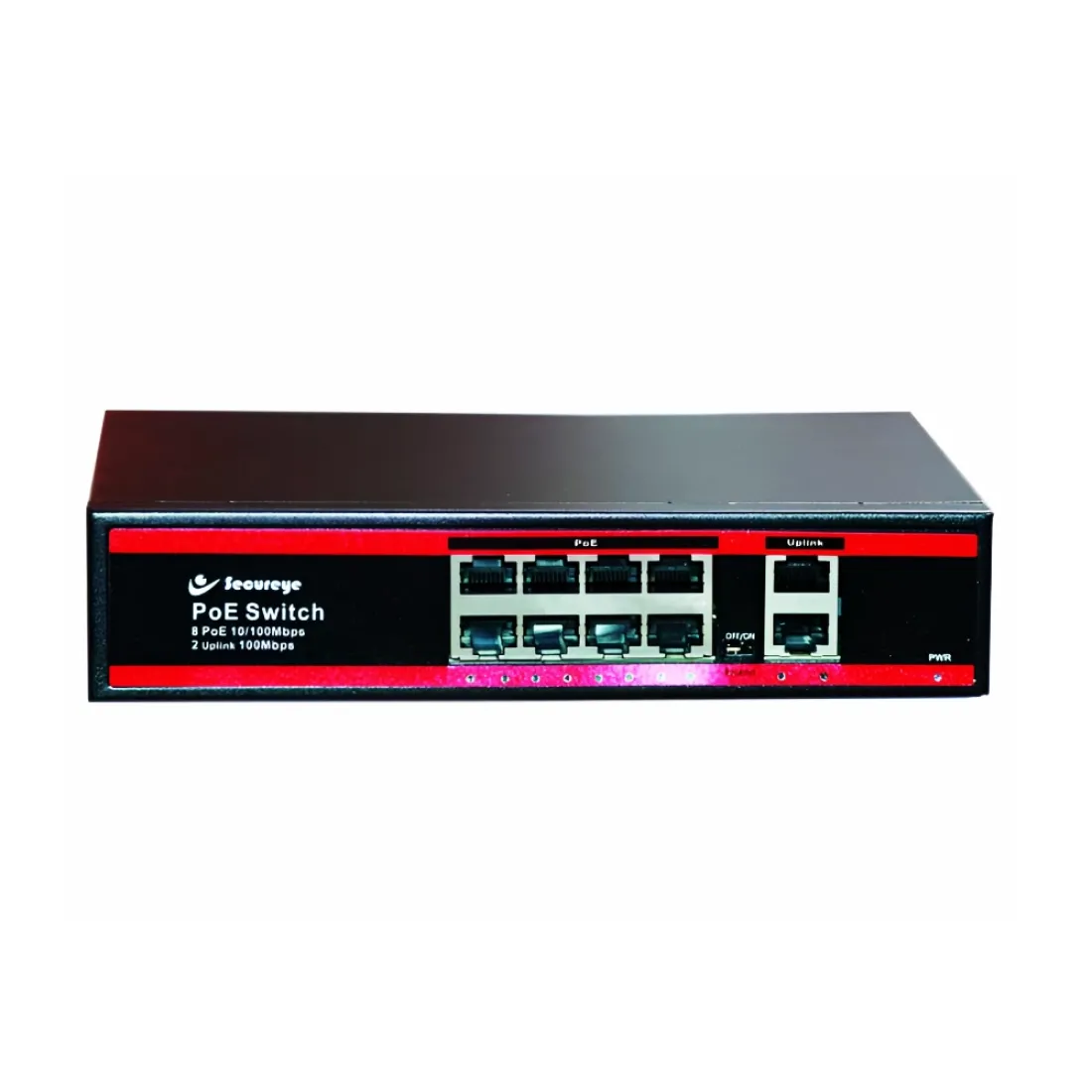

| 8 Port POE Switch, Support One key Extend | Ports 1-8 support 250 effective meters (Cat.5 or above) |
| One key VLAN support | Ports 1-8 isolation for network security |
| Support IEEE 802.3 af/at protocol | Automatically detect and identify PD devices complying with IEEE 802.3 af/at and supply power |
| Auto MDI/MDIX on upward ports | |
| Adopted storage forward switching system | |
| Smart power, minimal consumption | Guarantee PD requirements |
| Power supply circuit protection | Protects backend devices |
| Automatically adaptive | Provides the required power to the connected device |
| Fanless design | Energy saving and environmental protection |
| Compact size design | |
| Power saving function | When the port is disconnected |
| Wire-speed forwarding capability | All ports support this |
| Plug and play | No configuration required |
| Power Light | Green: OK, Red: Not OK. If red, check external socket power supply, adapter connection, etc. |
| PoE Indicator | Yellow: OK, Red: Not OK. If red, check corresponding RJ45 port, cable, or device. |
| Link/ACT Indicator | Green: OK. If the light is not OK, check the RJ45 port, POE power, cable connection, or damaged devices. |
