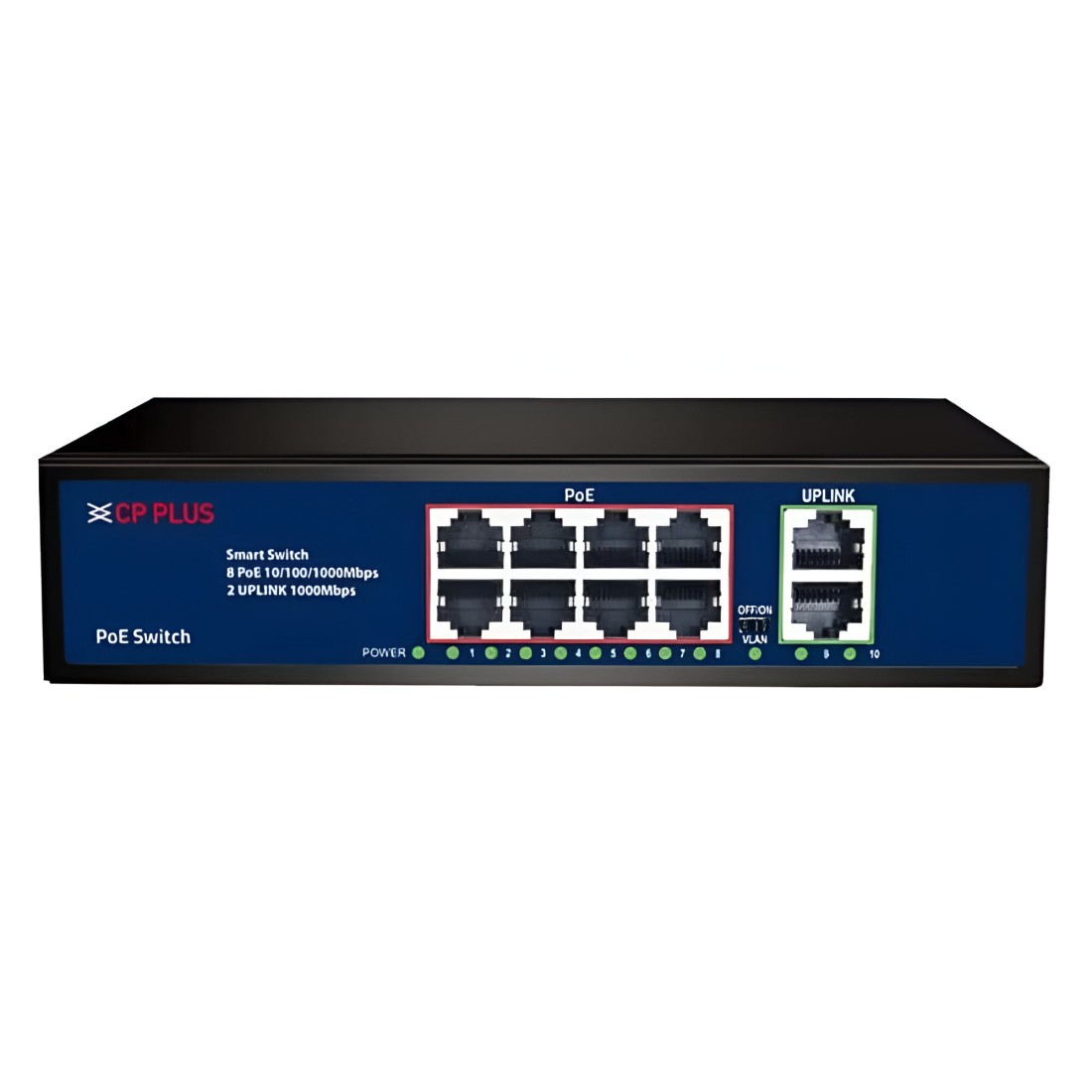

CP-Plus Poe Switch 8 Port (8 GE + 2 GE Port) CP-DNW-GPU8G2-96-V4
₹3130.00
(All Inclusive Taxes)
| Product Code | G8396 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
| Model | CP-DNW-GPU8G2-96-V4 |
| Warranty | 2 Years from CPPLUS Service Center |
| Product URL | View Product |
About This Product
CP-Plus PoE Switch 8 Port (8 GE + 2 GE Port) CP-DNW-GPU8G2-96-V4 is a high-performance Gigabit Power over Ethernet switch designed for advanced CCTV surveillance and enterprise network setups. It features 8 Gigabit PoE ports and 2 Gigabit uplink ports, providing high-speed data transfer and efficient power supply for IP cameras, wireless access points, and other PoE-enabled devices. With plug-and-play functionality, it allows for easy installation and seamless connectivity. Available at Golchha Computer, this CP-Plus CP-DNW-GPU8G2-96-V4 PoE switch ensures reliable performance, superior network stability, and energy-efficient operation — making it ideal for demanding networking and security environments.
⚡ 8-Port Gigabit PoE Switch with 2 Giga Uplink | 96W PoE Budget | VLAN & Watchdog Support
| Specification | Details |
|---|---|
| Uplink Ports | 2 × 1000 Mbps; Transmission Distance: 0–100m |
| PoE Ports | 8 × 1000 Mbps RJ45 (Max. 30W/port) |
| Total Network Ports | 10 |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Supply Pins | 1/2(+), 3/6(-) |
| PoE Power Budget | 96W Total |
| Transmission Distance | 0–100m @ 1000Mbps; Port 7–8: Max. 250m @ 10Mbps (Extend mode) |
| Switch Capacity | 20Gbps Full Duplex |
| Packet Forwarding Rate | 1.488 Mpps/port |
| MAC Address Table | 2K |
| Network Protocols | IEEE802.3i / 802.3u / 802.3x / 802.3af / 802.3ab |
| PoE Features | All ports support MDI/MDIX |
| Watchdog | Supported |
| VLAN | Supported |
| RJ-45 ACT Indicators |
Green Off: Disconnected Green On: Link Connected Green Flash: Data Transmitting |
| Power Indicator (PWR) | Light on: Powering, Light off: No Power |
| ESD Protection | Air: 8KV; Contact: 6KV |
| Surge Protection |
RJ45 Port Common: 4KV RJ45 Port Differential: 2KV Power Board Common: 2KV Power Board Differential: 2KV |
| Forwarding Mode | Store-and-forward |
| Power Source | Built-in Power Supply, AC 100–240V, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 10% ~ 95% (non-condensing) |
| Dimensions | 200mm × 118mm × 44mm |
| Weight | 0.8 kg (excluding input cable & packaging) |
| Color | Black |
📦 This Gigabit PoE Switch offers 8x PoE ports with high-speed 1000Mbps throughput and supports up to 96W power budget. With ESD and surge protection, VLAN & watchdog functionality, it ensures reliable performance for surveillance or network expansion.
