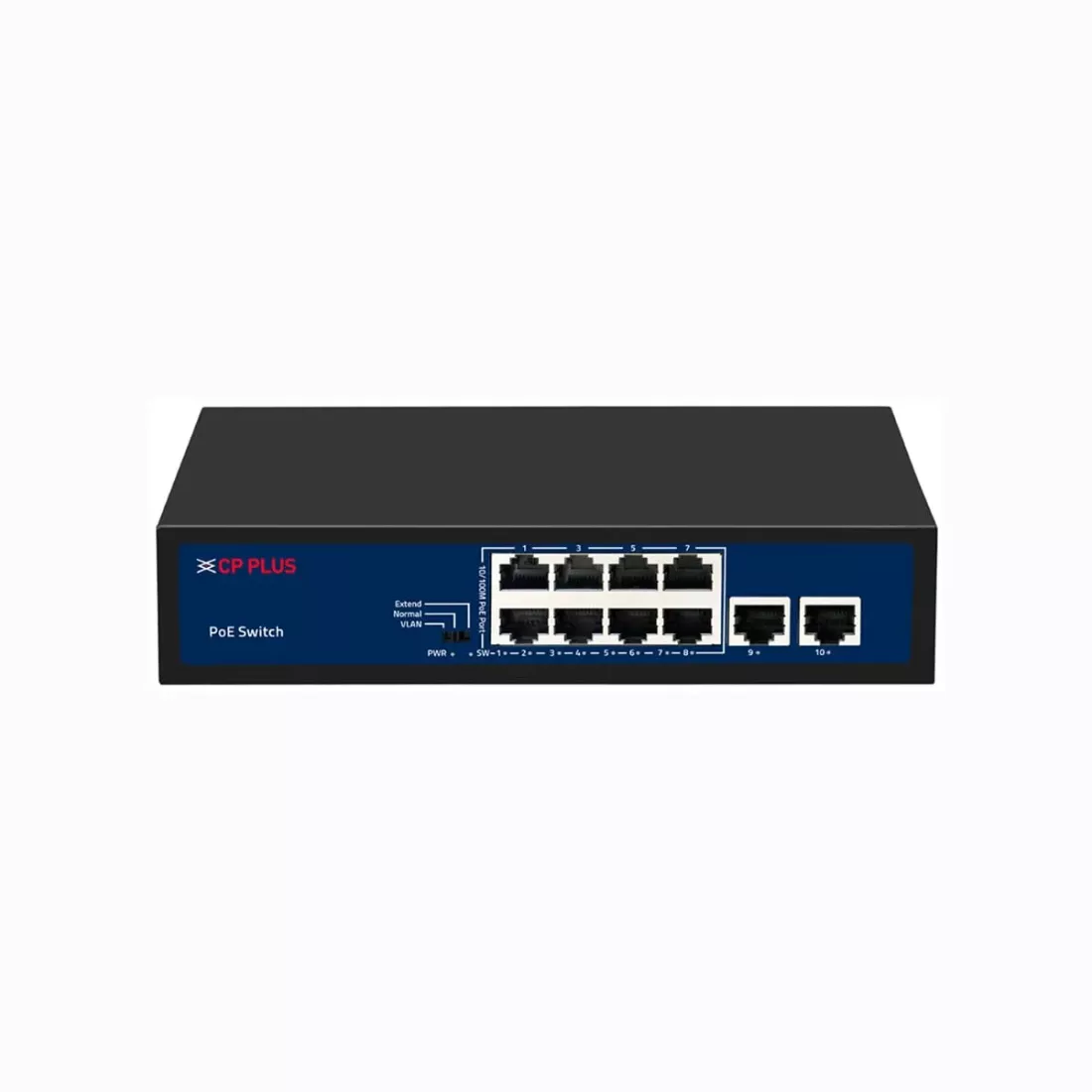

CP-Plus Poe Switch 8 Port (8 FE+ 2 FE Port) CP-DNW-HPU8H2-96-V2
| Product Code | G0206 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
| Model | CP-DNW-HPU8H2-96-V2 |
| Warranty | 2 Years from CPPLUS Service Center |
| Product URL | View Product |
About This Product
CP-Plus PoE Switch 8 Port (8 FE + 2 FE Port) CP-DNW-HPU8H2-96-V2 is a high-quality Power over Ethernet switch designed for professional CCTV and networking applications. It comes with 8 Fast Ethernet PoE ports and 2 uplink Fast Ethernet ports, ensuring smooth data transmission and efficient power supply for IP cameras, access points, and PoE-enabled devices. With its plug-and-play setup, installation is quick and hassle-free. Available at Golchha Computer, this CP-Plus CP-DNW-HPU8H2-96-V2 PoE switch offers stable connectivity, energy-efficient performance, and durable construction — making it an excellent choice for surveillance and small business networks.
🌐 8-Port PoE Network Switch | 2 Gbps Switching Capacity | 96W PoE Budget | Extend Mode up to 250m | Built-in Power Supply
| Feature | Details |
|---|---|
| Network Ports | 8 × 10/100 Mbps RJ45 Ports; Max 30W output per PoE port |
| Uplink Ports | 2 × 10/100 Mbps; Transmission Distance: 0–100 m (default) |
| Switch Capacity | 2 Gbps (Non-blocking) |
| Forwarding Rate | 0.1488 Mpps per port |
| PoE Standard | IEEE 802.3, 802.3u, 802.3x |
| PoE Power Supply Pin | 1/2 (+), 3/6 (-) |
| Transmission Distance | 0–100 m at 100 Mbps or up to 250 m at 10 Mbps (Extend Mode) via Cat.5e or better |
| MAC Address Table | 2K entries |
| Lightning Protection | Supported |
| PoE Power Budget | 96 W total |
| ESD Protection | Air Discharge: 8 KV Contact Discharge: 6 KV |
| Power Consumption | Less than 5 W |
| LED Indicators |
Power LED On: Powering Power LED Off: No Power |
| Power Source | Built-in Power Supply, Input: 100–240 V AC, 50/60 Hz |
| Power Light Modes |
Green Light Off: Normal/Default Mode Green Light On: VLAN Mode Green Light Flashing: Extend Mode |
| Operating Temperature | -20°C to 50°C |
| Humidity | 10% to 95%, Non-condensing |
| Storage Temperature | -45°C to 85°C |
| Dimensions (W × D × H) | 200 × 118 × 44 mm |
🔌 Reliable and efficient 8-port PoE switch delivering 96W power budget with extend mode up to 250 meters for flexible deployment in surveillance and network environments.
