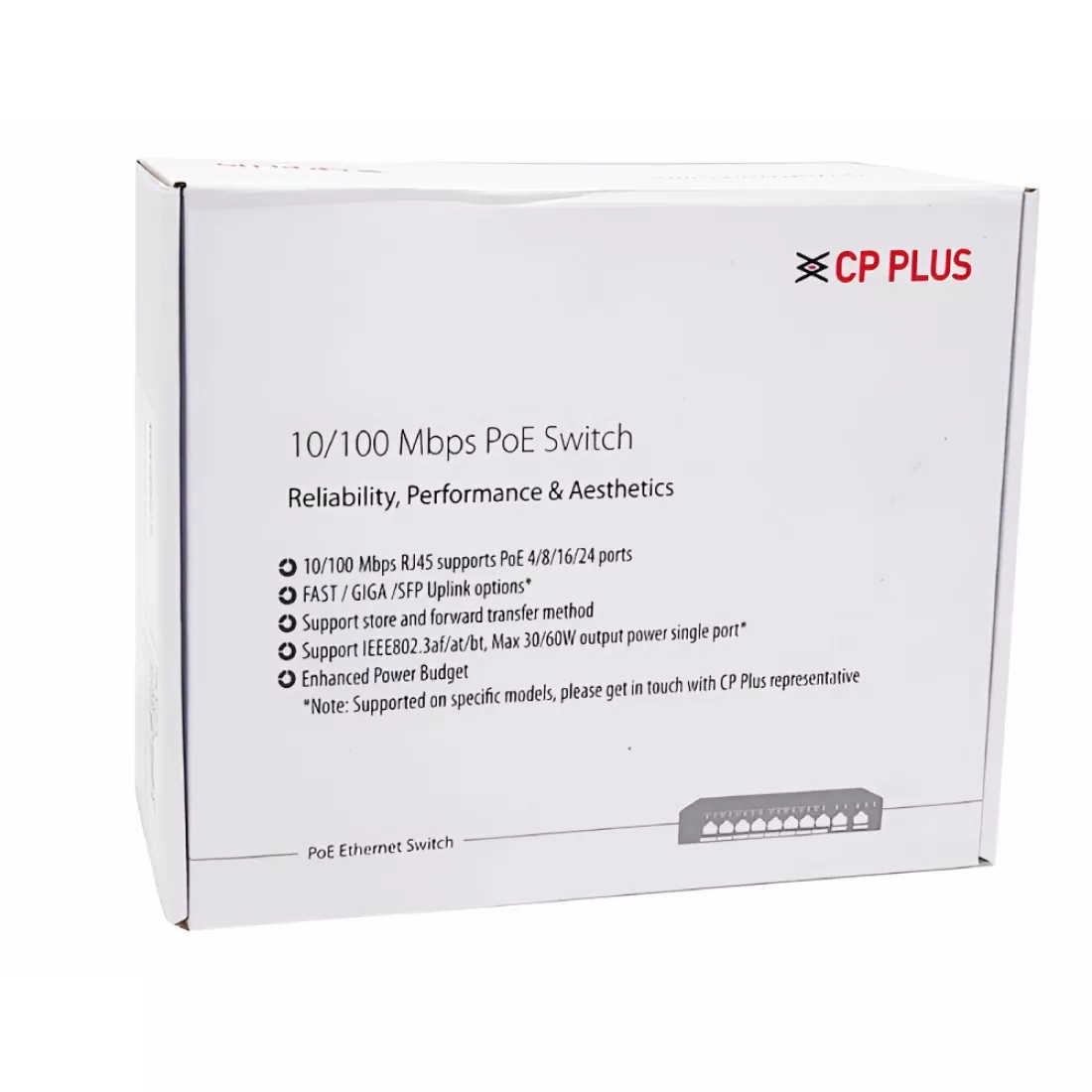

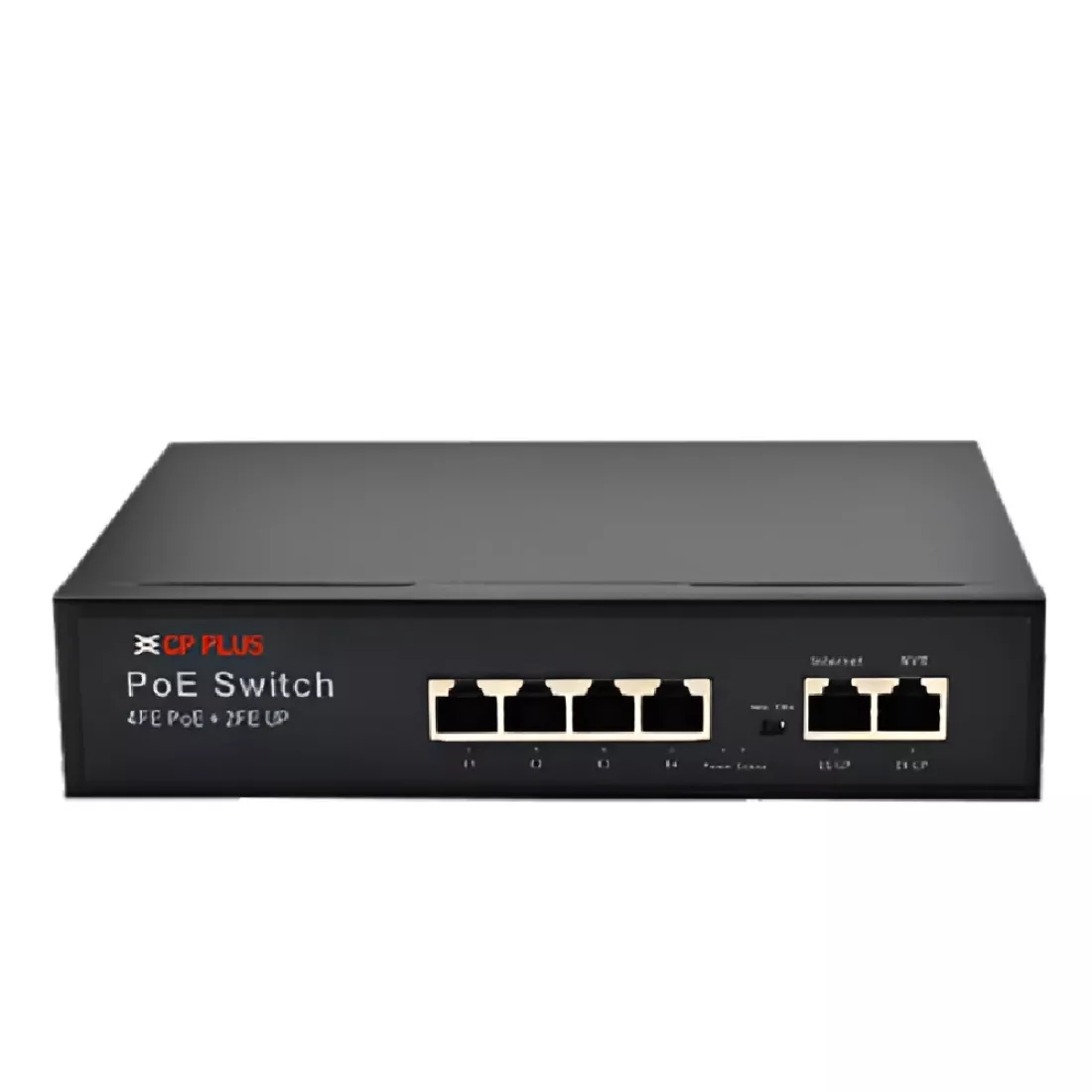

CP-Plus Poe Switch 4 Port (4 FE + 2 FE Port) CP-SAVW-HPU4H2-65
| Product Code | G0143 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
| Model | CP-SAVW-HPU4H2-65 |
| Warranty | 2 Years from CPPLUS Service Center |
| Product URL | View Product |
About This Product
CP-Plus PoE Switch 4 Port (4 FE + 2 FE Port) CP-SAVW-HPU4H2-65 is a high-quality Power over Ethernet switch designed for security and networking applications. It comes with 4 Fast Ethernet PoE ports and 2 additional uplink ports, providing efficient power and data transmission for IP cameras, wireless access points, and other PoE-enabled devices. With plug-and-play installation, it offers easy setup and reliable operation without any configuration. Available at Golchha Computer, this CP-Plus CP-SAVW-HPU4H2-65 PoE switch ensures stable connectivity, excellent performance, and energy-efficient operation — making it ideal for CCTV and small business network solutions.
🌐 PoE Network Switch | 4× 10/100 Mbps PoE RJ45 Ports + 2× 10/100 Mbps RJ45 Ports | Extend Mode Up to 250m | Store & Forward
| Specification | Details |
|---|---|
| PoE Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.1w Spanning Tree, IEEE 802.3x Flow Control |
| Data Transmission Ports | 4 × PoE RJ45 (10/100 Mbps) 2 × RJ45 (10/100 Mbps) |
| Transmission Rate | 10/100 Mbps Auto-Negotiation |
| Transmission Distance | 10Base-T: ≤250 m (Extend Mode) 100Base-TX: ≤100 m (Standard Mode) |
| Forwarding Mode | Store and Forward |
| Transmission Mode | Half/Full Duplex Supported |
| MAC Address Table | 4K Entries |
| Case Space (Buffer) | 768 Kb |
| Jumbo Frame | 204 Bytes |
| Packet Forwarding Rate | 1.488 Mpps @ 64 Bytes |
| Bandwidth | 2 Gbps |
| Power Indicator (PWR) | Green LED |
| Ethernet Indicator | Green LED per Ethernet Port |
| DIP Switch Modes |
Standard Mode (100m): All ports can communicate freely. Extend Mode (250m): Ports 1-4 isolated from each other; can communicate with ports 5-6. |
| Power Input | AC 100–240V, 50 Hz |
| Power Consumption | Standby ≤ 3W, Full ≤ 96W |
| PoE Pin Definition | 1/2+ (Positive), 3/6- (Negative) |
| Max Power per Port | ≤ 25.4W |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 5% to 95% Non-condensing |
| Dimensions (W × D × H) | 201 × 140 × 44 mm |
| Weight | 0.7 kg |
🔌 This PoE switch offers flexible data and power transmission with extended range up to 250 meters in Extend Mode. Ideal for IP cameras, VoIP phones, and other PoE devices requiring stable power and connectivity.
