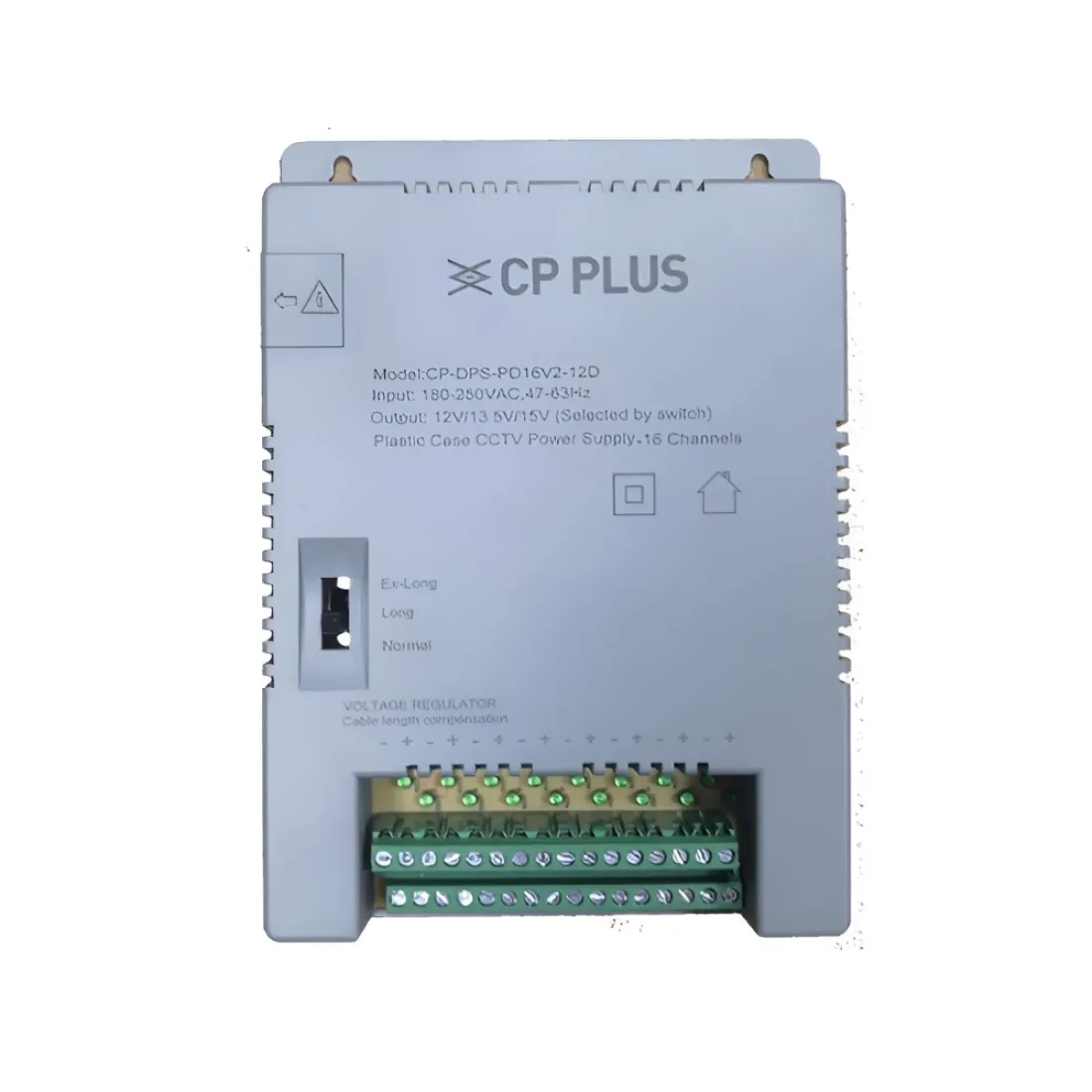

CP-Plus CCTV Power Supply Eco 16ch 12v/20a (PD16V2)
Product Dispatch within 24-96 Hours| Product Code | G2324 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
About This Product
CP-Plus CCTV Power Supply Eco 16ch 12v/20a (PD16V2) is a robust power supply unit designed to deliver stable 12V/20A output across 16 channels, making it ideal for powering multiple CCTV cameras simultaneously. Its reliable performance and efficient power distribution ensure consistent operation of surveillance systems. Available at Golchha Computer, this CCTV power supply provides a dependable and practical solution for Indian customers.
⚡ 12V 8A 96W Industrial SMPS Power Supply | Wide AC Input | Regulated Output | Heavy Duty
| Specification | Details |
|---|---|
| Input Voltage | 180~264V AC |
| Output Voltage | 12V DC |
| Current Range | 0~8A |
| Rated Power | 96W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adjustment Range | 11.4 ~ 12.6V |
| Line Regulation | ±1.0% |
| Setup Rise Time | 2500ms, 15ms at full load |
| Hold Up Time | 35ms at full load |
| Load Regulation | 5.0% |
| Temp. Coefficient | 0.03%/°C (0~50°C) |
| Frequency Range | 47~63Hz |
| Efficiency (Typical) | 86% |
| AC Current (Typical) | 2A @ 220VAC |
| Inrush Current (Cold Start) | 50A @ 220V AC |
| Leakage Current | <2mA @ 240VAC |
| Overload Protection | 110~200% rated output power, shuts down output, auto recovery |
| Isolation Resistance | 100M Ohms / 500VDC @ 25°C, 70% RH |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Vibration | 10~500Hz, 3G, 10min/cycle, 60min each axis (X,Y,Z) |
| Dimension | 186 × 130.5 × 39 mm |
| Working Temperature | -20 ~ +45°C |
| Storage Temperature | -20 ~ +85°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
🔌 A robust industrial-grade SMPS power supply offering 12V DC regulated output at up to 8A current. Perfect for CCTV, LED strips, access control systems, and industrial equipment requiring reliable and efficient DC power.
📞 For any enquiry or bulk order, contact Mr. Tarun Jain at +91-8385030152 (Call or WhatsApp)
