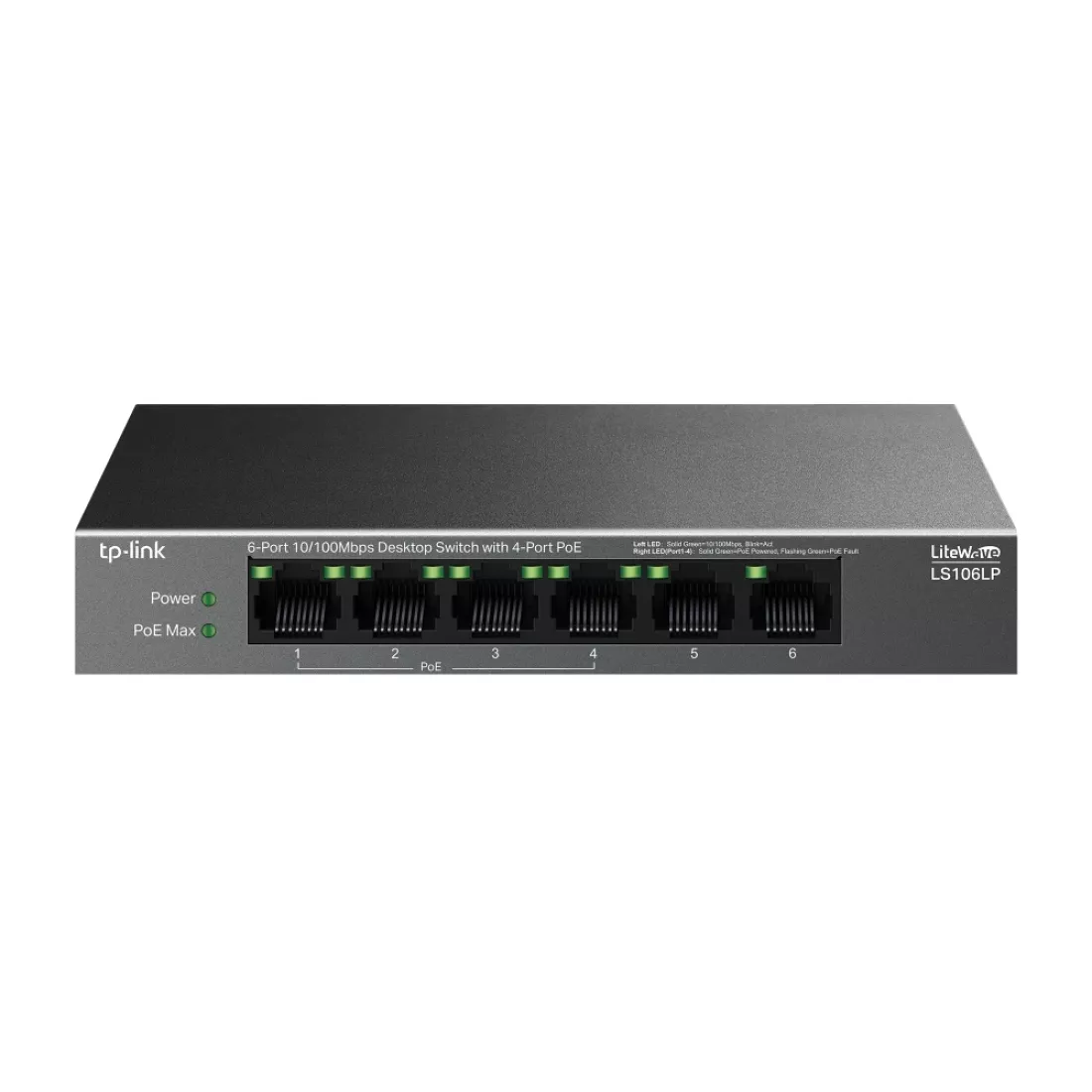

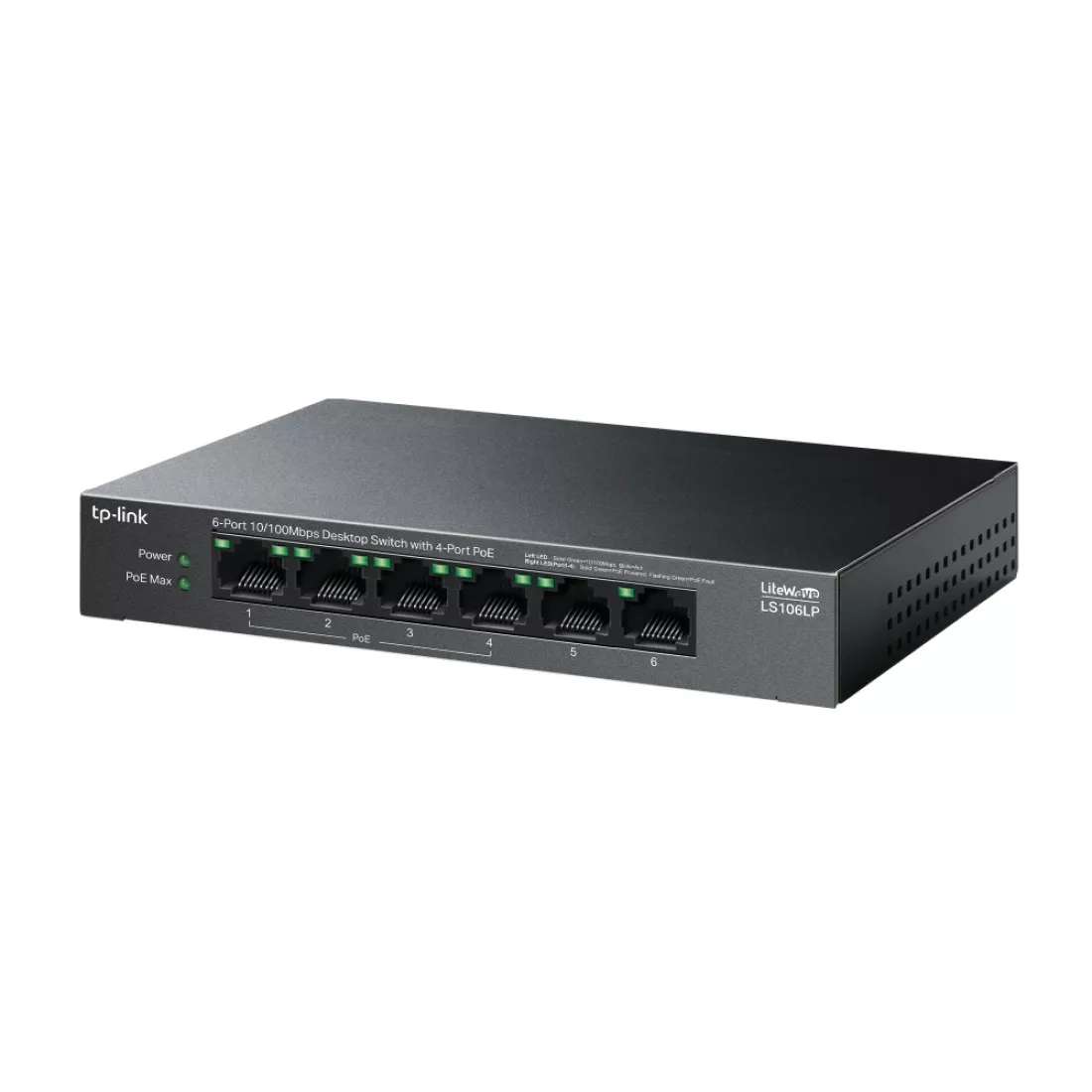

TP-Link Poe Switch 4 Port (4 FE + 2 FE Port) LS106LP
₹1440.00
(All Inclusive Taxes)
| Product Code | G517 |
| Brand | TP-LINK |
| Model | LS106LP |
| Warranty | 3 Years from TP LINK Service Center |
| Product URL | https://www.tp-link.com/in/business-networking/soho-switch-poe/ls106lp/ |
Upgrade your network with the TP-Link LS106LP 6 Port PoE Switch, a cost-effective solution for businesses of all sizes. This reliable desktop switch offers seamless connectivity with its 10/100 Mbps Fast Ethernet ports, making it perfect for small offices, retail spaces, or home networks. Power over Ethernet (PoE) capability simplifies installations by providing power and data through a single cable to compatible devices like IP cameras or VoIP phones. The TP-Link LS106LP is a robust and easy-to-use Ethernet switch, ideal for expanding your network quickly and affordably. Its compact design makes it perfect for desktop deployment, saving valuable space. As a Golchha Computer Rajasthan TP-Link authorized seller, we offer this high-quality network hardware at unbeatable wholesale prices. Take advantage of our bulk discounts and streamline your network infrastructure with the TP-Link LS106LP. Perfect for businesses looking for reliable, affordable, and easy-to-manage online network switches. Contact us today for bulk purchase inquiries or to learn more about our competitive pricing for this essential piece of network hardware. Secure your business's connectivity now.
| Feature | Specification |
|---|---|
| Interface | • 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W |
| LED Indicator | • Power • Link/Act • PoE Status • PoE MAX |
| Dimensions ( W x D x H ) | 6.2×4.0×1.0 in (158×101×25 mm) |
| Max Power Consumption | • 2.53 W (220 V/50 Hz no PD connected) • 47.76 W (220 V/50 Hz with 41 W PD connected) |
| Max Heat Dissipation | • 8.61 BTU/h (220 V/50 Hz no PD connected) • 162.38 BTU/h (220 V/50 Hz with 41 W PD connected) |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.8928 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |

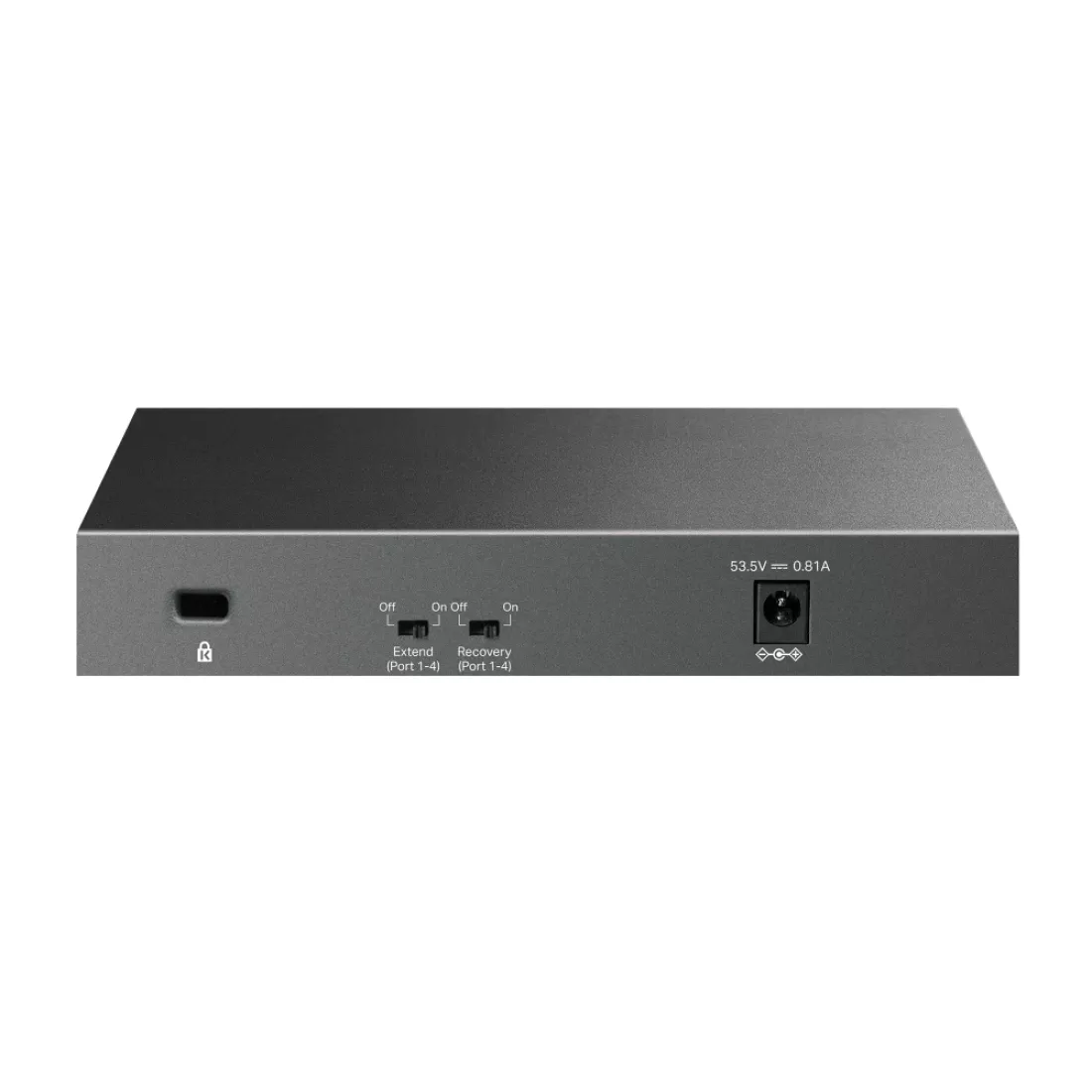

| Advanced Features | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology |
| Transfer Method | Store and Forward |
| Certification | CE, FCC, RoHS |

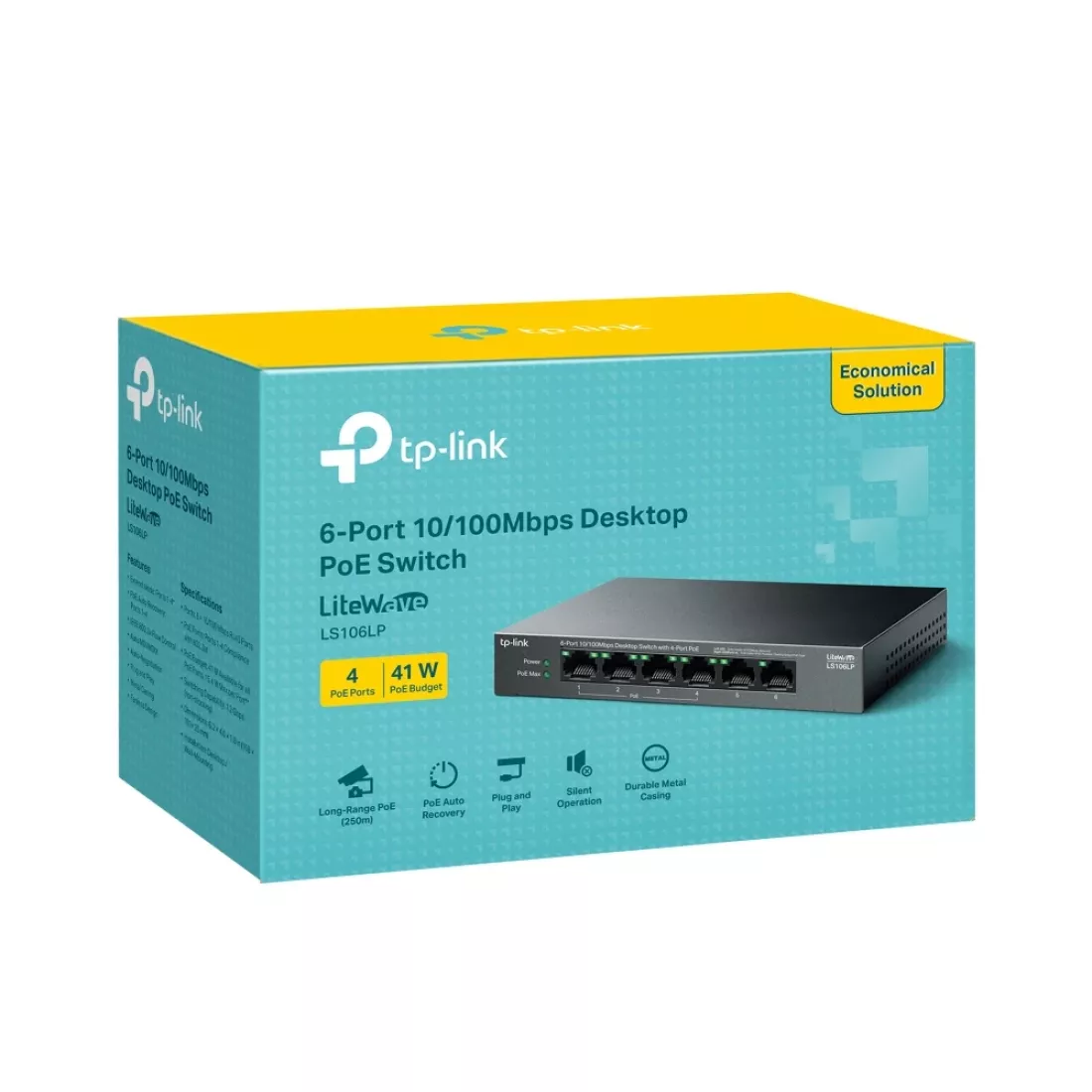

| Package Contents | • LS106LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Additional Notes | *PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type. |
