| HARDWARE FEATURES |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 × 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 Gigabit SFP Ports |
| Network Media | - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
|
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |

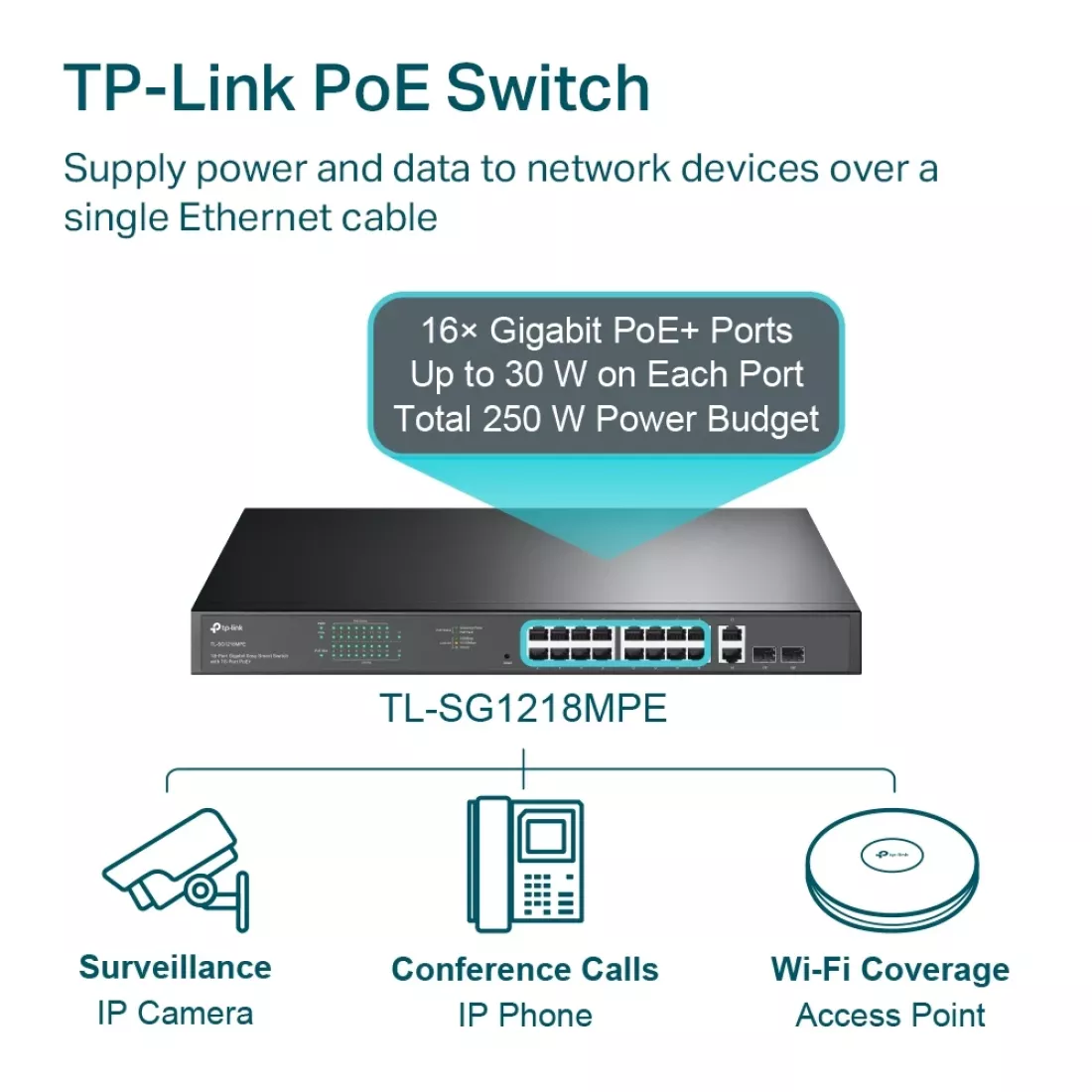

| PoE+ Ports (RJ45) | Standard: 802.3at/802.3af compliant, 16 Ports, 250W Power Supply |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 18.73 W (no PD connected), 217.22 W (with 250W PD connected) |
| Max Heat Dissipation | 63.89 BTU/h (no PD connected), 741.15 BTU/h (with 250W PD connected) |
| PERFORMANCE |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES |
| Quality of Service | - Support Port-based 802.1p/DSCP priority
- 4 priority queues
- Rate Limit
- Storm Control
|
| L2 Features | - IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
|

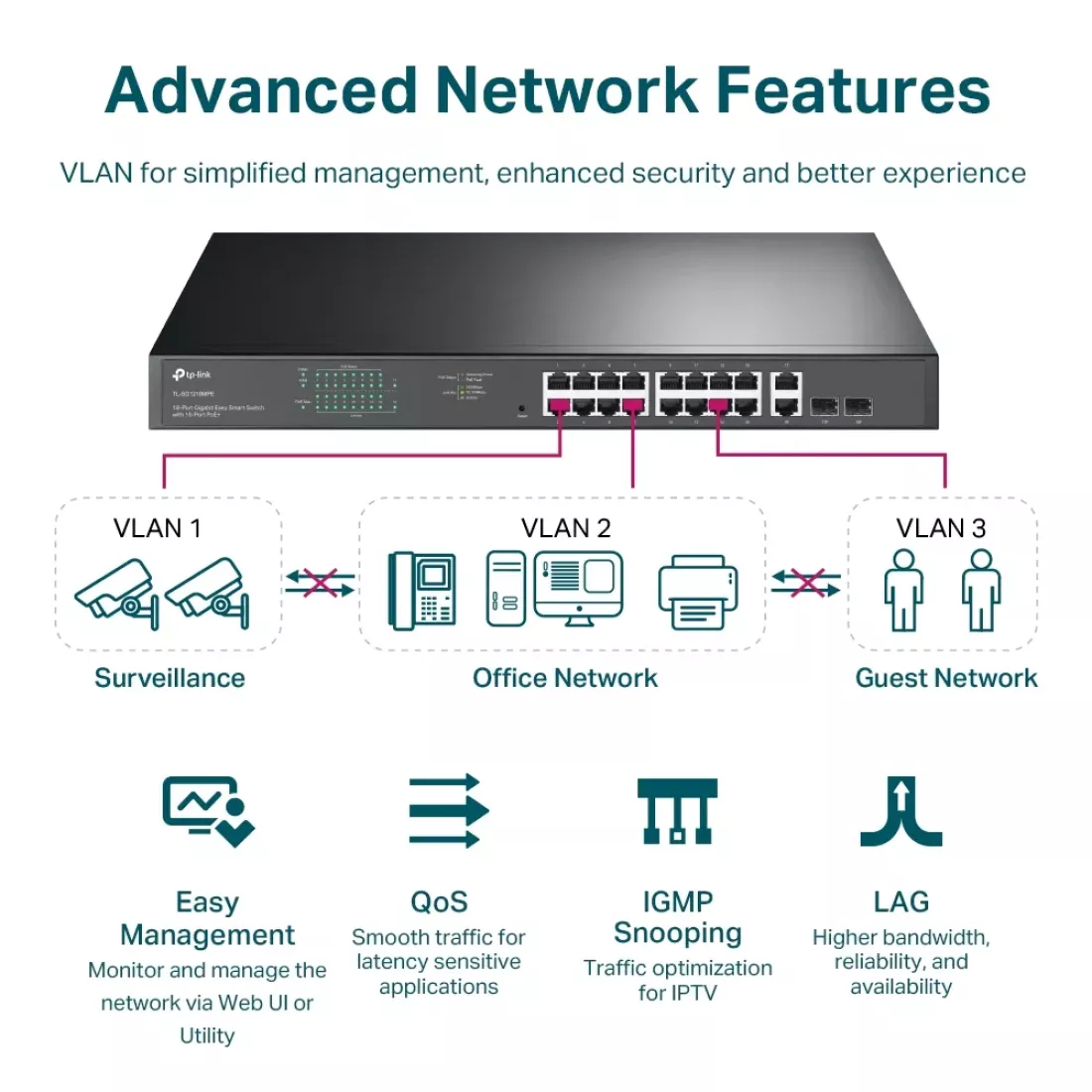

| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
| Management | Web-based GUI, Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | - TL-SG1218MPE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
|
| Environment | - Operating Temperature: 0–50 °C (32–122 °F)
- Storage Temperature: -40–70 °C (-40–158 °F)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
|
