CP-Plus Poe Switch 8 Port Outdoor (8 FE+ 2 FE Port)
Product Dispatch within 24-96 Hours| Product Code | G0687 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
| Model | CP-ANW-HPU8H2D-N12 |
| Warranty | 2 Years from CPPLUS Service Center |
| Product URL | View Product |
About This Product

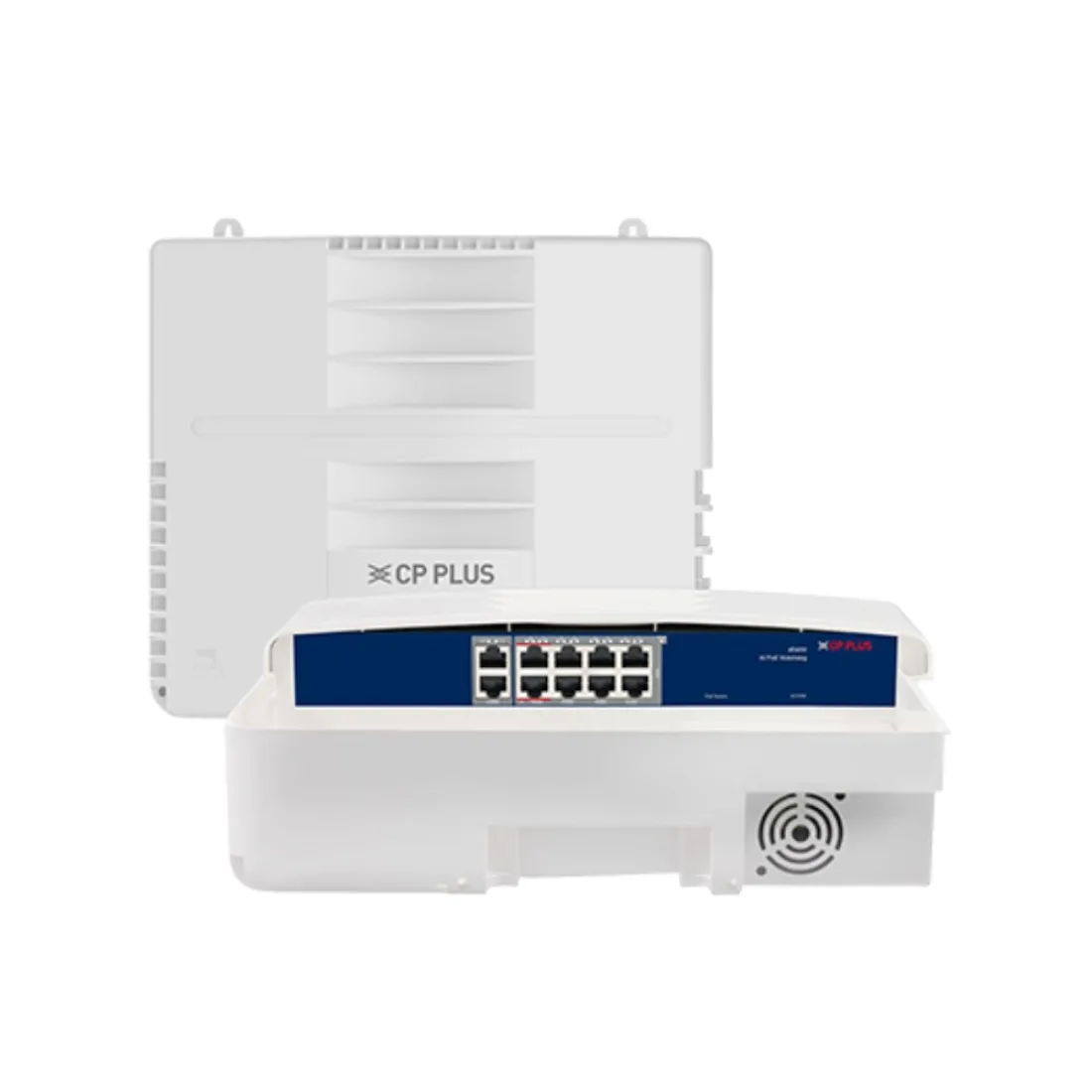

CP-Plus PoE Switch 8 Port Outdoor (8 FE + 2 FE Port) is a rugged and weatherproof Power over Ethernet switch designed for outdoor CCTV and networking applications. It features 8 Fast Ethernet PoE ports and 2 uplink Fast Ethernet ports, providing efficient data transmission and power supply to IP cameras and PoE-enabled devices. Built with an outdoor-grade enclosure, it offers protection against dust, rain, and harsh environmental conditions. Available at Golchha Computer, this CP-Plus Outdoor PoE switch ensures stable performance, reliable connectivity, and durable operation — making it perfect for outdoor surveillance and industrial network installations.
🌐 8-Port PoE Network Switch with 2 High-Power BT Ports | 120W PoE Budget | Extended Range | IEEE 802.3af/at/bt Support
| Feature | Specification |
|---|---|
| Network Ports |
PoE Ports 1–6: 10/100 Mbps RJ45 PoE Ports 7–8: 10/100 Mbps RJ45, support BT 60W high power |
| Uplink Ports | 10/100 Mbps RJ45 |
| Network Standards |
IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet |
| Transmission Rate |
200 Mbps Full Duplex; 10 or 100 Mbps Half Duplex |
| Transmission Distance |
Ports 1–2: 250 m @ 10 Mbps Ports 3–8: 130 m @ 100 Mbps |
| MAC Address List | 2K entries |
| Bandwidth | 2.0 Gbps |
| Network Latency | ≤16 μs (10 to 100 Mbps, 64-byte packets) |
| Frame Filter & Transmission Rate |
Max 14,800 pps for 10 Mbps ports Max 148,800 pps for 100 Mbps ports |
| Power Budget | 120 W Total |
| Power Input | AC 180–240 V, Total ≤ 120 W |
| Power Output Pin Definition |
PoE Ports 1–6: 1/2 (+52V), 3/6 (GND) ≤ 30 W per port PoE Ports 7–8: 12/45 (+53V), 36/78 (GND) compatible with 1/2 (+52V), 3/6 (GND) ≤ 60 W per port |
| Watchdog | Ports 1–8 |
| Lightning Protection | 6 KV (IEC61000-4-5) |
| ESD Protection | 8 KV (IEC61000-4-2) |
⚡ High power 8-port PoE switch featuring 2 BT ports delivering up to 60W each, ideal for powering demanding devices with extended reach up to 250 meters on select ports. Robust protections ensure network stability and device safety.
