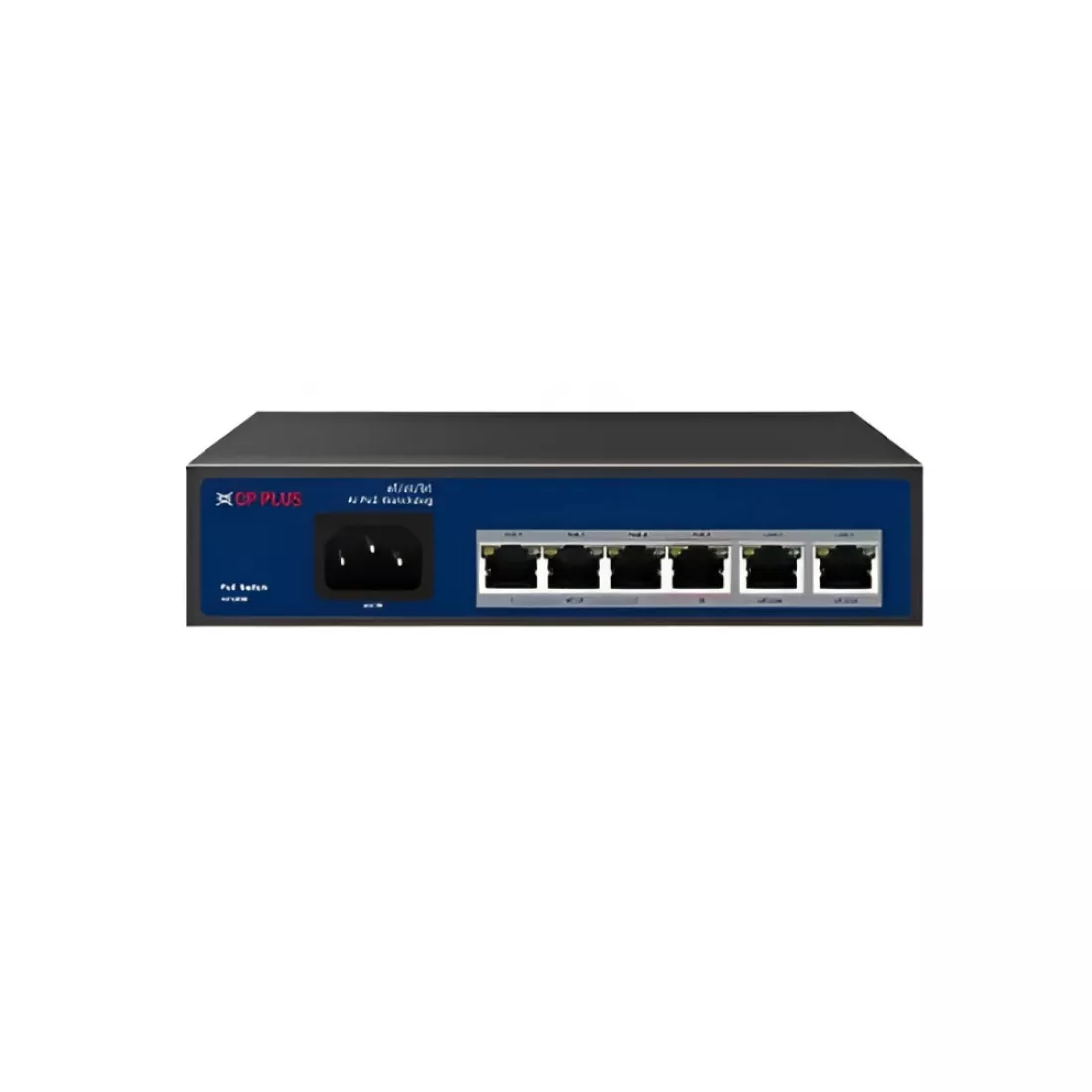

CP-Plus Poe Switch 4 Port (4 FE + 2 FE Port) CP-DNW-HPU4H2-48-V2
Product Dispatch within 24-96 Hours₹1035.00
(All Inclusive Taxes)
| Product Code | G6636 |
| Brand | CP PLUS |
Cash on Delivery (COD) facility is now available. No Returns.
| Model | CP-DNW-HPU4H2-48-V2 / CP-ANW-HP4H2-N65 |
| Warranty | 2 Years from CPPLUS Service Center |
| Product URL | View Product |
About This Product
CP-Plus PoE Switch 4 Port (4 FE + 2 FE Port) is a compact and efficient Power over Ethernet switch designed for small office and surveillance network setups. It features 4 Fast Ethernet PoE ports and 2 additional Fast Ethernet uplink ports, providing seamless connectivity and power supply to IP cameras, access points, and other PoE-enabled devices. The plug-and-play design ensures quick installation without any configuration. Available at Golchha Computer, this CP-Plus PoE switch offers reliable performance, stable data transmission, and energy-efficient operation for small-scale networking and security applications.
⚡ 4-Port PoE Switch | 2 Uplink Ports | 48W Budget | Extend Mode | Surge Protected
| Specification | Details |
|---|---|
| Network Ports | 4 × 10/100 Mbps RJ45 (PoE); Max. 30W Output per Port |
| Uplink Ports | 2 × 10/100 Mbps RJ45; Distance: 0–100m |
| Switch Capacity | 1.2 Gbps (Non-blocking) |
| Forwarding Rates | 0.1488 Mbps/port |
| PoE Standard | IEEE802.3 / 802.3u / 802.3x |
| PoE Power Supply | 1/2(+), 3/6(-) |
| Transmission Distance | 0–100m @ 100Mbps Up to 250m @ 10Mbps in Extend Mode |
| MAC Address List | 2K |
| PoE Power Budget | 48W Total |
| Lightning Protection | Supported |
| ESD Protection | Air: 8KV, Contact: 6KV |
| Power Consumption | < 5W |
| Power Source | Built-in Power Supply; Input: 100–240V AC, 50/60Hz |
| LED Indicators |
PoE Port: Green off: No link Green on: Link active Green flashing: Data transmitting Power: Light on: Powering, Light off: No power |
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 5%–95%, non-condensing |
| Storage Temperature | -40°C ~ 70°C |
| Dimensions | 200mm × 118mm × 44mm (L × W × H) |
📦 This 4-Port PoE switch is a compact and energy-efficient solution for powering PoE-enabled devices such as IP cameras or VoIP phones. Supports long-distance transmission up to 250m with surge and ESD protection for robust deployments.
