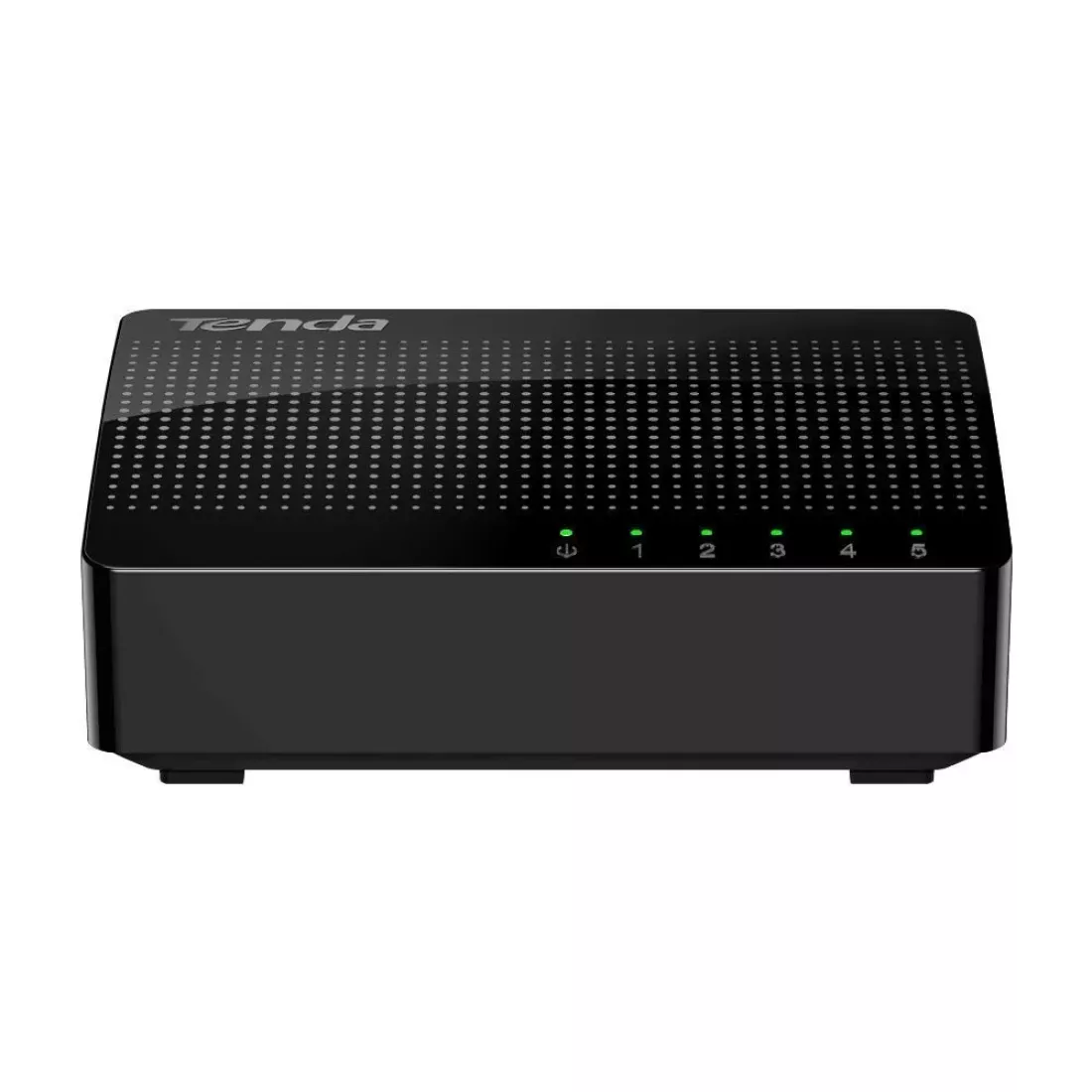

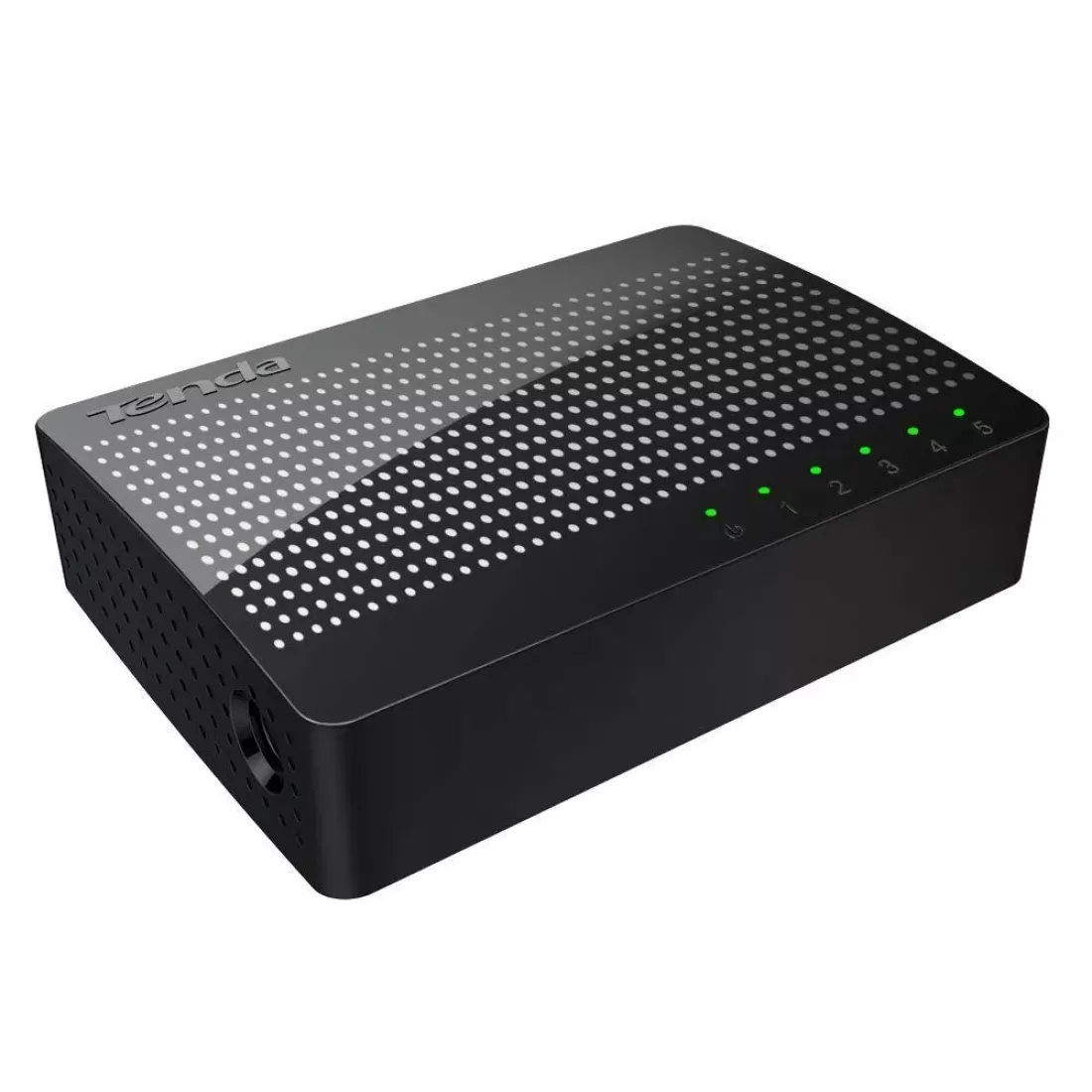

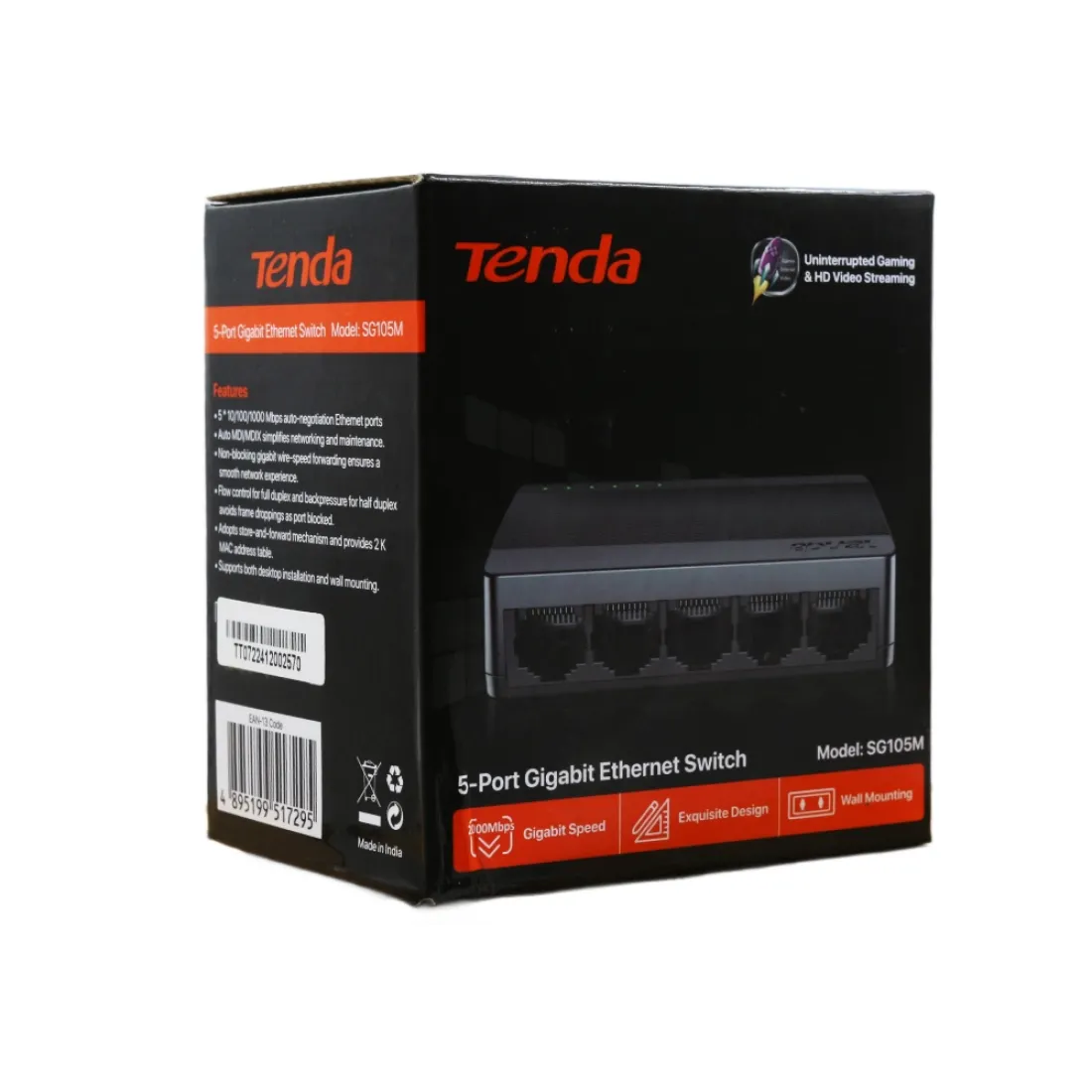

Tenda 5 Port Gigabit Lan Desktop Switch 10/100/1000 Mbps SG105M
Product Dispatch within 24-96 Hours₹1080.00
(All Inclusive Taxes)
| Product Code | G303 |
| Brand | TENDA |
Cash on Delivery (COD) facility is now available.
| Model | SG105M |
| Warranty | 3 years from TENDA Service Center |
| Product URL | https://www.tendacn.com/product/specification/SG105M.html |
| Specification | Details |
|---|---|
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| LED Indicator |
One Link/Act LED indicator for each Gigabit port One Power LED indicator for each device |

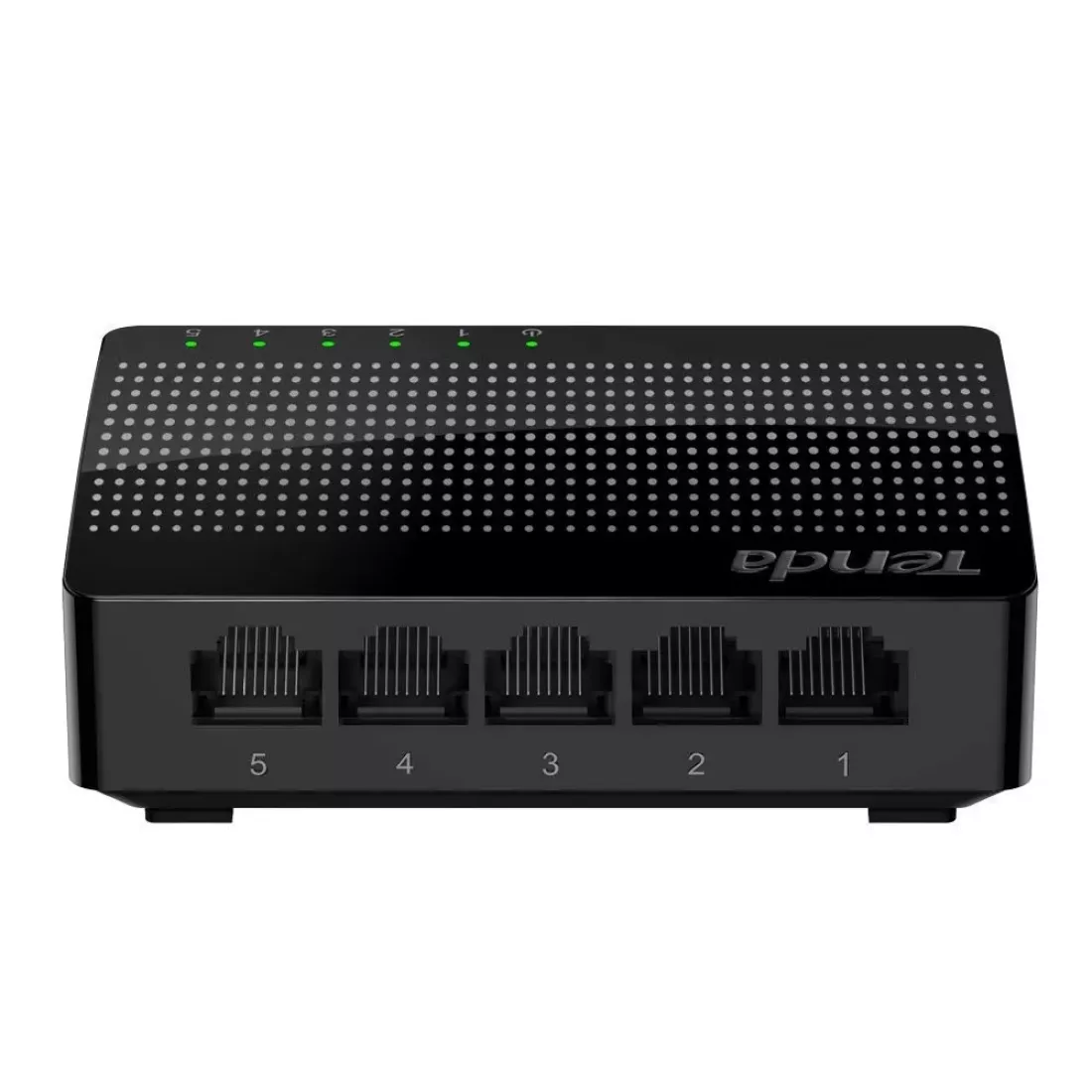

| Interfaces | 5*10/100/1000Base-T Ethernet ports |
| Transmission Media |
Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Dimensions | 82mm x 52mm x 22mm (L x W x H) |
| Material | Plastic |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Buffer | 1 Mb |
| MAC Address Table | 2K |
| Jumbo Frame | 15K |
| Power |
Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A (External Power Adapter) |
| Power Consumption | Max: < 1.7W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting: non-support |
| Environment |
Operating temperature: 0°C - 45°C Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| MAC Address Learning | Auto-learning and Auto-Updating |
| Functions | Plug-and-play |
