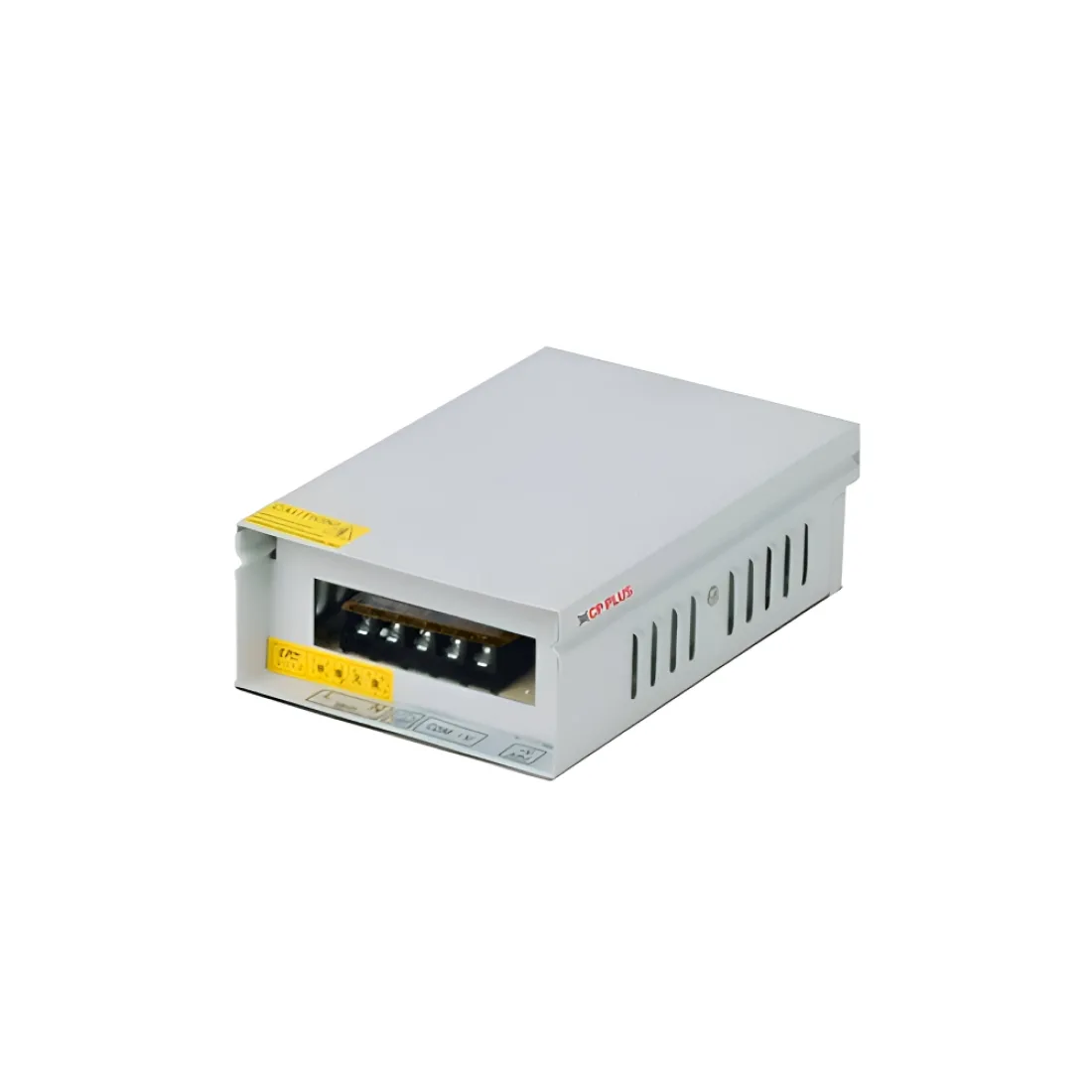

CP-Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)

Product Dispatch within 24-96 Hours

₹600.00

(All Inclusive Taxes)

Product CodeG1856
BrandCP PLUS

Cash on Delivery (COD) facility is now available.
ModelCP-DPS-MD50P-12D
Warranty2 Year from CPPLUS Service Center
Product URLhttps://www.cpplusworld.com/cp-dps-md50p-12d

Power your security system with this High-Quality CCTV Power Supply, a reliable and affordable solution for your business needs. This CPplus 4CH Power Supply offers a robust 12V 5A output, perfect for powering up to four of your premium metal CCTV cameras. As a leading supplier of CPplus CCTV Accessories, Golchha Computer Rajasthan offers this essential component at the best price for bulk orders. This Security Camera Power Supply is built to last, ensuring uninterrupted performance for your Home Security Products. Ideal for installers and businesses, this CCTV Power Supply provides a stable power source for your surveillance cameras. The premium metal construction ensures durability and longevity. Save money by buying in bulk and receive our unbeatable B2B pricing. Upgrade your security system today with this dependable and cost-effective solution. Contact us for bulk pricing and to place your order. Get the best value for your CCTV power needs.

FeatureSpecification
Input Voltage180~264VAC
Output Voltage12V DC
Current Range0~5A
Rated Power60W
Ripple & Noise (max.)100mVp-p
Voltage Adjustment Range11.4~13.2V
Line Regulation±1.0%
Voltage Tolerance±2.0%
Setup Rise Time600ms, 30ms at full load
Hold Up Time (Typ.)13ms at full load
Load Regulation±5.0%
Temperature Coefficient±0.03%/°C (0~50°C)
Frequency Range47~63Hz
Efficiency (Typ.)84%
AC Current (Typ.)5A/115VAC, 3A/230VAC
Inrush Current (Typ.)20A/115VAC, 40A/230VAC
Leakage Current<2mA / 240VAC
Over Load110~200% rated output power, Protection type: Shut down O/P, re-power
Isolation ResistanceI/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity20~90% RH Non-condensing
Vibration10 ~ 500Hz, 3G 10min./1 cycle, 60min.each along X, Y, Z axes
Dimension156(L) x 103(W) x 47mm(H)
Storage Temperature-20~+85°C, 10~95%RH
Working Temperature-20~+40°C
Withstand VoltageI/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
