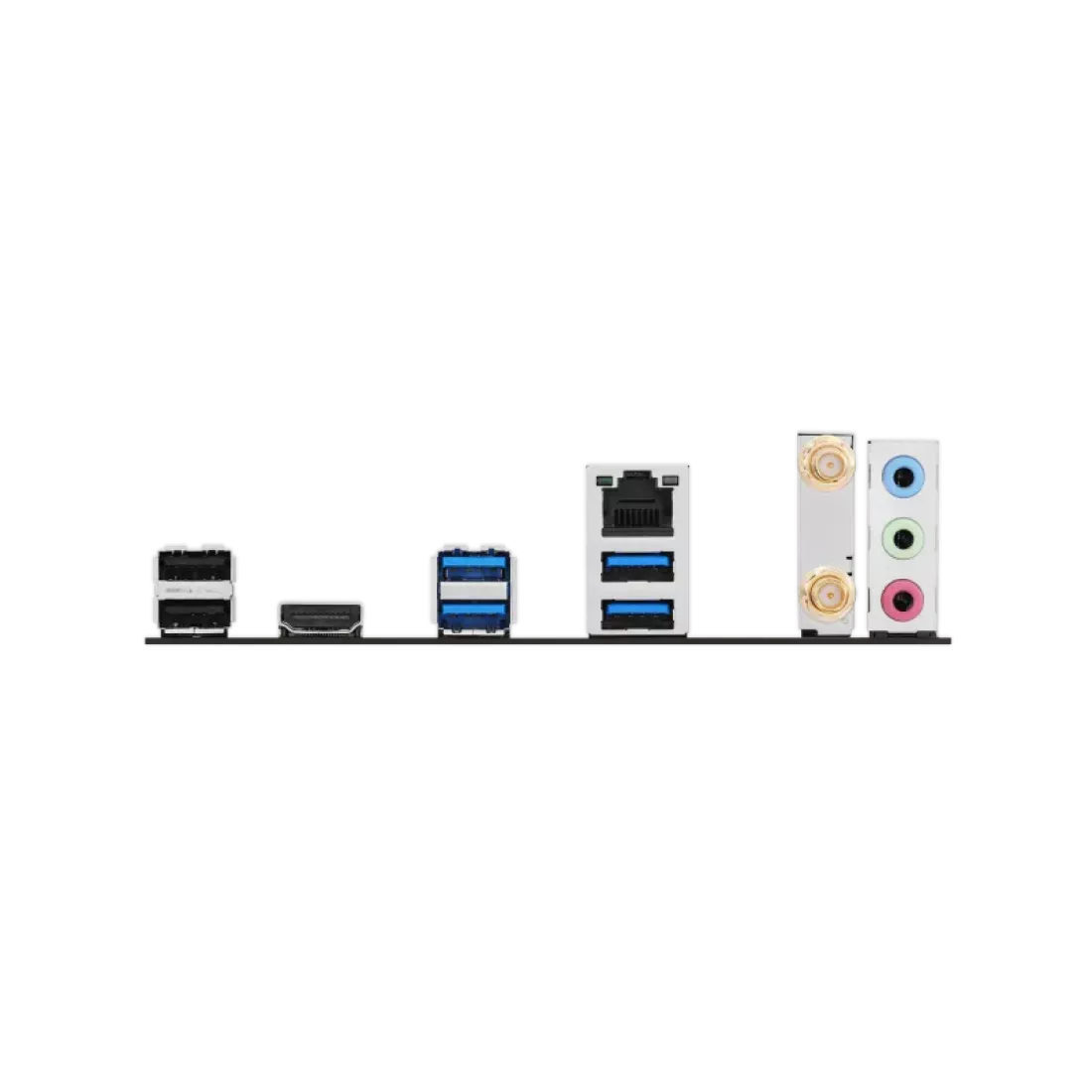

| USB Ports | 2 x USB 2.0 ports (type-A), 4 x USB 3.2 Gen 1 ports (Type-A) |
| HDMI Port | 1 x HDMI™ port |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wi-Fi | Wi-Fi 6 |
| Audio Jacks | 3 x Audio Jacks |
| Expansion Slots | 1 x PCIe 4.0 x16 slot2 x PCIe 4.0 x1 slots |
| Addressable Gen 2 Headers | 1 x Addressable Gen 2 header, 2 x Addressable Gen 2 headers |
| Power Connector | 8-pin ProCool connector |
| Memory Support | DDR5 support (Dual Channel) |
| Processor Socket | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| USB 3.2 Gen 1 Header | 1 x USB 3.2 Gen 1 header |
| M.2 Slots | 2 x M.2 slotsM.2_1 slot (Key M) 2280 (PCIe 4.0 x4 mode)M.2_2 slot (Key M) 2280 (PCIe 4.0 x4 mode) |
| SATA Ports | 4 x SATA 6Gb/s ports |
| USB 2.0 Header | 1 x USB 2.0 header |
