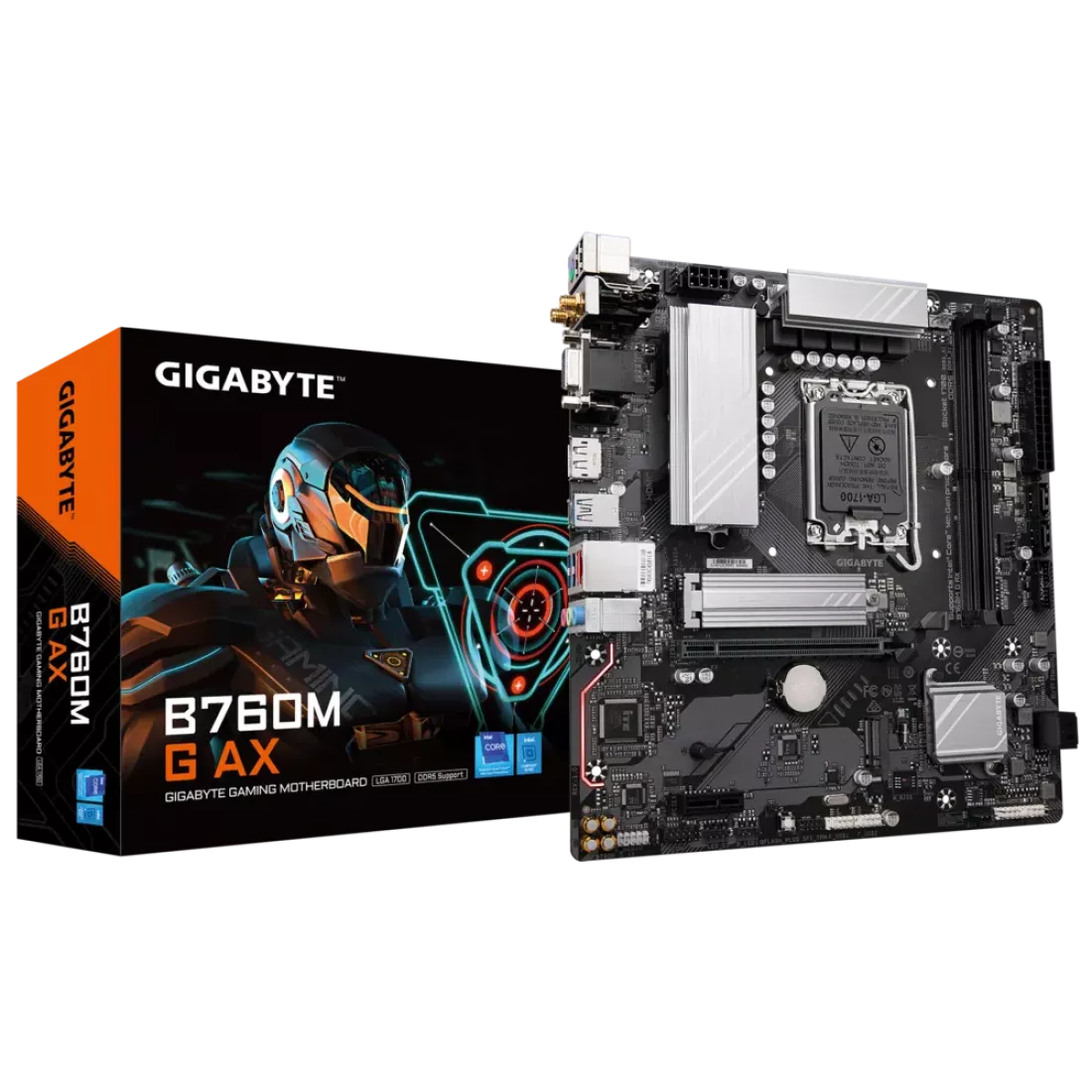

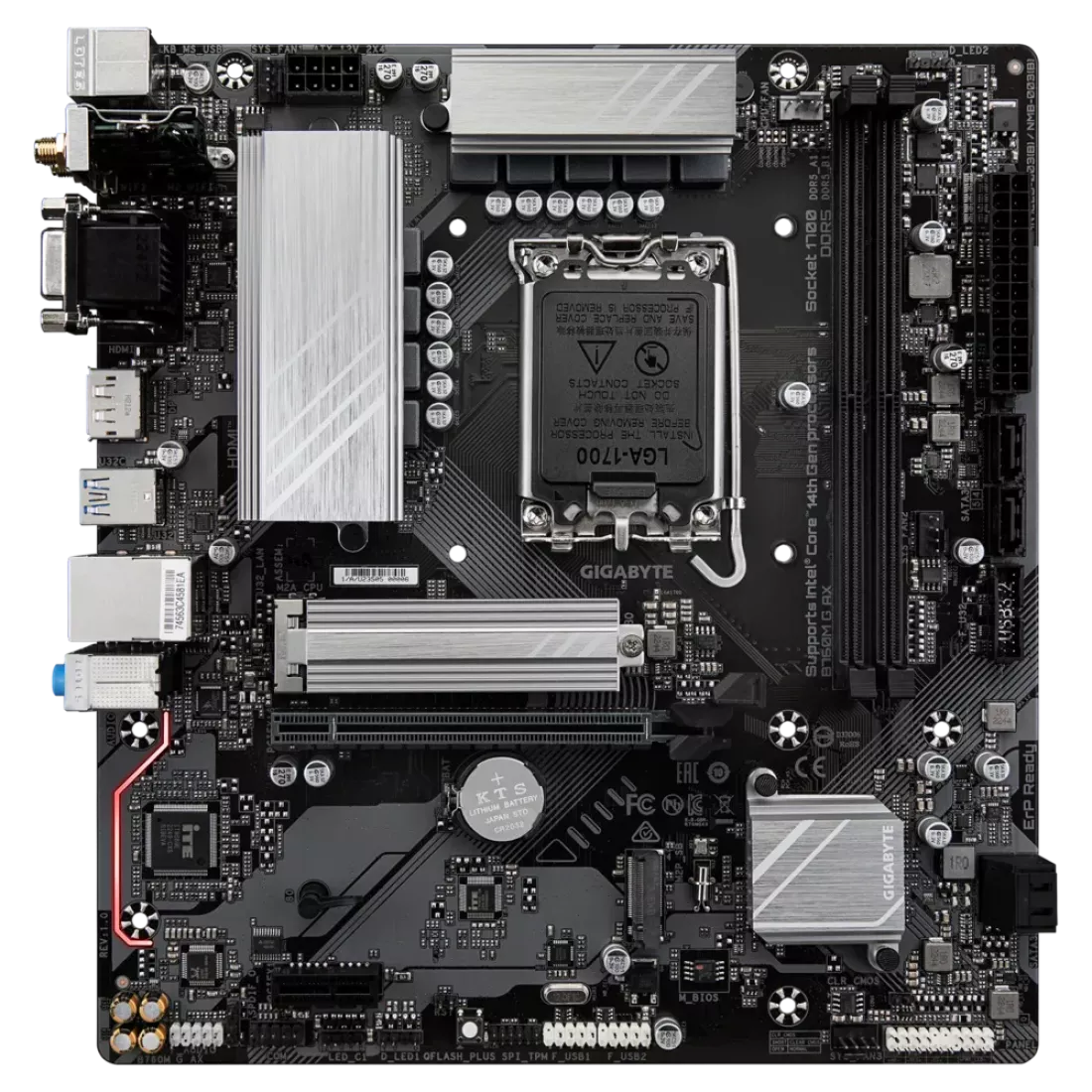

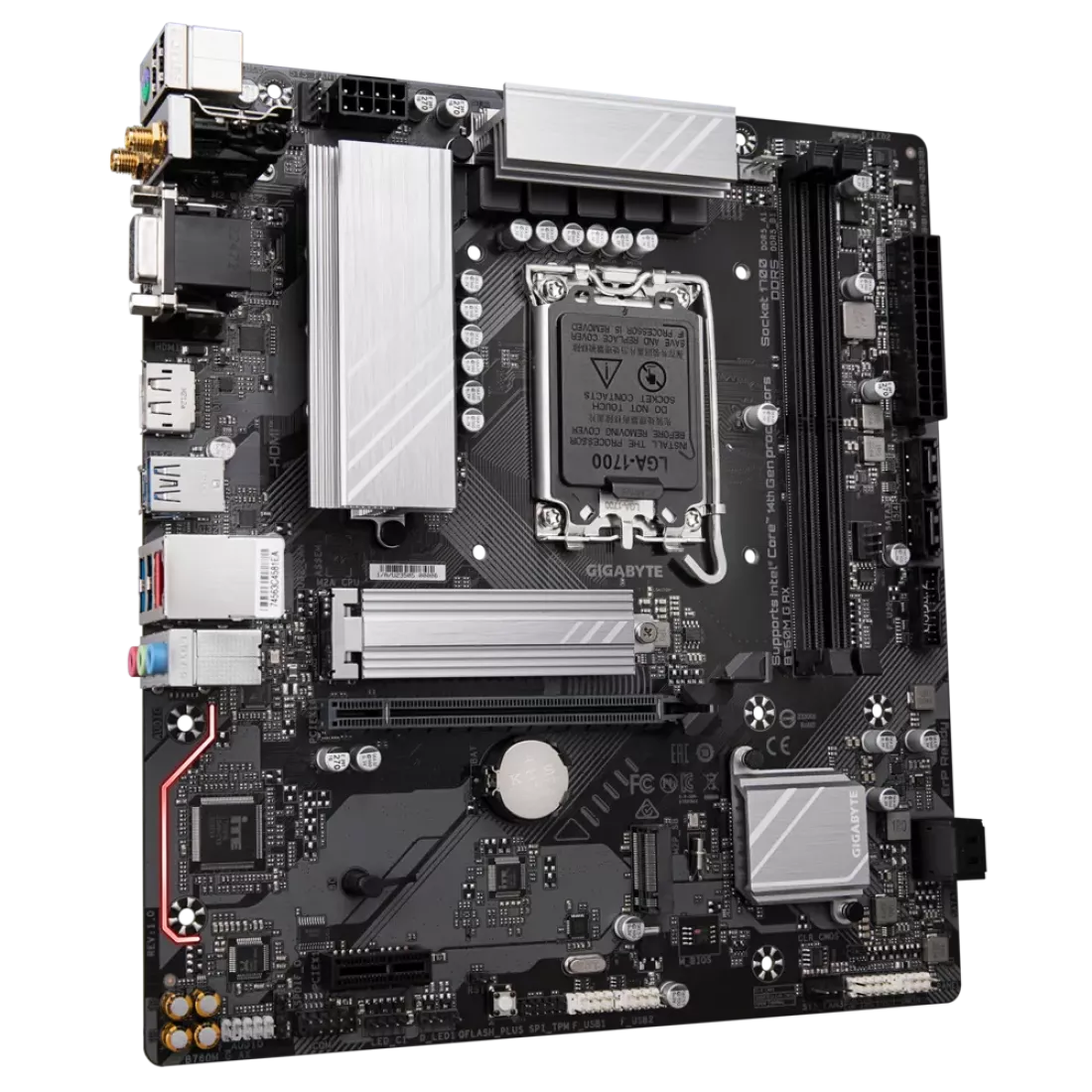

| Model | Gigabyte B760M G AX WIFI |
| CPU Support | Intel 12th / 13th / 14th Gen Core™, Pentium® Gold, and Celeron® Processors |
| Socket | LGA 1700 |
| Chipset | Intel B760 Express |
| Memory Support | 2 x DDR5 DIMM slots, up to 96GB, 8000(O.C.)~4000 MT/s |
| Graphics Interface | 1 x HDMI, 1 x DisplayPort (Graphics depends on CPU) |
| Expansion Slots | 1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0) |
| Storage | 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s |
| LAN | 1 x Realtek 2.5GbE LAN |
| Wireless | Intel Wi-Fi 6E & Bluetooth 5.3 |
| Audio | Realtek Audio Codec, 7.1-channel HD Audio |

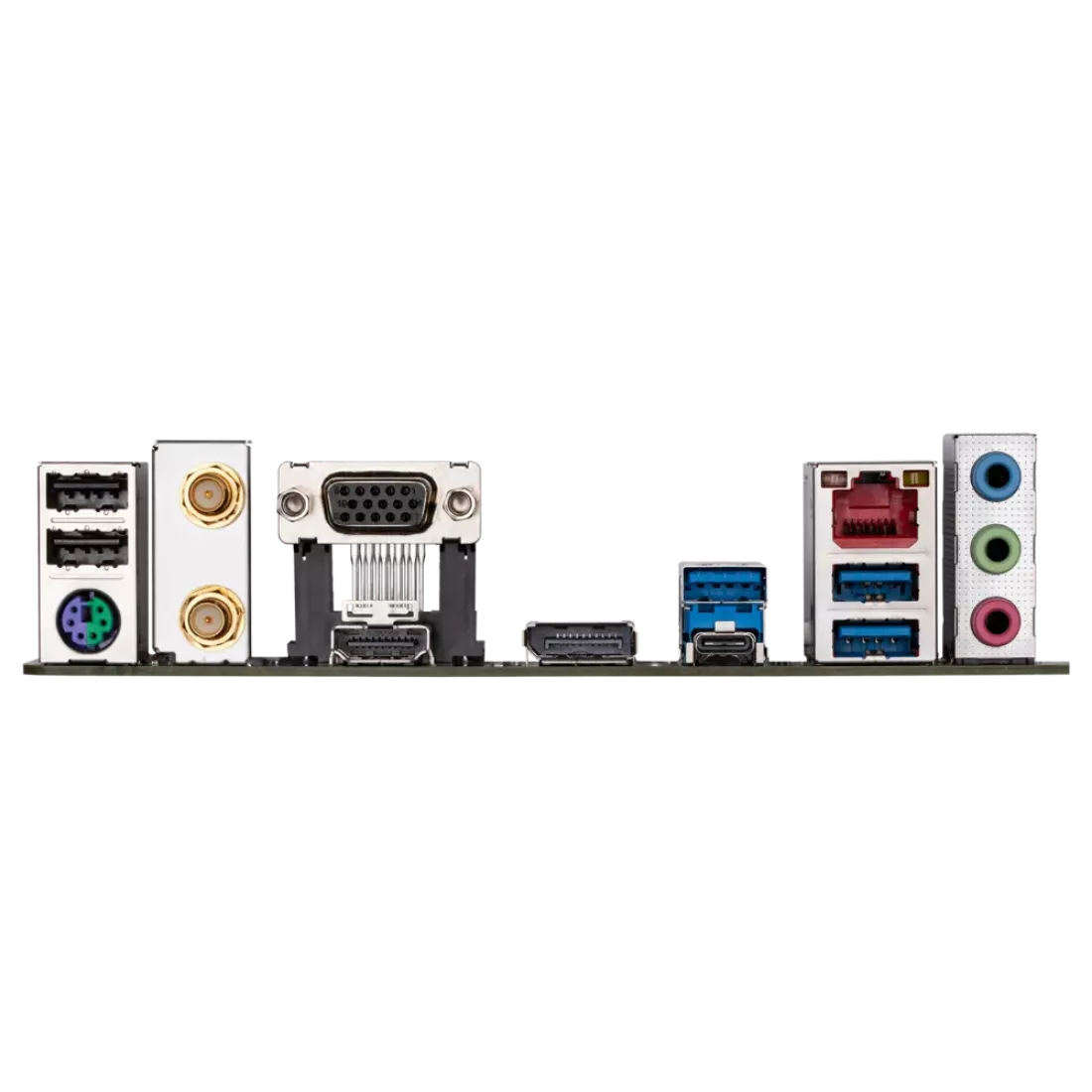

| USB Ports | USB 3.2 Gen 2, Gen 1, USB 2.0 (rear & internal headers) |
| Form Factor | Micro-ATX |
