| CPU Support | LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. |
| Chipset | Intel® B760 Express Chipset |
| Memory | - 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity)
- Supports DDR5 8000(O.C.) to 4000 MT/s
- Dual channel architecture
- Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
- Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Supports XMP memory modules |

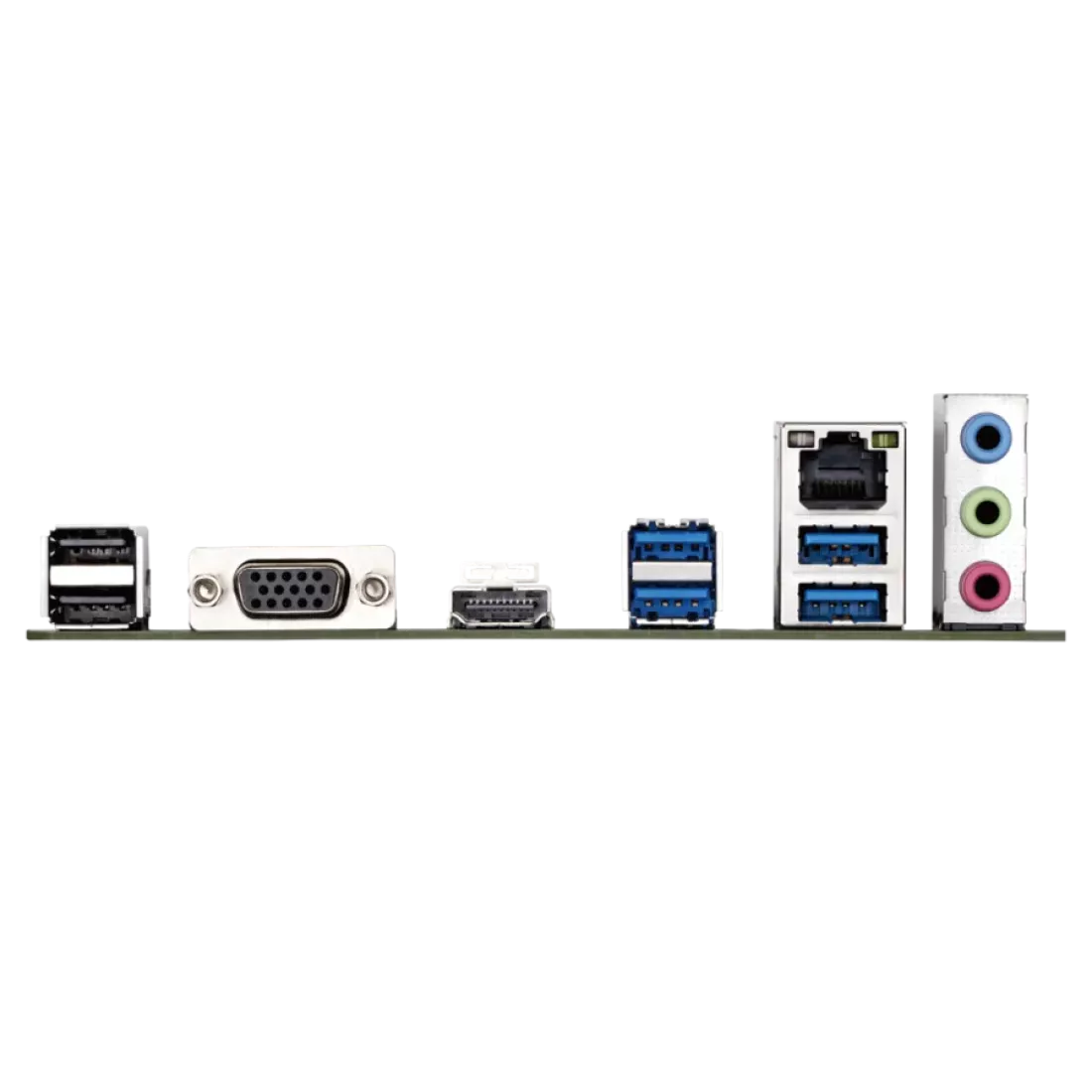

| Onboard Graphics | Integrated Intel® HD Graphics:
- 1 x D-Sub (max 1920x1200@60Hz)
- 1 x HDMI (max 4096x2160@60Hz)
* HDMI 2.1, HDCP 2.3 support
** Native HDMI 2.1 TMDS ports
(Graphics spec may vary depending on CPU) |
| Audio | - Realtek® Audio CODEC
- High Definition Audio, 2/4/5.1/7.1-channel
* Audio jack functions customizable via software
- S/PDIF Out supported |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU:
- 1 x PCIe x16 (PCIe 4.0, runs at x16)
* Supports only GPU or NVMe SSD
Chipset:
- 1 x PCIe x1 (PCIe 3.0, runs at x1) |
| Storage Interface | CPU:
- 1 x M.2 (2280, PCIe 4.0 x4/x2) - M2A_CPU
Chipset:
- 1 x M.2 (2280, PCIe 4.0 x4/x2) - M2P_SB
- 4 x SATA 6Gb/s
- RAID 0, 1, 5, 10 supported for SATA |
