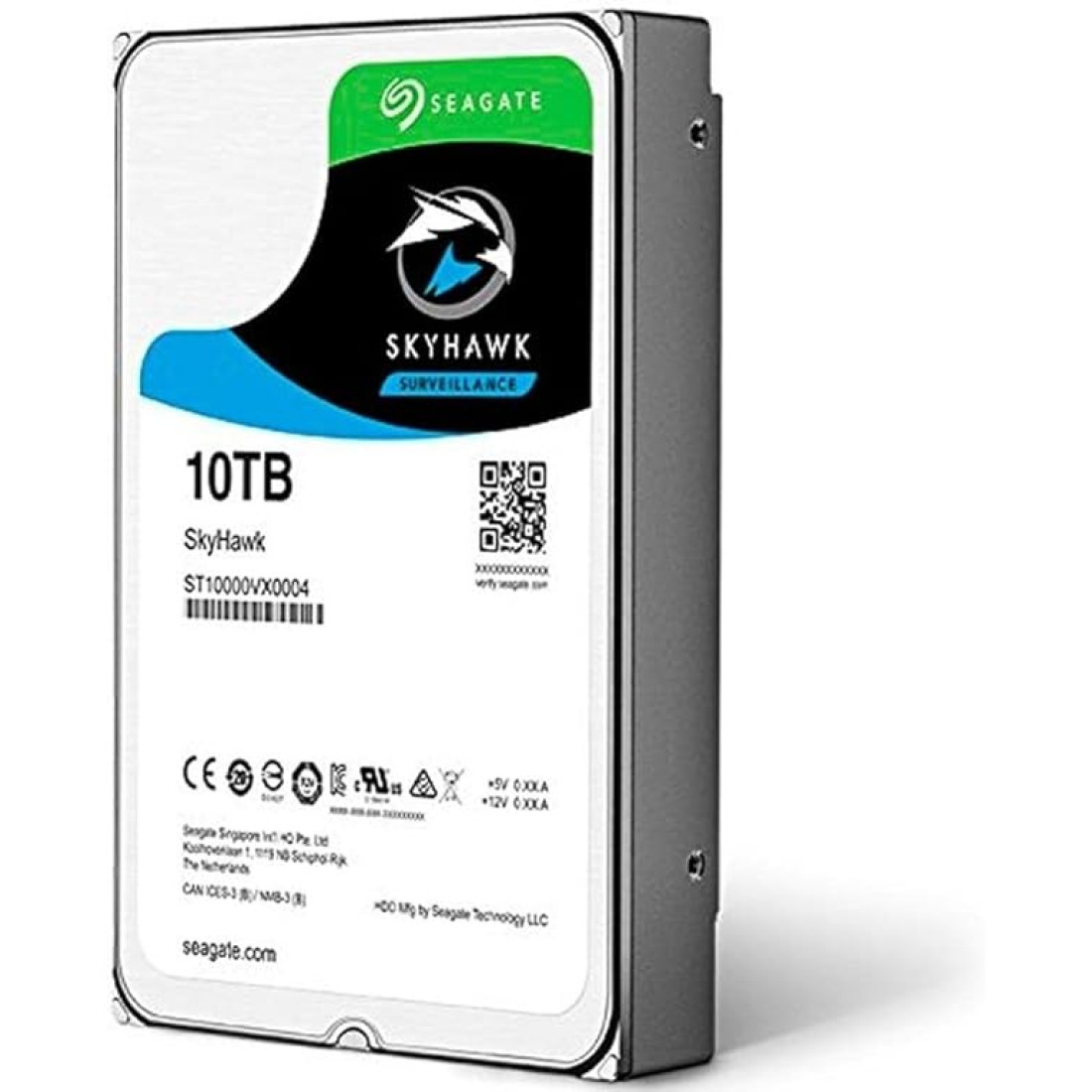

| Standard Model Number | ST10000VX |
| Interface | SATA 6Gb/s |
| Drive Bays Supported | 8+ |
| Cameras Supported | Up to 64 |
| Max Sustained Transfer Rate OD (MB/s) | 210 |
| Cache (MB) | 256 |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8,760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1,000,000 hr |
| Warranty, Limited (years) | 3 |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 6.8 |
| Idle Average (W) | 4.42 |
| Standby Mode/Sleep Mode, Typical (W) | 0.8/0.8 |
| Operating Temperature (ambient, min °C) | 5 |
| Operating Temperature (drive case, max °C) | 70 |
| Nonoperating (ambient, min °C) | -40 |
| Height (mm/in, max) | 26.11 mm / 1.028 in |
| Width (mm/in, max) | 101.85 mm / 4.01 in |
| Depth (mm/in, max) | 146.99 mm / 5.787 in |
| Weight (g/lb, typical) | 650 g / 1.433 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40 / 8 |
