| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Storage | 1x M.2M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

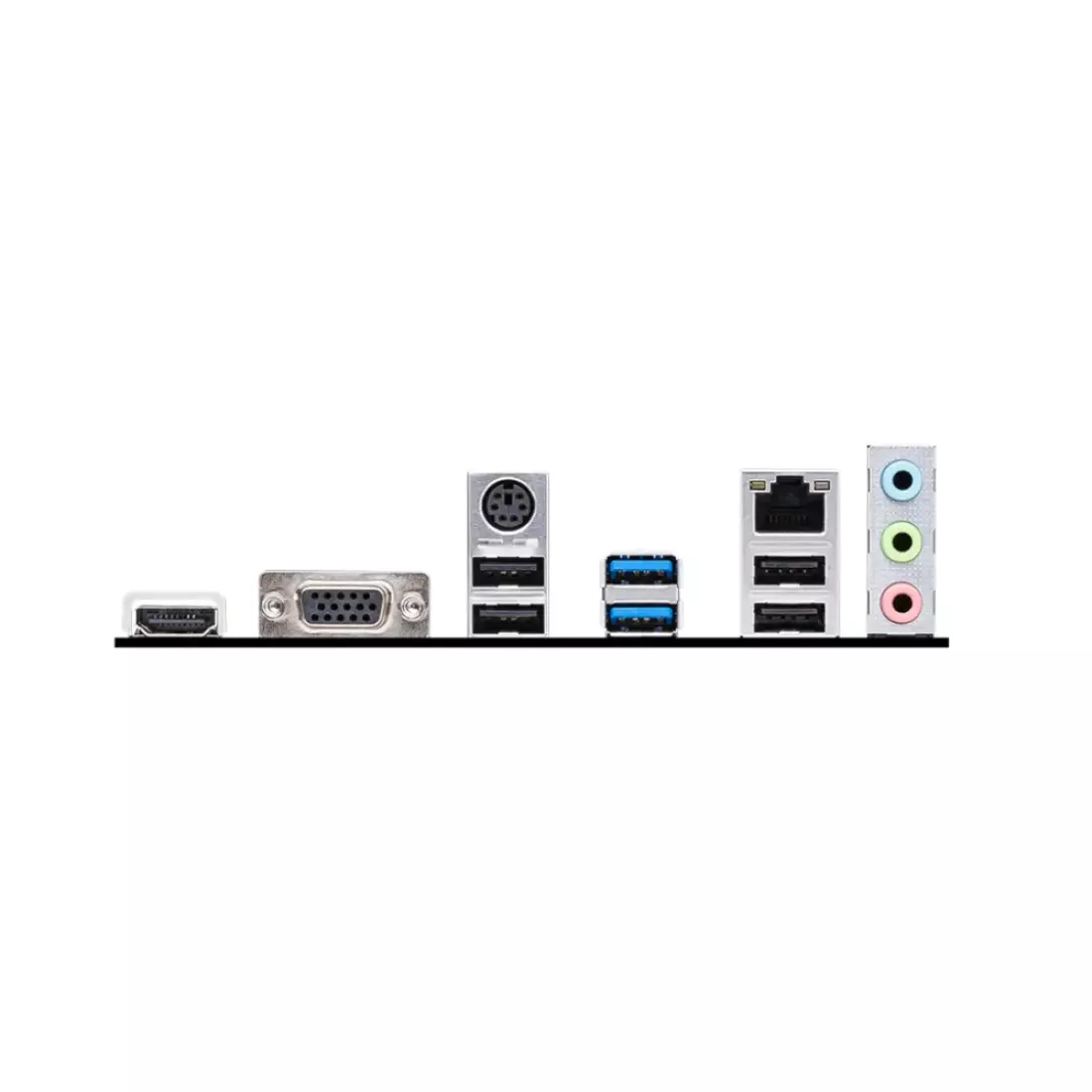

| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector (ATX_PWR)1x Power Connector (CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector (JRGB)1x TPM pin header (Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports |
