| Resolution | 800 × 480 |
| Stream Resolution | 960 × 576 |
| Lens | 1/2.7" CMOS |
| Field of View (FOV) | Horizontal: 66.2°, Vertical: 37.2° |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| I/O Output | 1 relay output |
| Four-wire | 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding) |
| Power Supply | 12 VDC |
| Power Consumption | ≤5 W |
| Working Temperature | -10° C to +55° C (14° F to 131° F) |
| Working Humidity | 10% to 90% |

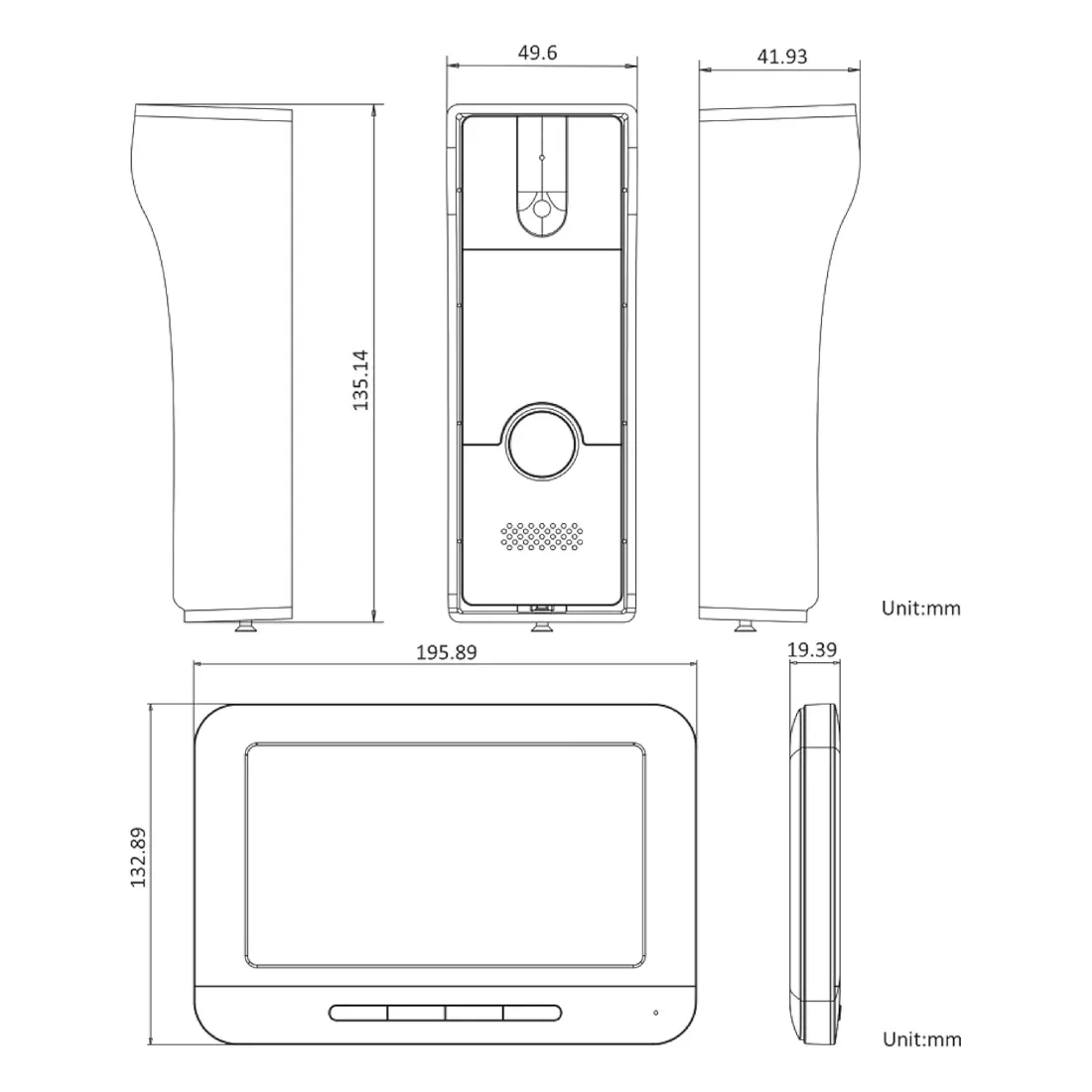

| Dimensions | 128 mm × 42 mm × 24.8 mm |
| Operation Method | Physical button |
| Type | 7-inch colorful TFT LCD |
| Audio Quality | Noise suppression and echo cancellation |
| Dimensions (W × H × D) | 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" × 0.7") |
