| Brand | HI focus |
| Model | HF-EL280-2 |
| Material | Aluminium |
| Connecting Technology | Wired |
| Best Used With | Biometric Access Control, Time Attendance System |
| Lock Size | 250L x 42W x 25H (mm) |
| Suitable For | Wooden door, Metal door, Glass door, Fireproof door |
| Locking Mechanism | Magnetic Power |
| Holding Force | 280 kg (600 lbs) |
| Voltage | Field Selectable - 12VDC / 24VDC |
| Current | 12V / 450mA, 24V / 200mA |
| Surface Temperature | ≤+20°C |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |

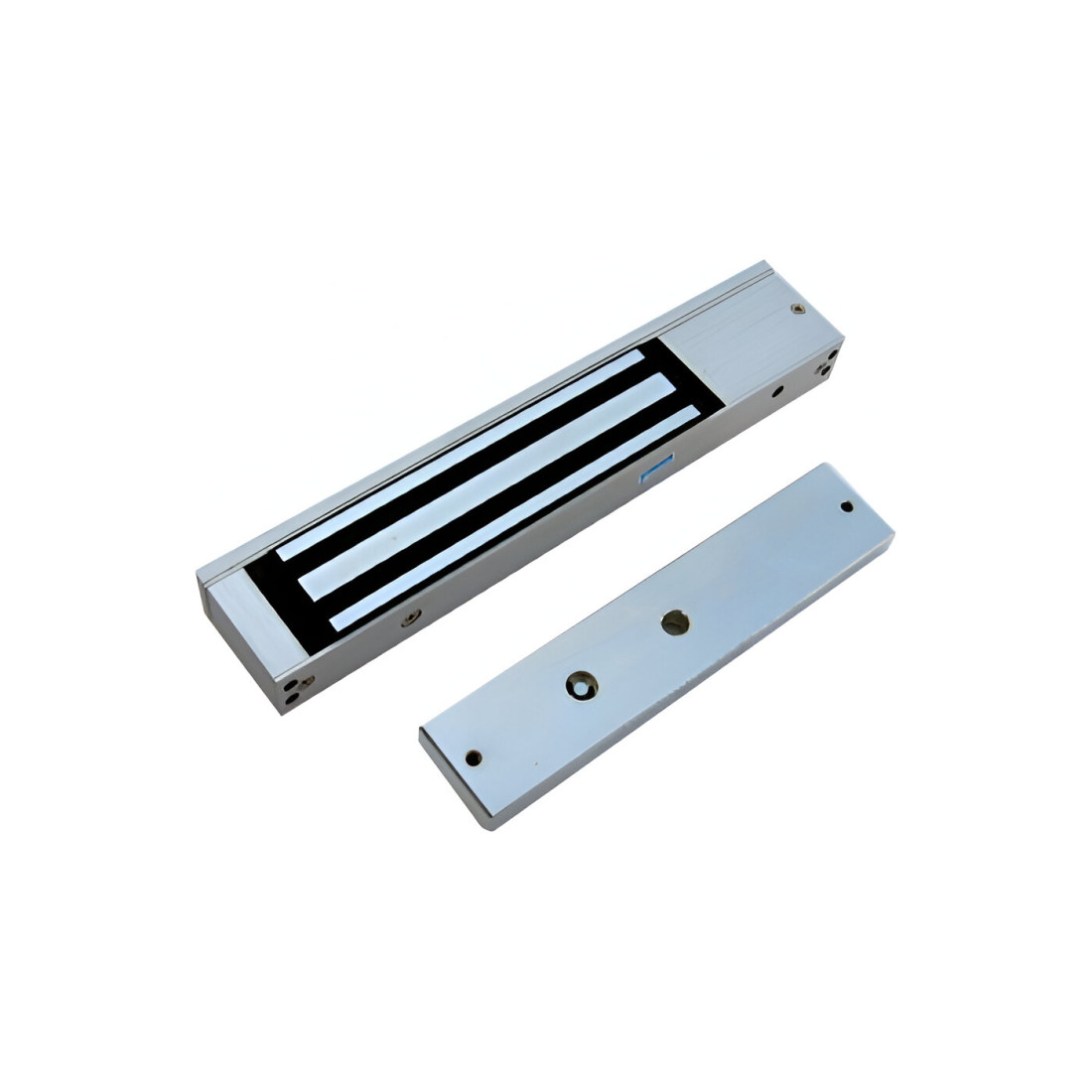

| Additional Features | Built-in reverse current protection device (MOV)High-strength aluminium shell with hard anodized finishIncludes electromagnetic lock, armature plate, installation hardware, template, and guide |
