Gigabyte B760M D2H DDR5 Motherboard For INTEL 12th | 13th Gen
Product Dispatch within 24-96 Hours₹9505.00
(All Inclusive Taxes)
| Product Code | G4228 |
| Brand | GIGABYTE |
Cash on Delivery (COD) facility is now available.
| Model | B760M D2H |
| Warranty | 3 Years From GIGABYTE Service Center |
| Product URL | View Product |
About This Product

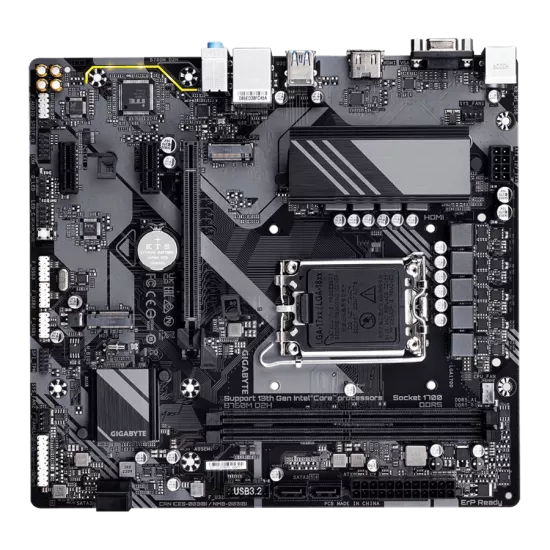

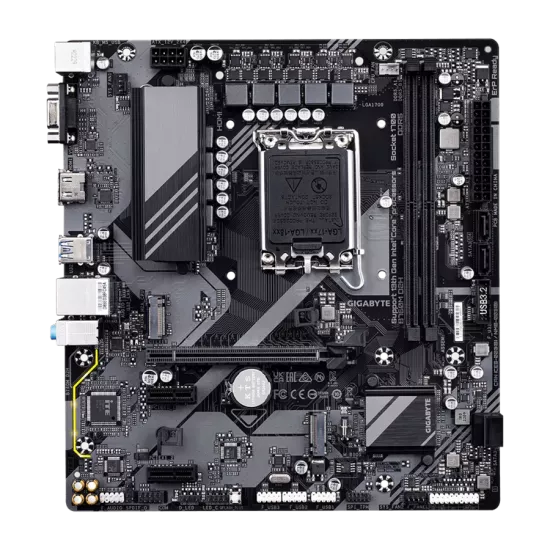

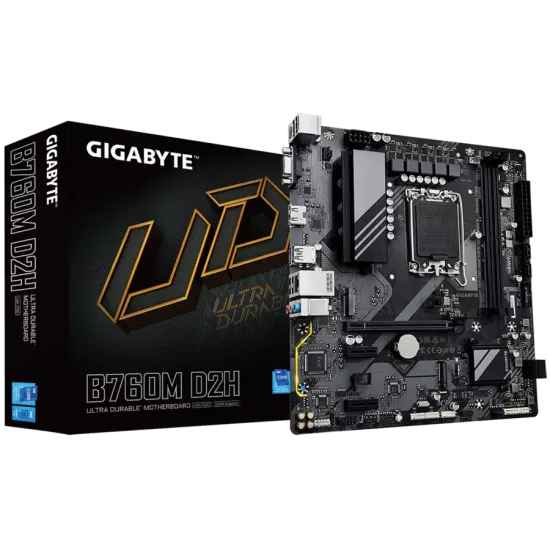

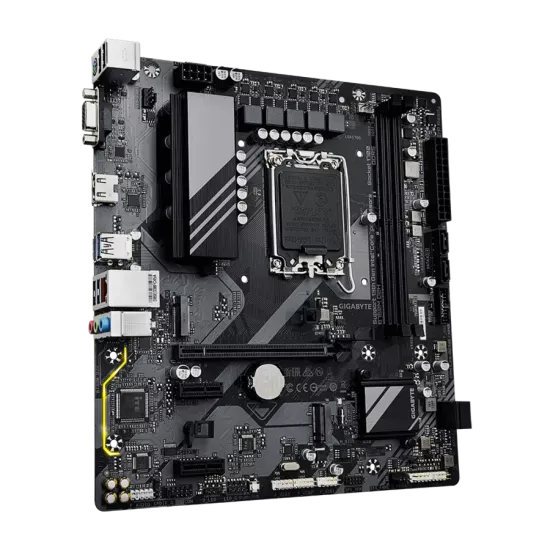

Gigabyte B760M D2H DDR5 Motherboard For Intel 12th | 13th Gen is a high-performance micro ATX motherboard built on the Intel B760 chipset, supporting 12th and 13th generation Intel processors. It features dual-channel DDR5 memory support for next-generation speed and efficiency, along with dual M.2 NVMe slots for ultra-fast storage. With robust power delivery, 2.5GbE LAN, and advanced cooling options, it ensures stable performance for gaming and professional use. Available at Golchha Computer, this motherboard delivers exceptional reliability, expandability, and performance for modern PC builds.
⚙️ Intel B760 Motherboard Specifications (LGA1700 Socket | DDR5 | PCIe 4.0)
| Component | Description |
|---|---|
| CPU | LGA1700 socket supporting Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. L3 cache varies with CPU model. |
| Chipset | Intel B760 Express Chipset |
| Memory |
Supports DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s. 2 × DDR5 DIMM sockets supporting up to 128GB (64GB per DIMM), Dual Channel. Supports ECC and non-ECC Un-buffered DIMMs, Intel® XMP profiles, and OptiMem II technology for improved stability. |
| Onboard Graphics |
Integrated Intel® HD Graphics support: • 1 × D-Sub port (max 1920x1200@60Hz) • 1 × HDMI port (max 4096x2160@60Hz, HDMI 2.1 & HDCP 2.3 support) * Graphics capabilities depend on CPU model. |
| Expansion Slots |
CPU: 1 × PCIe 4.0 x16 Slot (for GPU / NVMe SSD) Chipset: 2 × PCIe 3.0 x1 Slots for add-on cards. |
| Storage Interface |
CPU: 1 × M.2 PCIe 4.0 x4/x2 Slot (NVMe SSD Support) Chipset: 1 × M.2 PCIe 4.0 x4/x2 Slot + 4 × SATA 6Gb/s Ports Supports RAID 0, 1, 5, and 10 for SATA devices. |
| USB Ports |
• 6 × USB 3.2 Gen1 (4 rear, 2 internal) • 8 × USB 2.0/1.1 ports (4 rear, 4 internal via headers) |
| Internal I/O Connectors |
24-pin ATX + 8-pin 12V Power Connectors 1 × CPU Fan, 2 × System Fan, RGB & ARGB Headers 2 × M.2 Slots, 4 × SATA Ports, Front Audio & USB Headers TPM Header, COM Port, Q-Flash Button, Clear CMOS Jumper. |

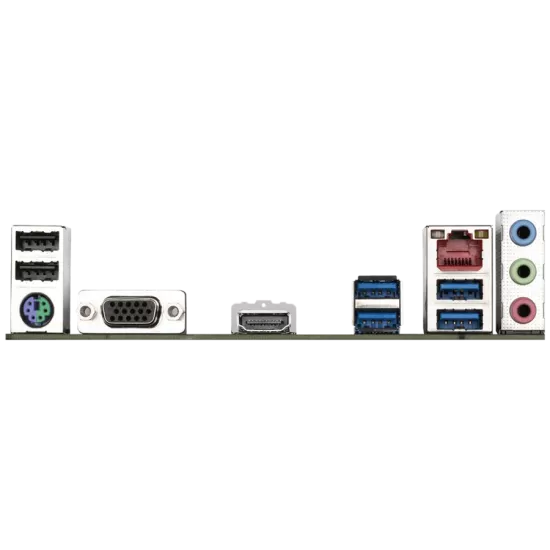

| Back Panel I/O |
1 × PS/2 Keyboard/Mouse Port 1 × D-Sub, 1 × HDMI Port 4 × USB 3.2 Gen1, 2 × USB 2.0 Ports 1 × RJ45 LAN, 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip for advanced power and device management |
| H/W Monitoring | Voltage, Temperature, Fan Speed, and Water Cooling Flow Rate Detection with Fan Control and Failure Warning |
| BIOS | 128Mbit AMI UEFI BIOS with Q-Flash Plus support, PnP 1.0a, DMI 2.7, SM BIOS 2.7, and ACPI 5.0 compliant |
| Build Quality | High-end PCB layout with enhanced thermal design, reinforced PCIe slots, and surge-protected power delivery for maximum reliability |
✅ The Intel B760 Motherboard combines the latest technologies and premium build for Intel’s 14th, 13th, and 12th Gen CPUs. Featuring DDR5 8000+ MHz memory support, PCIe 4.0 expansion, and dual M.2 NVMe slots, it delivers unmatched performance and stability. Ideal for gaming, content creation, and professional desktop setups requiring high efficiency and long-term reliability.
